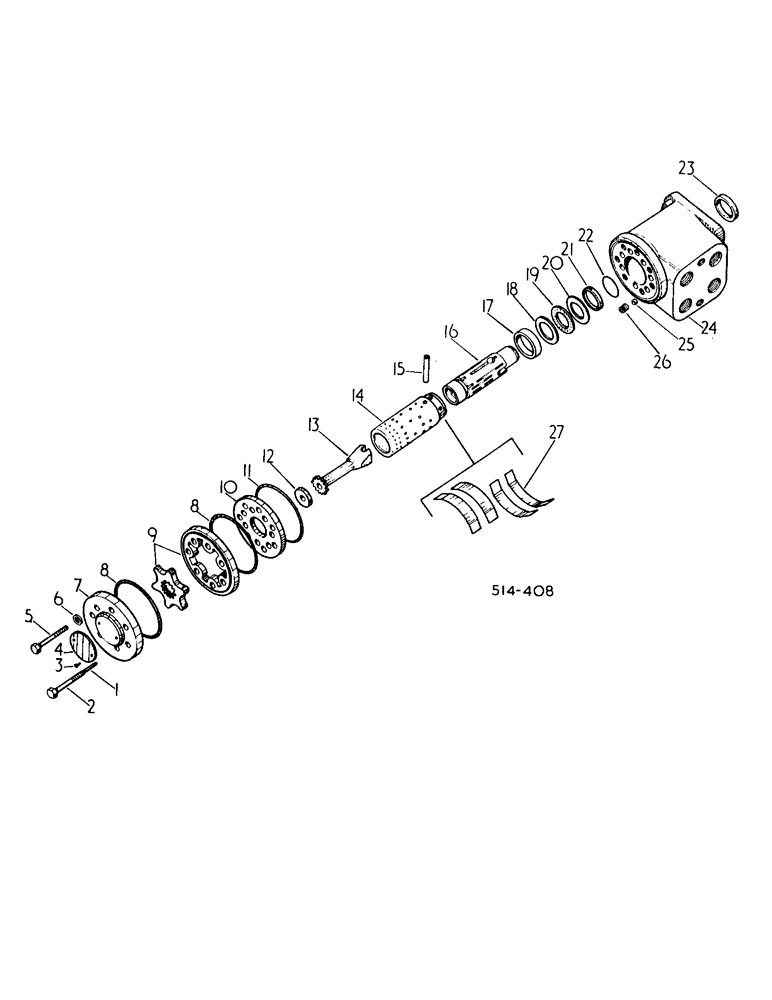

Запчасти Case IH 584 (10-20) - INTEGRAL HYDROSTATIC POWER STEERING VALVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
67698C92
HYDRAULIC VALVE
VALVE ASSY, integral power steering
1шт.
1
3112271R1
PIN, ROLL
ed
1шт.
2
NSS
NOT SOLD SEPARAT
SCREW
1шт.
3
217910
SCREW
2шт.
4
NSS
NOT SOLD SEPARAT
PLATE, rating, not serviced separately
1шт.
5
3146908R1
BOLT,M8 x 1 x 35mm
plain
6шт.
5
3146907R1
BOLT,M8 x 1 x 35mm, Drilled
driller
1шт.
6
NSS
NOT SOLD SEPARAT
WASHER, order seal & spring package 1500443C91
7шт.
7
1500444C1
CAP
end
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING, order seal and spring package 1500443C91
2шт.
9
538918R1
ROTOR ASSY.
SET, rotor, consists of items 12 and 13
1шт.
10
3112276R1
PLATE
valve
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING, order seal and spring package 1500443C91
1шт.
12
538916R1
SPACER
1шт.
13
538915R1
DRIVE SHAFT
DRIVE
1шт.
14
SLEEVE, not serviced separately
1шт.
15
3112269R1
PIN
cross
1шт.
16
SLEEVE, not serviced separately
1шт.
17
3112264R1
RING
1шт.
18
NSS
NOT SOLD SEPARAT
RACE, bearing, order bearing assy 3234338R91
1шт.
19
NSS
NOT SOLD SEPARAT
BEARING, needle, order bearing assy 3234338R91
1шт.
20
NSS
NOT SOLD SEPARAT
WASHER, axial, order bearing assy 3234338R91
1шт.
21
NSS
NOT SOLD SEPARAT
RING, kin, order seal and spring package 1500443C91
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING, order seal and spring package 1500443C91
1шт.
23
NSS
NOT SOLD SEPARAT
RING, seal, order seal and spring package 1500443C91
1шт.
24
NSS
NOT SOLD SEPARAT
HOUSING, consists of items 14 and 16, not serviced separately
1шт.
25
3112270R1
BALL
steel
1шт.
26
3112272R1
BUSHING
threaded
1шт.
27
NSS
NOT SOLD SEPARAT
SPRING, leaf, order seal & spring package 1500443C91
4шт.
3234338R91
BEARING SET
ASSY, consists of items 18, 19 and 20
1шт.
1500443C91
SEAL KIT
PACKAGE, seal & spring service consists of ring, dust seal (NSS), seal, lip (NSS), o-ring (NSS), o-ring (NSS), (2) o-ring (NSS), (7) washer (NSS), (2) spring, leaf (NSS), (2) spring, leaf (NSS)
1шт.
Выбрано товаров: 31
