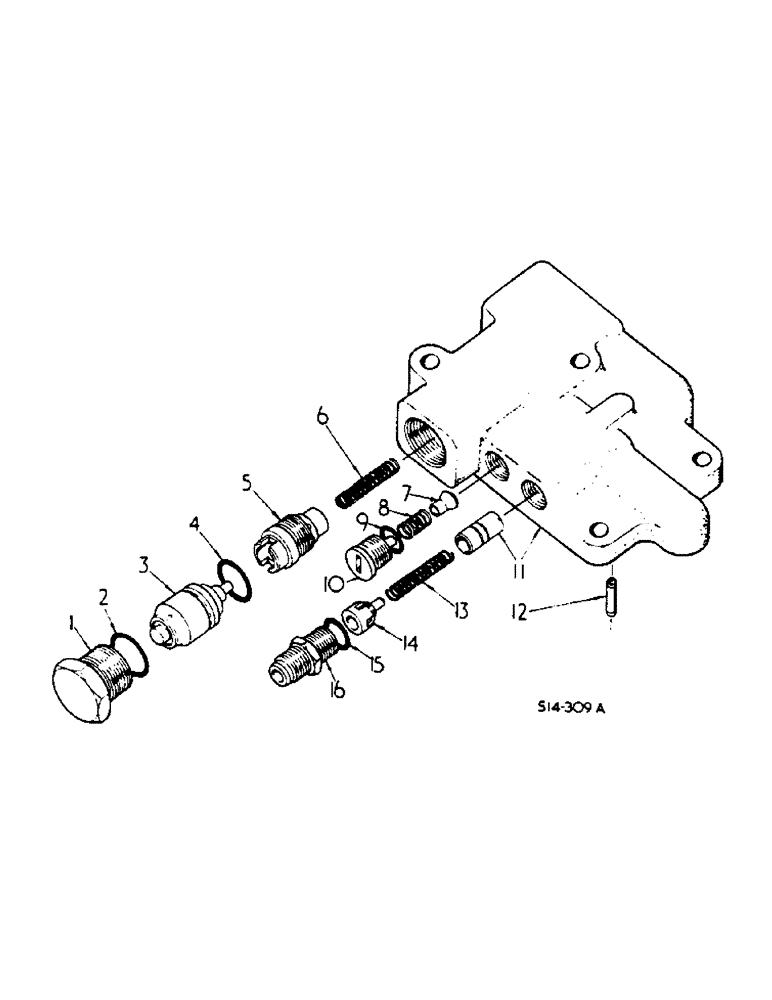

Запчасти Case IH 584 (10-19) - UNLOADING AND FLOW CONTROL VALVE (07) - HYDRAULICS

59098C93

VALVE

ASSY, unloading and flow control

1шт.

1

545494R2

PLUG

unloading valve

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. O.D. tube

1шт.

3

376762R11

PISTON ASSY.

PISTON ASSY, unloading valve

1шт.

4

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

5

530138R1

BODY

ASSY, unloading valve

1шт.

6

530141R1

SPRING

unloading

1шт.

7

389587R3

CHECK VALVE

VALVE, check poppet

1шт.

8

535547R1

SPRING

check poppet

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

10

399851R1

PLUG

check valve

1шт.

11

NSS

NOT SOLD SEPARAT

BODY AND SPOOL, unloading and flow control valve, not serviced separately

1шт.

12

617057R1

PIN,1/4" x 1", Coiled

1шт.

13

530142R1

SPRING

flow control valve

1шт.

14

58367C1

GUIDE

spring

1шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 znd 37 deg hyd flared tube short swivel

1шт.
