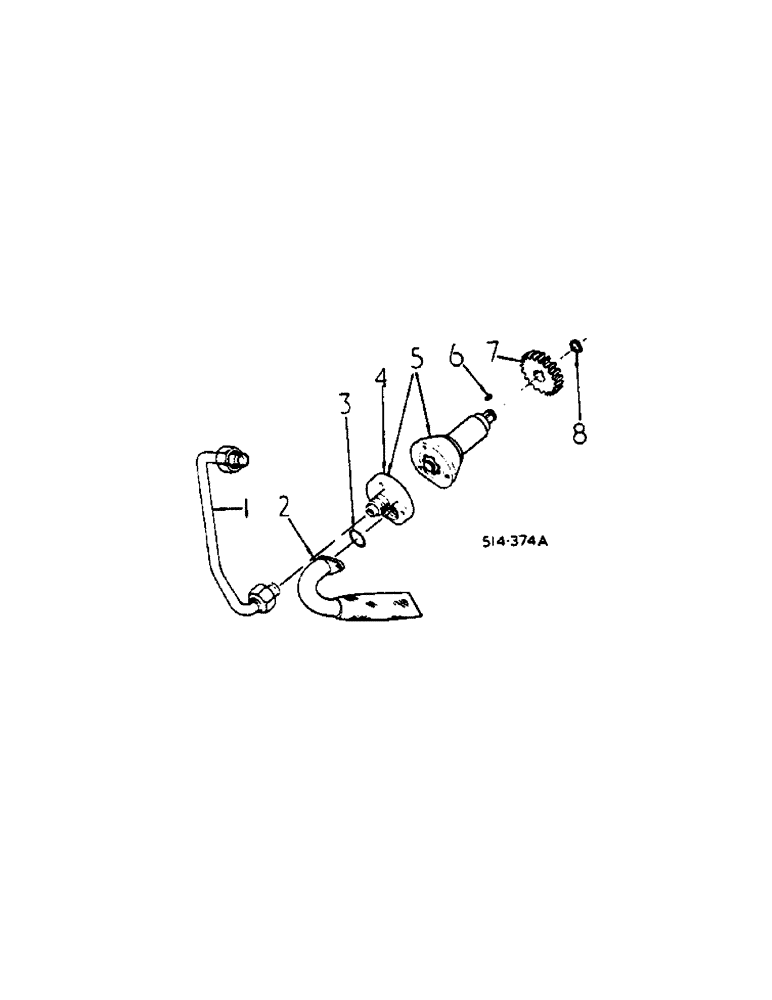

Запчасти Case IH 584 (10-07) - HYDRAULIC LUBE PUMP (07) - HYDRAULICS

1

527423R1

PRESSURE PIPE

PIPE ASSY, transfer pump outlet

1шт.

2

529099R1

SUCTION PIPE

TUBE, transfer pump suction

1шт.

Used w/pump 528504R91

1шт.

3

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 x 1/16

1шт.

Used w/pump 528504R91

1шт.

4

529275R2

PLATE

end

1шт.

Used w/pump 528504R91

1шт.

5

528504R91

PUMP

ASSY, transfer, Wraxall

1шт.

5

3123726R91

PUMP, HYDRAULIC

PUMP ASSY, transfer, Hailwood

1шт.

3123727R1

PLATE

end

1шт.

1282191C1

STRAINER ELEMENT

STRAINER

1шт.

527424R1

SCREW

transfer pump retaining

2шт.

6

529100R1

BUCKET TOOTH KEY

KEY, transfer pump

1шт.

7

528095R1

PINION

GEAR, transfer pump driven, 21T

1шт.

8

3042123R1

RING, SNAP

RING, driven gear retaining snap

1шт.
