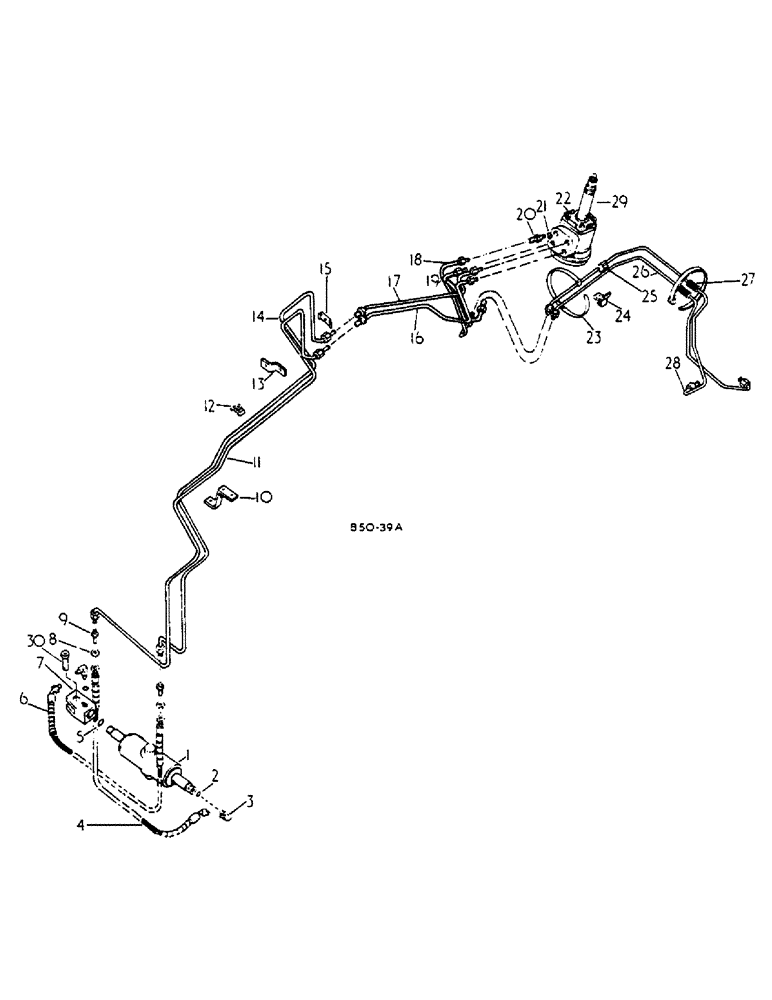

Запчасти Case IH 584 (10-03) - POWER STEERING, TRACTORS WITH ADJUSTABLE FRONT AXLE AND CAST BOLSTER (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
549667R93
STEERING CYLINDER
CYLINDER ASSY, hyd power steering
1шт.
84336125R
REMAN-HYD CYLINDER
584 (1/77-12/81), Reman for New P/N 549667R93
1шт.
84336125C
CORE-HYD CYLINDER
Return Number
1шт.
55355C91
GASKET KIT
KIT, o-ring & seal service see parts catalog cyl-1 for service parts
1шт.
2
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube
2шт.
3
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
9/16-18 C-Z 37 deg hyd flared
2шт.
4
3121235R1
HOSE
ASSY, power steering cylinder
1шт.
6
3121235R1
HOSE
ASSY, power steering cylinder
1шт.
7
549670R2
CLEVIS,3/4" - 16
cyl end 3/4 thread, Serial Range: -3832
1шт.
P/N 9410976 elbow and 364839R1 O-Ring go into this cylinder end clevis.
1шт.
7
3125306R1
CLEVIS,9/16" - 18
cylinder end, Start Serial: 3833
1шт.
P/N 9410976 elbow and 364839R1 O-Ring go into this cylinder end clevis.
1шт.
8
9403293
LOCK NUT,Blkhd, 9/16"-18
NUT, 9/16-18 C-Z bulkhead union lock
2шт.
9
9403254
FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
UNION, 9/16-18 C-Z 37 deg hyd flared tube bulkhead
2шт.
115553
LOCK WASHER,Int Tooth, 5/8"
WASHER, LOCK, Int Tooth, 5/8"
2шт.
10
529646R1
BRACKET
front manifold support
1шт.
9635082
NUT,5/16" - 18, Gr 5
1шт.
11
66109C1
PIPE
TUBE ASSY, power steering RH forward
1шт.
12
384891R11
CLAMP
ASSY, power steering tube
1шт.
179795
TILLAGE BLADE
1/4 x 3/4 pln type 5
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
13
529642R1
BRACKET
front manifold
1шт.
109084
NUT,1/4"-20, G5
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
14
66107C1
PIPE
TUBE ASSY, power steering LH forward
1шт.
15
529644R11
CLAMP
ASSY, power steering tube
1шт.
NLS
NO LONGER SERVICED
1/4 x 7/8 pln type 5
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
95-11028
WASHER,1/4"
.281 x .625 x .051 pln
1шт.
16
3116268R3
TUBE ASSY.
TUBE ASSY, power steering RH rear
1шт.
17
3116267R1
TUBE ASSY.
TUBE ASSY, power steering LH rear
1шт.
18
3116272R2
TUBE ASSY.
TUBE ASSY, power steering return forward
1шт.
19
3116271R2
TUBE ASSY.,0.375" OD, 12.44, 4.28" Length
TUBE ASSY, power steering pressure forward
1шт.
20
587639R1
HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring
CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht
4шт.
21
570829R1
O-RING, 1/2 OD tube
4шт.
22
VALVE ASSY, integral power steering, for components see list of parts under details of integral hydrostatic steering valve
1шт.
23
306132C1
CABLE TIE,14.5" L
STRAP, rear manifold tubes
2шт.
24
529638R1
BRACKET
rear manifold
1шт.
25
529637R2
GUIDE
manifold tube
1шт.
26
66105C1
TUBE ASSY.
TUBE ASSY, power steering pressure rear, Z pattern shift
1шт.
26
1502293C1
TUBE
ASSY, power steering pressure rear, H pattern shift, replaces 1500683C1 & 3129256R1, also order check valve 57577C1
1шт.
57577C1
CHECK VALVE
VALVE, check
1шт.
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6
1шт.
3129261R1
BRACKET
pipe retaining
1шт.
27
536009R1
FUEL HOSE,0.31" ID x 2.50"
Spacer 0.31" ID x 2.50"
2шт.
28
66104C1
PIPE
TUBE ASSY, power steering return rear, Z pattern shift
1шт.
28
3129257R1
TUBE ASSY.
TUBE ASSY, power steering return rear, H pattern shift
1шт.
29
3121187R91
SHAFT
steering w/nut
1шт.
367576R1
NUT, hex.
1шт.
660200R1
SPACER,10.7mm ID x 17.14mm OD x 9.5mm L
2шт.
179835
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
2шт.
30
67488C2
PIN
power steering cyl, Serial Range: -3832
1шт.
30
3125305R1
PIN
power steering cylinder, Start Serial: 3833
1шт.
432-1620
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1 1/4"
1шт.
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, 3/16 hole lub
1шт.
9410280
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
3/8 C-Z hyd fld 90d swivel, tractors w/swept back axle, installed on elbow 9410976 on LH end of cyl rod to position hose in axle slot
1шт.
Выбрано товаров: 57
