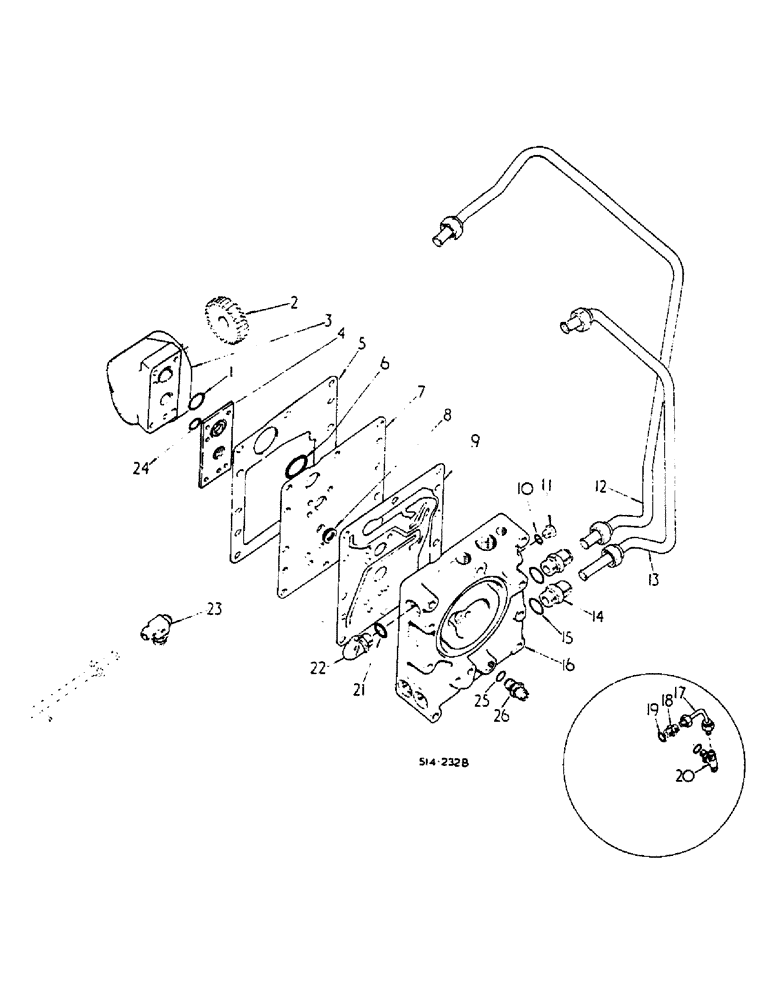

Запчасти Case IH 584 (10-01) - HYDRAULIC POWER SUPPLY AND MULTIPLE CONTROL VALVE (07) - HYDRAULICS

1

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 x 3/32, pump suction port

1шт.

2

544908R1

GEAR

hyd pump driven, 21T, 15 GPM pump

1шт.

2

406764R1

PINION

GEAR, hyd pump driven, 27T, 12 GPM pump

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-NF p/t lock type 5

1шт.

2

110523C1

GEAR

hydraulic pump driven, 23T, 17 GPM pump

1шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8-NF p/t lock type 5

1шт.

3

128180C91

PUMP, HYDRAULIC

PUMP ASSY, hyd gear, 200900LAD, Cessna, replaces 67248C91

1шт.

3

84573150R

REMAN-HYD PUMP

584 INTERNATIONAL TRACTOR (NORTH AMERICA), PUMP ASSY, hyd gear, 200900LAD, Cessna (1/77-12/81), Reman for New PN 128180C91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

373244R91

SEAL

SEAL, pump shaft oil

1шт.

371523T1

SPRING, ball check

1шт.

16007R1

BALL

7/32

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

3

406763R92

HYDRAULIC PUMP

PUMP ASSY, hyd gear, 12 GPM, Plessey

1шт.

3

84573150R

REMAN-HYD PUMP

584 INTERNATIONAL TRACTOR (NORTH AMERICA), PUMP ASSY, hyd gear, 12 GPM, Plessey (1/77-12/81), Reman for New PN 406763R92

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

3

66513C92

PUMP, HYDRAULIC

PUMP ASSY, hyd gear, 15 GPM, Plessey, tractors with IPTO

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

179830

2шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

2шт.

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

suction port

1шт.

3125816R1

LENS

WASHER, pump mounting bolt

4шт.

3

110509C91

PUMP

ASSY, hyd gear, 17 GPM

1шт.

3

84573150R

REMAN-HYD PUMP

584 INTERNATIONAL TRACTOR (NORTH AMERICA), ASSY, hyd gear, 17 GPM (1/77-12/81), Reman for New PN 110509C91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

4

544909R2

LARGE PLATE

PLATE, pump mounting, 15 GPM pump

1шт.

5

401736R3

GASKET

multiple control valve HV

1шт.

6

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 x 1/8 inlet port

1шт.

7

405458R2

LARGE PLATE

PLATE, multiple control valve

1шт.

8

387926R2

RING

rectangular

1шт.

9

65000C3

GASKET

multiple control valve body

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

11

9410356

PLUG

7/16-20 str thd o-ring boss

1шт.

12

66761C1

TUBE ASSY.

TUBE ASSY, draft control return

1шт.

13

66764C1

PIPE

TUBE ASSY, multiple control valve by-pass

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

16

57714C95

VALVE

ASSY, multiple control for components see heading multiple multiple control valve

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8 x 3-3/4 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

17

539835R1

TUBE ASSY.

TUBE ASSY, IPTO pressure, tractor w/IPTO

1шт.

18

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 C-Z 37 deg hyd flared tube short swivel, tractors w/IPTO

1шт.

19

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Tractors with IPTO

2шт.

20

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

7/16-20 C-Z 37 deg hyd flared tube

1шт.

9403369

CAP,37 Degree, 7/16"-20

1/4 hyd flared tube, tractors w/IPTO

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

22

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.

23

534773R3

ELBOW

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

24

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 x 3/32, pump pressure port

1шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

26

57577C1

CHECK VALVE

VALVE, check

1шт.

73234C91

PACKAGE,SERVICE

KIT, o-ring & gasket, for pump 128180C91

1шт.

67249C91

SEAL KIT

KIT, o-ring & gasket, for pump 67248C91

1шт.

1502030C1

SEAL KIT

PACKAGE, seal kit, replaces 534262R91, for pumps 66513C92 & 406763R92

1шт.

70230C1

SEAL KIT

KIT, seal pack, for pump 66513C92

1шт.

69355C1

SEAL

hydraulic pump, used w/pump 66513C92

1шт.

69354C1

SEAL

hydraulic pump, used w/pump 67248C91 and 110509C91

1шт.

69352C1

SEAL

hydraulic pump, used w/pump 406763R91

1шт.

3123364R1

SEAL

hydraulic pump, used w/pump 128180C91

1шт.

69351C1

GLUE

ADHESIVE, 1 oz tube, synchromesh drive tractors

1шт.

537517R1

WASHER

pump identification

1шт.
