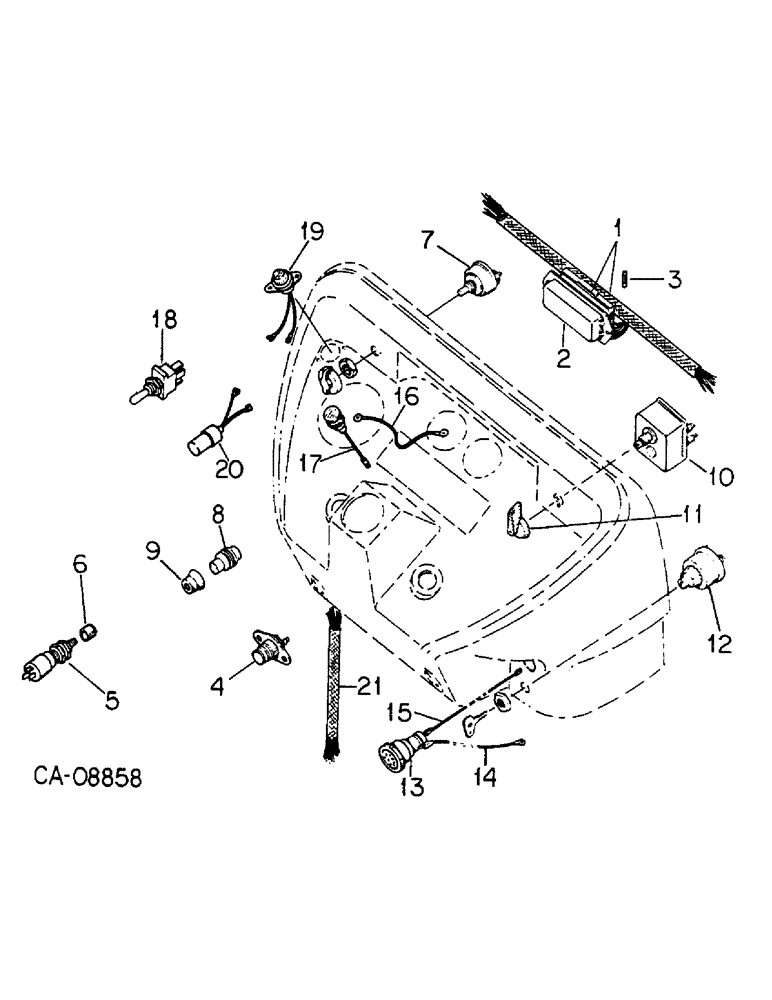

Запчасти Case IH 584 (08-17) - INSTRUMENT PANEL WIRING, SWITCHES AND FUSE BOX (06) - ELECTRICAL

1

3125849R91

HARNESS

ASSY, main cable, Serial Range: -8301

1шт.

1

1500563C93

HARNESS

ASSY, main cable, includes ref no. 2 plus, Start Serial: 8302

1шт.

3123158R1

PACKAGE

alternator plug connections

1шт.

3129948R1

BOX, FUSE

PACKAGE, fuse box

1шт.

2

NSS

NOT SOLD SEPARAT

BOX, fuse, part of main cable assy, only serviceable items are

1шт.

3123724R1

SLEEVE

fuse box

1шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

3123157R1

COVER

LID, fuse box cover

1шт.

3

3115813R1

FUSE

35 amp auto type, horn and ether start, flasher and cigar lighter, lighting

1шт.

3

142630

FUSE

3ag 5 amperes, gauges and warning lights

2шт.

4

397940R93

SWITCH

ether start push-button

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, no. 10 x 3/8 ZNP P/HDS mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

5

529461R93

SWITCH ASSY

park brake warning

1шт.

6

534351R1

COVER

warning light switch

1шт.

7

107200C2

LIGHT SWITCH

SWITCH ASSY, basic lighting

1шт.

8

705266R91

HORN

SWITCH, horn

1шт.

9

1288026C1

COVER

horn switch

1шт.

10

131066C91

SWITCH

turn signal & flasher replaces 107334C91

1шт.

11

71485C1

PACKAGE

KIT, switch handle and hardware

1шт.

12

529800R91

SWITCH ASSY

ignition

1шт.

For more info...switch used with thermostat on non-cab units is 3107556R92" which is a lucas switch.

1шт.

Switches made in India, may need a different key, P/N B508345.

1шт.

3110259R1

KEY

ignition

1шт.

13

3121407R92

LIGHTER, CIGARETTE

LIGHTER, cigar

1шт.

14

3123432R1

CABLE

ASSY, Serial Range: lighter-ground

1шт.

15

1502380C1

CABLE

ASSY, lighter to hazard switch

1шт.

16

3123431R1

CABLE

ASSY, tachometer to fuel gauge ground

1шт.

17

3125084R91

CABLE

ASSY, tachometer illumination

1шт.

18

3125854R1

SWITCH

ASSY, headlight dip

1шт.

19

3125983R1

LIGHT ASSY.

LIGHT ASSY, park brake warning, Start Serial: 5492

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 ZNP P/HDCR mach

2шт.

NLS

NO LONGER SERVICED

.156 x .375 x .036

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

20

3125984R1

FLASHER UNIT

park brake warning, Start Serial: 5492

1шт.

21

3125982R1

HARNESS

ASSY, instrument, Start Serial: 8301

1шт.

21

1500963C1

HARNESS

ASSY, instrument, Start Serial: 8302

1шт.
