Запчасти Case IH 584 (08-15) - TRACTOR LIGHT AND CONNECTIONS, TRACTORS WITH FLAT TOP FENDERS (06) - ELECTRICAL

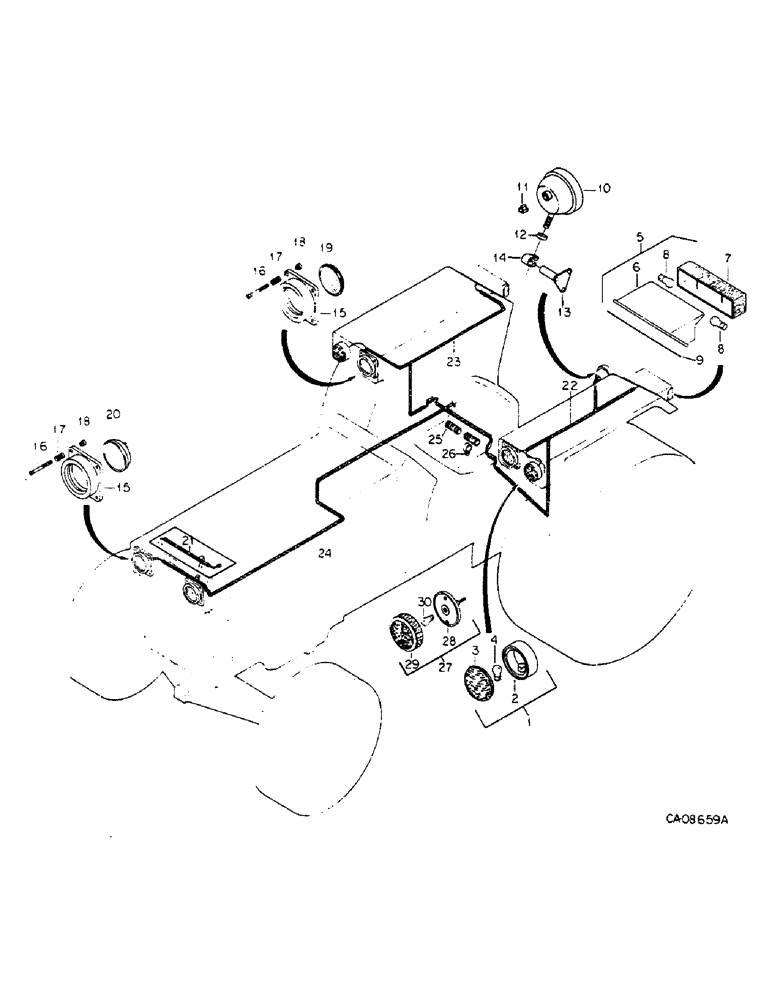

Схема запчастей Case IH 584 - (08-15) - TRACTOR LIGHT AND CONNECTIONS, TRACTORS WITH FLAT TOP FENDERS (06) - ELECTRICAL
5
17
1
18
8
4
11
6
13
12
21
8
29
16
22
23
16
30
28
25
14
9
3
10
24
15
17
19
15
20
18
7
26
27
2

Артикул

Название

Примечание

Количество

1

3123883R91

LIGHT

ASSY, front flasher, K-D Lamp Co. optional w/3129500R91

2шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2 crg type 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

2

NSS

NOT SOLD SEPARAT

BODY, flasher light

1шт.

3

3125166R1

LENS

amber

2шт.

3125167R1

SCREW

lens mounting

4шт.

4

3025210R91

BULB

LAMP, 12v/21w

2шт.

5

3123872R91

INDICATOR LIGHT

LIGHT ASSY, rear flasher LH

1шт.

5

3123873R91

INDICATOR LIGHT

LIGHT ASSY, rear flasher RH

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING, rear flasher

2шт.

3125157R1

WASHER

clinch bolt

3шт.

3125158R1

NUT

clinch bolt

3шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

7

3125161R1

LENS

amber

2шт.

3125156R1

SCREW

lens mounting

4шт.

3112786R1

WASHER

lens screw

4шт.

8

3025210R91

BULB

LAMP, 12v/12w

4шт.

9

3125154R1

CUSHION

rubber mounting LH

1шт.

9

3125155R1

CUSHION

rubber mounting RH

1шт.

10

387729R92

LIGHT ASSY.

LIGHT ASSY, sealed beam combination stop & tail, only serviceable items are

1шт.

455490

BULB,C-6, #1003, 12V, .94W

LAMP, type C-6 trade #1003

1шт.

676078R1

RETAINER

light, midwest

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

3112755R1

CONNECTOR, ELEC

CONNECTOR

1шт.

12

365503R1

SPACER

combination light

1шт.

13

401471R1

POST

ASSY, combination light

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

14

350920R1

CLAMP

combination light

1шт.

15

3121674R1

HOUSING

light unit

4шт.

16

436740

SCREW,Slotted Pan Hd, #10-24 x 2"

no. 10 x 2 ZNP P/HDS mach

16шт.

17

528533R1

SPRING

mtg

16шт.

18

537014R1

INSERT

housing

16шт.

19

390756R91

LAMP

seal beam, worklight

2шт.

20

3072947R91

HEADLIGHT

LAMP, 12 volt head

2шт.

21

3114825R91

HARNESS

ASSY, headlight, if required

1шт.

22

3123679R3

HARNESS

ASSY, fender LH

1шт.

23

3123680R3

HARNESS

ASSY, fender RH

1шт.

24

NSS

NOT SOLD SEPARAT

HARNESS ASSY, main cable, refer to instrument panel wiring listing, this group, for details

1шт.

25

1280346C1

CONDUIT

INSULATION, convolute conduit tractors w/roll-over protective structure

1шт.

26

1280347C1

CLIP

guide, tractors w/roll-over protective structure

6шт.

27

3129500R91

INDICATOR LIGHT

LIGHT ASSY, front flasher, Thorp/Britax optional w/3123883R91

2шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6mm

4шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

4шт.

30281R1

NUT,M6, Cl 10

M6 class 10

4шт.

28

NSS

NOT SOLD SEPARAT

BODY, flasher light

2шт.

29

3129540R1

LENS

amber

2шт.

3129541R1

SCREW

M4 x 45 steel

4шт.

30

3025210R91

BULB

LAMP, 12v/12w

2шт.

Выбрано товаров: 52
