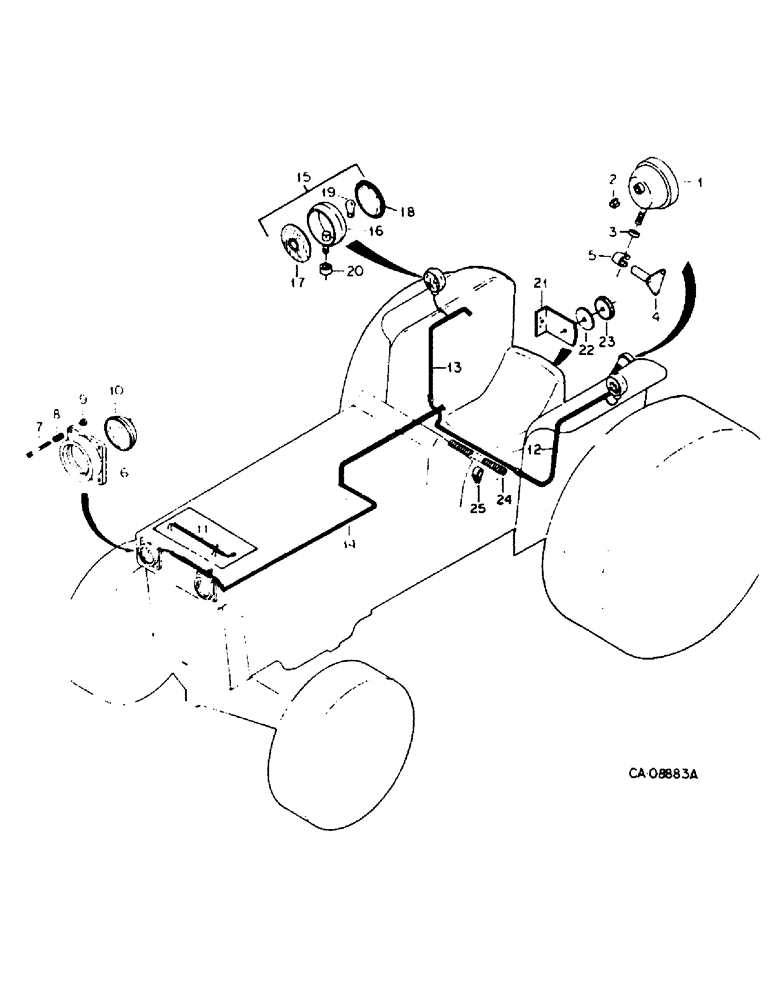

Запчасти Case IH 584 (08-13) - TRACTOR LIGHTING AND CONNECTIONS, TRACTORS WITH CROWN TYPE FENDERS (06) - ELECTRICAL

1

387729R92

LIGHT ASSY.

LIGHT ASSY, sealed beam combination stop & tail, only serviceable items are

1шт.

80627C1

LIGHT ASSY.

LAMP, sealed beam w/bulb includes 142456 replaces 371461R92

1шт.

142456

BULB

LAMP, type C-6 trade #1141

1шт.

676078R1

RETAINER

light, midwest

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

3112755R1

CONNECTOR, ELEC

CONNECTOR

1шт.

3

365503R1

SPACER

combination light

1шт.

4

401471R1

POST

ASSY, combination light

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

5

350920R1

CLAMP

combination light

1шт.

6

3121674R1

HOUSING

light unit

2шт.

7

436740

SCREW,Slotted Pan Hd, #10-24 x 2"

no. 10 x 2 ZNP P/HDS mach

8шт.

8

528533R1

SPRING

mtg

8шт.

9

537014R1

INSERT

HOUSING

8шт.

10

3072947R91

HEADLIGHT

LAMP, 12 volt head

2шт.

11

3114825R91

HARNESS

ASSY, headlight, if required

1шт.

Three-prong connector is part of 3125849R91 harness.

1шт.

12

3123677R1

HARNESS

ASSY, fender LH

1шт.

13

3123678R2

HARNESS

ASSY, fender RH

1шт.

14

NSS

NOT SOLD SEPARAT

HARNESS ASSY, main cable, refer to instrument panel wiring listing, this group, for details

1шт.

15

67538C92

HEADLIGHT

LIGHT ASSY, flasher, complete, 2" diameter, only serviceable item is

2шт.

9417866

BULB,C6, #1156, 12.8V

LAMP, type C-6 trade #1156

2шт.

15

3123675R92

HEADLIGHT

LIGHT ASSY, flasher, for service replacement, order light assy. 67538C92, consists of ref nos 16 thru 19

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING, flasher light

2шт.

899282R1

O-RING

rubber sealing

4шт.

493-21046

LOCK WASHER,Int Tooth, 7/16"

7/16 int tooth lock

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

17

3112682R1

LENS

amber front

2шт.

18

3112683R1

LENS

amber rear

2шт.

19

3025210R91

BULB

LAMP, 12v/21w

2шт.

20

3073103R1

SPACER

light mounting, seat

2шт.

21

3125247R1

BRACKET

reflector

2шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, no. 8 x 1/2 P/HDCR tap

4шт.

22

3112361R1

PAD, reflector

2шт.

171656

SCREW

6 x 1/2 P/HDS tap

1шт.

23

3112360R91

REFLECTOR

red, or

2шт.

23

3118665R1

REFLECTOR

w/cup washer, red

2шт.

3112698R1

WASHER

nylon cup

2шт.

24

1280346C1

CONDUIT

INSULATION, convolute conduit tractors w/roll-over protective structure

1шт.

25

1280347C1

CLIP

guide, tractors w/roll-over protective structure

6шт.

3123175R91

LIGHT ASSY.

LAMP marker, clear lens in front and a red lens in back

1шт.

3112860R1

LENS

red

1шт.
