Запчасти Case IH 584 (08-11) - BATTERY AND CONNECTIONS (06) - ELECTRICAL

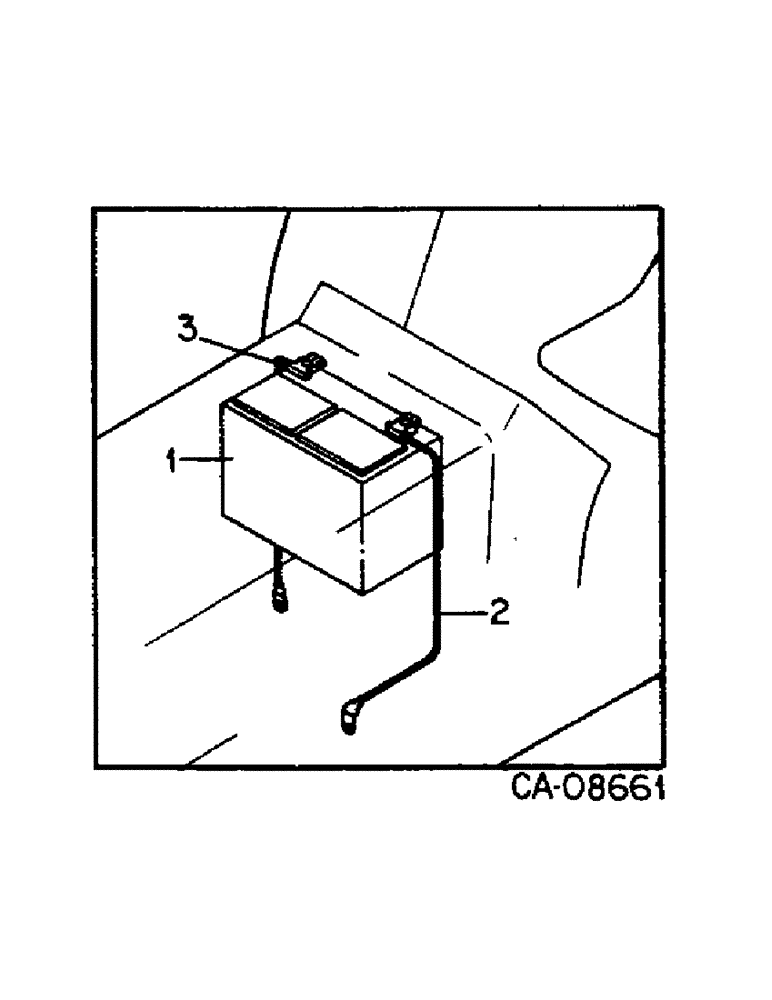

Схема запчастей Case IH 584 - (08-11) - BATTERY AND CONNECTIONS (06) - ELECTRICAL
2
1
3

Артикул

Название

Примечание

Количество

1

IHMF31F

DRY BATTERY

12 volt maintenance free

1шт.

2

528301R1

CABLE ASSY.

CABLE ASSY, battery to starter, used w/starter motor 537140R91

1шт.

2

3125852R1

CABLE

ASSY, battery to starter, used w/starter motor, 3125850R1

1шт.

3

537504R1

CABLE ASSY.

CABLE ASSY, Serial Range: battery-ground

1шт.

3116240R1

CLIP

battery cable

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

no. 8 x 3/8 pln h/hd mach

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

225-10108

NUT,#8-32

Machine screw #8-32

1шт.

Выбрано товаров: 8
