Запчасти Case IH 584 (08-10) - BATTERY TRAY (06) - ELECTRICAL

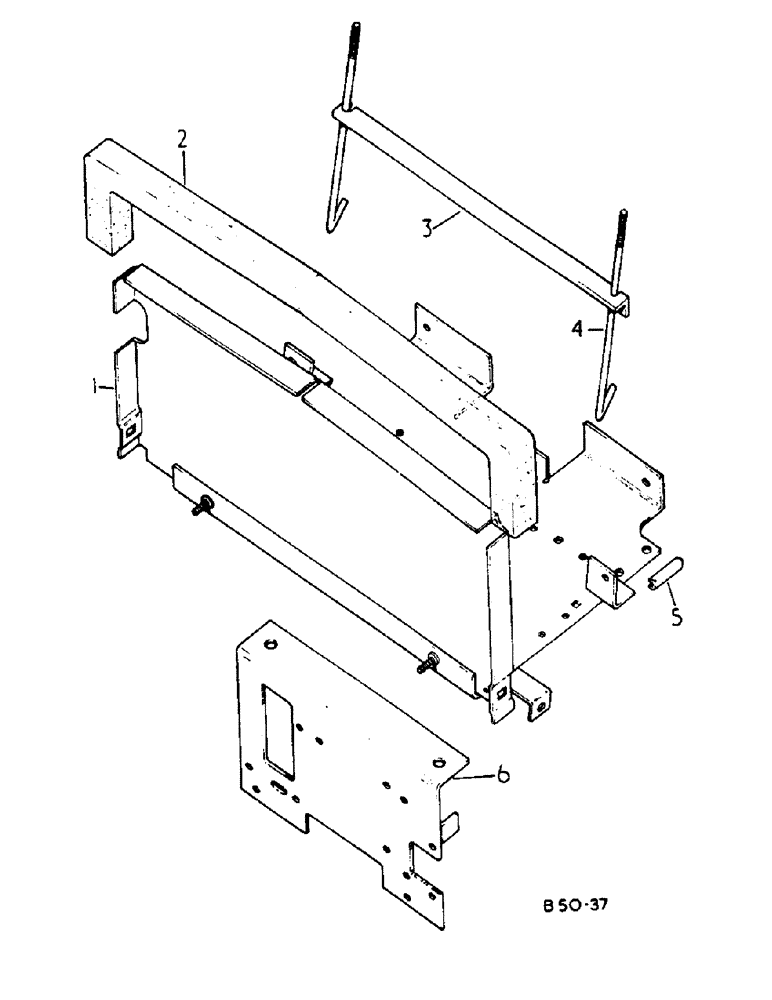

Схема запчастей Case IH 584 - (08-10) - BATTERY TRAY (06) - ELECTRICAL
6
4
2
3
1
5

Артикул

Название

Примечание

Количество

1

3121626R1

TRAY ASSY.

TRAY ASSY, battery

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20893R1

WASHER

.344 x 1.000 x .105

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3121629R1

NUT

retainer, hood

2шт.

2

73217C1

FILLING STRIP

GASKET, battery heat shield, bulk length 4 ft

1шт.

3

3121178R1

BRACKET

battery hold down

1шт.

4

527605R3

ROD

battery hold down, replaces 529968R2

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

3113841R1

MOLDING

edge

1шт.

6

3123057R2

SUPPORT ASSY.

SUPPORT ASSY, battery tray

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

Battery ground cable 3/8"-16, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

Power steering pipe clamp 1/4"-20, G5

1шт.

3125823R1

CLIP

cable

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Service main cable harness to battery tray 1/4"

1шт.

Выбрано товаров: 26
