Запчасти Case IH 584 (08-08) - CRANKING MOTOR, LUCAS (06) - ELECTRICAL

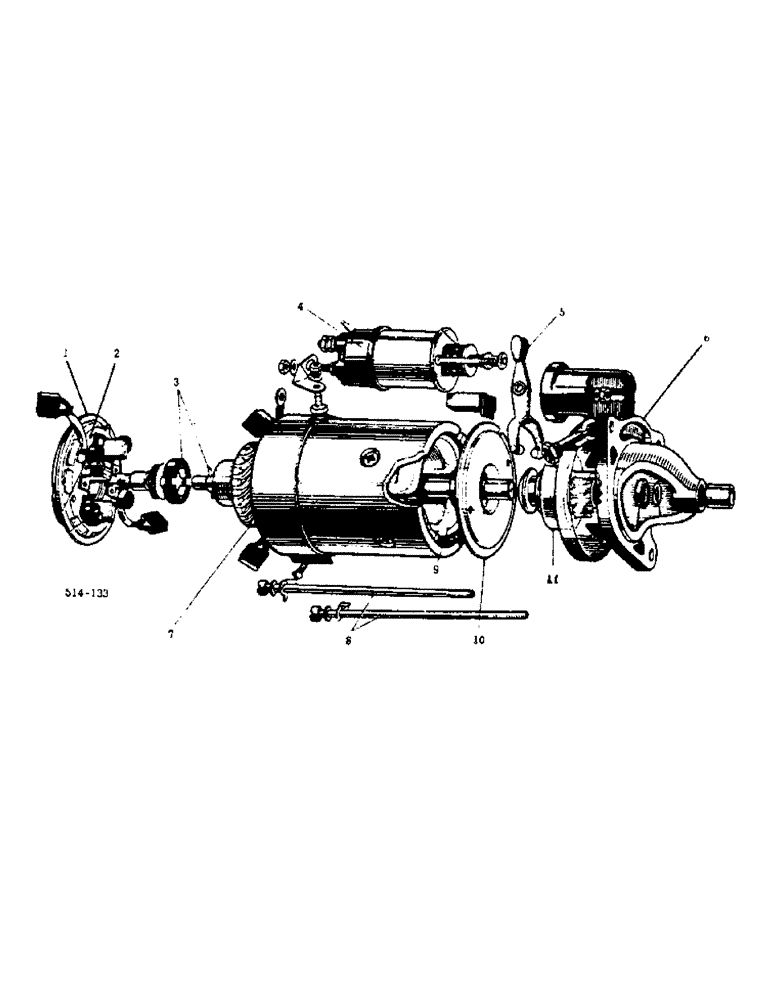

Схема запчастей Case IH 584 - (08-08) - CRANKING MOTOR, LUCAS (06) - ELECTRICAL
8
5
1
2
4
3
11
7
6
10
9

Артикул

Название

Примечание

Количество

STARTER MOTOR, complete, Lucas M50, 26428A, replaced by 537140R95

1шт.

1

3206511R91

BRACKET

KIT, bracket assy

1шт.

Does not include seals.

1шт.

2

3113026R91

PLATE ASSY.

PLATE ASSY, brush mounting

1шт.

3118371R91

BRUSH, COMMUTATOR

KIT, brushes

1шт.

3206523R91

SPRING KIT

KIT, brush springs

1шт.

3

3206531R91

BRAKE PACKAGE

KIT, brake

1шт.

4

3129495R91

SOLENOID SWITCH

SOLENOID

1шт.

5

3206517R91

LINK ASSY.

LINK ASSY, solenoid

1шт.

6

3129494R91

BRACKET

ASSY, fixing

1шт.

7

3113038R91

ARMATURE

ASSY

1шт.

8

3129088R1

BOLT

ASSY, thru

2шт.

3129089R1

WASHER

spring

2шт.

9

3206089R1

KIT, field coils

1шт.

10

3119902R91

SUPPORT

BRACKET ASSY, intermediate

1шт.

11

3113033R91

DRIVE

ASSY

1шт.

3113029R91

BUSHING

KIT, bushing

1шт.

3206528R91

SEAL KIT

KIT, sealing

1шт.

3206529R91

KIT

sundry parts

1шт.

537140R95

STARTER MOTOR

Lucas model M127/28, Lucas no. 27508B replaces 537140R94 M50/26336 h/k replaces 3125850R91 M50/26428A

1шт.

1

3206511R91

BRACKET

KIT, bracket assy

1шт.

2

3113026R91

PLATE ASSY.

PLATE ASSY, brush mounting

1шт.

3118371R91

BRUSH, COMMUTATOR

KIT, brushes

1шт.

3206523R91

SPRING KIT

KIT, brush springs

1шт.

3

3206531R91

BRAKE PACKAGE

KIT, brakes

1шт.

4

(Not used)

1шт.

5

84061C1

KIT

LINK ASSY, solenoid replaces 3206517R91

1шт.

6

3129494R91

BRACKET

ASSY, drive end for Lucas starter 26336 h/k

1шт.

7

3129494R91

BRACKET

ARMATURE ASSY, replaces 3113038R91

1шт.

8

(Not used)

1шт.

9

84058C1

KIT

field coils replaces 3206527R91

1шт.

10

3119902R91

SUPPORT

BRACKET ASSY, intermediate

1шт.

11

84209C1

DRIVE ASSY.

DRIVE ASSY, replaces 3113033R91

1шт.

3113029R91

BUSHING

KIT, bushing

1шт.

3206528R91

SEAL KIT

KIT, sealing

1шт.

3206529R91

KIT

sundry parts

1шт.

84060C1

SOLENOID SWITCH

SWITCH ASSY, solenoid replaces 3124479R93

1шт.

78986C1

PACKAGE

KIT, retention

1шт.

Выбрано товаров: 38
