Запчасти Case IH 584 (08-07) - CRANKING MOTOR, BOSCH (06) - ELECTRICAL

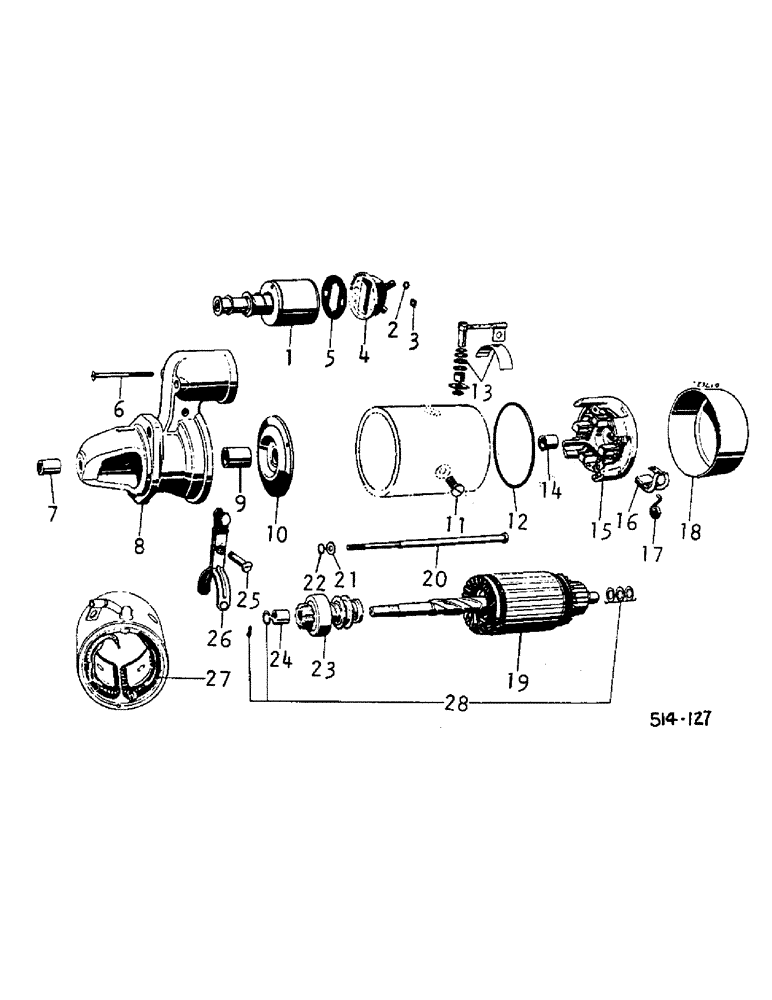

Схема запчастей Case IH 584 - (08-07) - CRANKING MOTOR, BOSCH (06) - ELECTRICAL
4
13
12
28
5
18
14
24
20
26
21
3
23
15
2
9
16
8
7
27
6
19
1
17
25
22
11
10

Артикул

Название

Примечание

Количество

529965R93

STARTING MOTOR

STARTER MOTOR, Bosch 4ps, Bosch no. 00001362310 replaces no. 00001359045R91 and 00001367042R92

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

537143R1

TERMINAL CONNECTOR,Male

TERMINAL, Male

1шт.

1

3113013R91

RELAY

SWITCH, solenoid, two-bolt mounting application

1шт.

Used with 529965R91.

1шт.

1

140881A1

KIT

SWITCH, solenoid, three-bolt mounting application, Replaces 3078963R1

1шт.

Used with 529965R92 and R93.

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER, relay cover

2шт.

3

3132763R1

TERMINAL CONNECTOR

PLATE, relay cover

4шт.

4

NSS

NOT SOLD SEPARAT

COVER, relay

1шт.

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

relay cover

1шт.

100016

NUT,M10 x 1.5, Cl 8

Relay Cover M10, Cl 8

2шт.

934075R1

LOCK WASHER,M10

Relay cover M10

2шт.

5

NSS

NOT SOLD SEPARAT

RING, packing relay cover

1шт.

6

931100R1

SCREW,M6 x 50mm, Cl 4.8

switch

2шт.

Used with 529965R91.

1шт.

6

3078974R1

SCREW

switch

3шт.

Used with 529965R92 and R93.

1шт.

7

3113008R1

BUSHING

bearing

1шт.

Used with 529965R91.

1шт.

7

3055738R1

BUSHING

bearing

1шт.

Used with 529965R92 and R93.

1шт.

8

3113007R91

DRIVE ASSY.

DRIVE ASSY, end

1шт.

Used with 529965R91.

1шт.

8

3129633R1

HOUSING

DRIVE ASSY, end

1шт.

Used with 529965R92 and R93.

1шт.

9

3132441R1

BUSHING

bearing

1шт.

Used with 529965R91.

1шт.

9

3078967R1

BUSHING

bearing

1шт.

Used with 529965R92 and R93.

1шт.

10

3132440R1

SUPPORT

BEARING, intermediate

1шт.

Used with 529965R91.

1шт.

10

3079253R1

BALL BEARING

intermediate

1шт.

Used with 529965R92 and R93.

1шт.

11

3078334R1

SCREW

retainer

4шт.

Used with 529965R91.

1шт.

11

3129639R1

SCREW

retainer

4шт.

Used with 529965R92 and R93.

1шт.

12

3132450R1

O-RING

RING, packing commutator end

1шт.

Used with 529965R91.

1шт.

13

3132464R91

TERMINAL CONNECTOR

SET, terminal parts

1шт.

Used with 529965R91.

1шт.

13

3079173R91

KIT

SET, terminal parts

1шт.

Used with 529965R92 and R93.

1шт.

14

3132446R1

BUSHING

commutator end

1шт.

Used with 529965R91.

1шт.

14

3079170R1

BUSHING

commutator end

1шт.

Used with 529965R92 and R93.

1шт.

15

3113011R91

FRAME ASSY

commutator end

1шт.

Used with 529965R91.

1шт.

15

3129632R91

END ASSY.

FRAME ASSY, commutator end

1шт.

Used with 529965R92 and R93.

1шт.

16

3078754R91

COMMUTATOR BRUSH

SET, brush

1шт.

Used with 529965R91.

1шт.

16

3079359R1

KIT

SET, brush

1шт.

Used with 529965R92 and R93.

1шт.

3079174R1

HOLDER

brush

1шт.

17

3132448R1

VALVE SPRING

SPRING, brush

2шт.

Used with 529965R91.

1шт.

17

3079420R1

SPRING

brush

4шт.

Used with 529965R92 and R93.

1шт.

18

3132449R1

COVER

end

1шт.

Used with 529965R91.

1шт.

18

3079177R1

CAP

COVER, end

1шт.

Used with 529965R92 and R93.

1шт.

3079426R1

SCREW

2шт.

19

3132444R1

X

ARMATURE

1шт.

Used with 529965R91.

1шт.

19

3079252R1

ARMATURE

1шт.

Used with 529965R92 and R93.

1шт.

20

3132759R1

BOLT

PIN, threaded housing

2шт.

Used with 529965R91.

1шт.

933987R1

LOCK WASHER,M6

WASHER, lock

2шт.

20

3079172R1

STUD

thru

2шт.

Used with 529965R92 and R93.

1шт.

3079176R1

WASHER

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

21

3113009R1

WASHER

1шт.

Used with 529965R91.

1шт.

22

3132760R1

BUSHING

RING, packing

1шт.

Used with 529965R91.

1шт.

23

3078980R91

DRIVE

ASSY

1шт.

Used with 529965R91.

1шт.

23

3129631R1

DRIVE ASSY.

DRIVE ASSY

1шт.

Used with 529965R92 and R93.

1шт.

24

3132443R1

BUSHING

1шт.

Used with 529965R91.

1шт.

24

3079254R1

BUSHING

1шт.

Used with 529965R92 and R93.

1шт.

25

3132758R1

SCREW

lever

1шт.

Used with 529965R91.

1шт.

25

3079251R1

BOLT

lever

1шт.

Used with 529965R92 and R93.

1шт.

26

3132432R1

LEVER

engaging

1шт.

Used with 529965R91.

1шт.

3078965R1

LEVER

engaging

1шт.

Used with 529965R92 and R93.

1шт.

933983R1

LOCK WASHER,M6

WASHER, lock

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

27

3078072R91

KIT

COIL, field

1шт.

Used with 529965R91.

1шт.

27

3079356R1

COIL

field

1шт.

Used with 529965R92 and R93.

1шт.

28

3132465R91

PACKAGE

SET, armature parts

1шт.

Used with 529965R91.

1шт.

1273635C1

COVER, solenoid

1шт.

Выбрано товаров: 107
