(08-05B) - NEUTRAL SAFETY SWITCH, SERIAL NO. 6952 AND BELOW

Запчасти Case IH 584 (08-05B) - NEUTRAL SAFETY SWITCH, SERIAL NO. 6952 AND BELOW (06) - ELECTRICAL

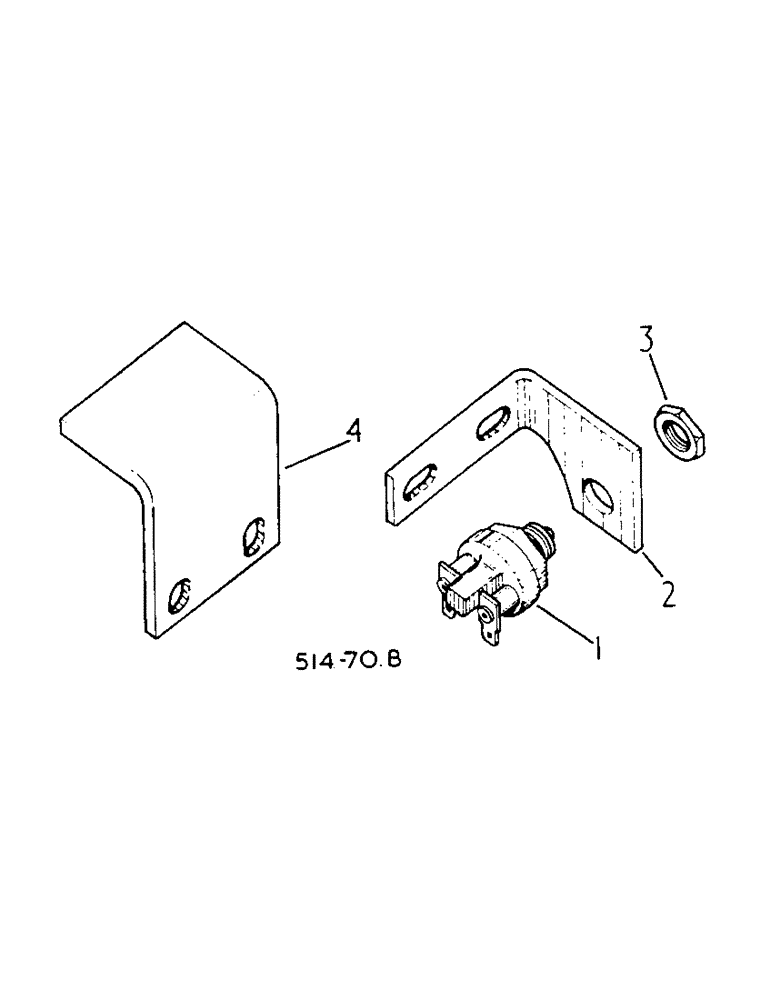

Схема запчастей Case IH 584 - (08-05B) - NEUTRAL SAFETY SWITCH, SERIAL NO. 6952 AND BELOW (06) - ELECTRICAL
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3072122R93

SWITCH

neutral safety

1шт.

2

531203R2

BRACKET

ASSY, safety switch mounting

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

2шт.

3

3112570R1

NUT

NUT, safety switch locking

1шт.

4

(Not used this application)

1шт.

Выбрано товаров: 7
