(08-05B[A]) - NEUTRAL SAFETY SWITCH, SERIAL NO. 6953 AND ABOVE

Запчасти Case IH 584 (08-05B[A]) - NEUTRAL SAFETY SWITCH, SERIAL NO. 6953 AND ABOVE (06) - ELECTRICAL

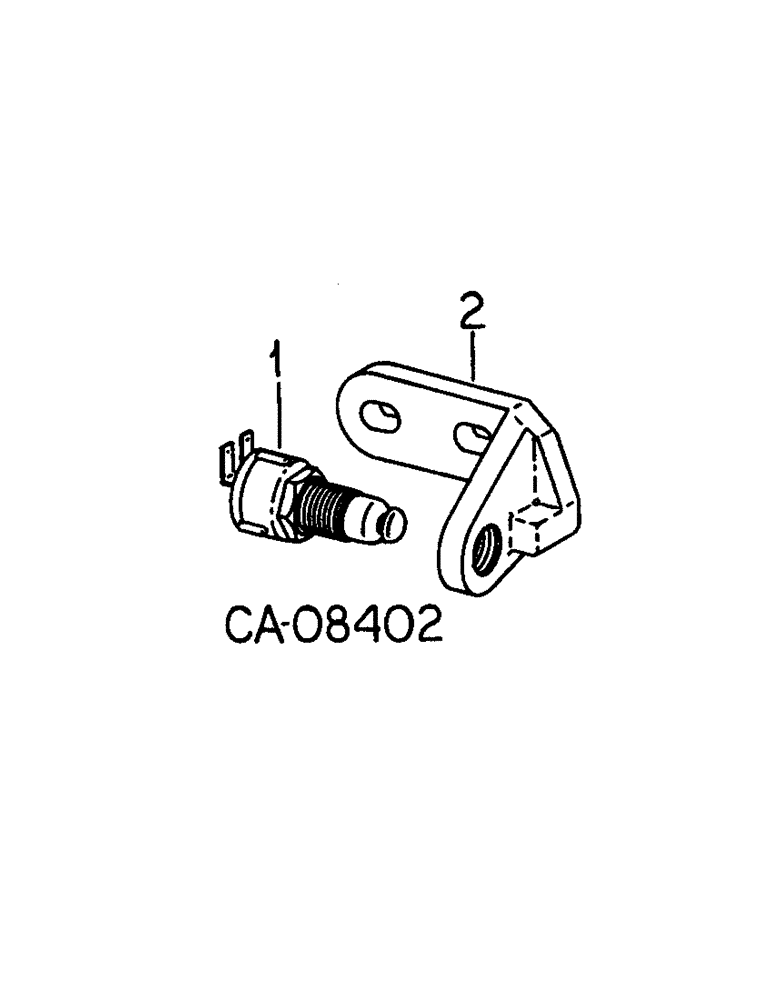

Схема запчастей Case IH 584 - (08-05B[A]) - NEUTRAL SAFETY SWITCH, SERIAL NO. 6953 AND ABOVE (06) - ELECTRICAL
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

121629C2

SWITCH

neutral safety

1шт.

2

1500214C1

BRACKET

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

2шт.
