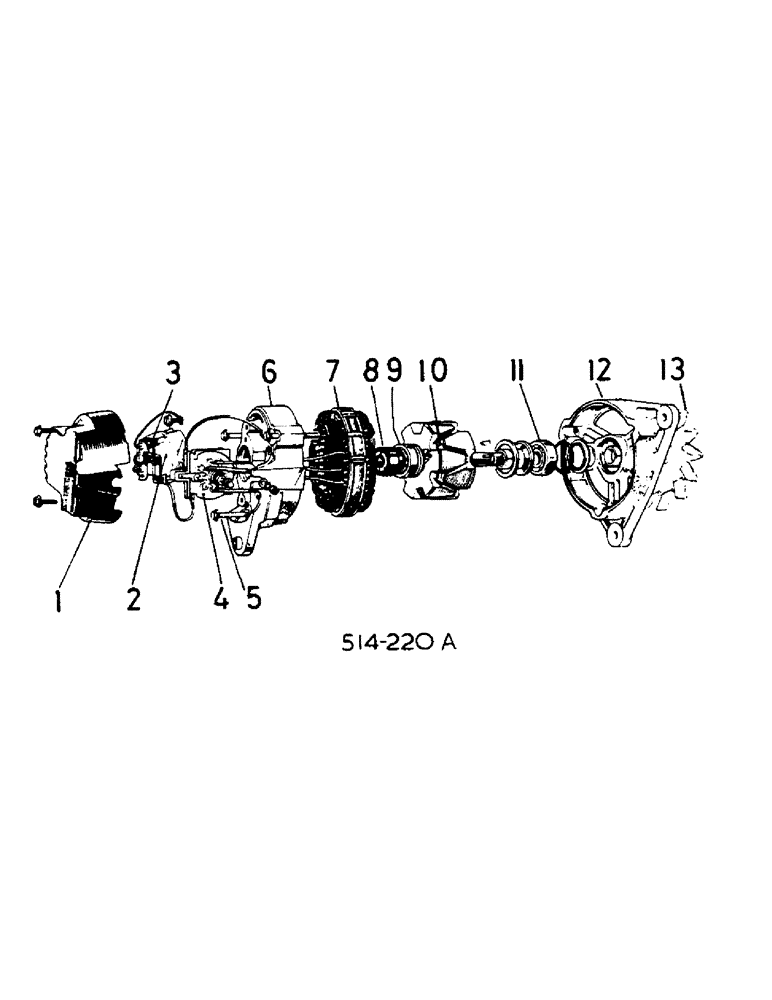

Запчасти Case IH 584 (08-02) - ALTERNATOR, LUCAS 15 ACR, 17 ACR AND 18 ACR (06) - ELECTRICAL

ALTERNATOR, Lucas 15 ACR, Lucas no. 45021569

1шт.

ALTERNATOR, Lucas 17 ACR replaces by 84082C91

1шт.

The Lucas 15 ACR and 17 ACR have been replaced with 84082C91 which subs to 92293C1.

1шт.

ALTERNATOR, Lucas 18 ACR, less fan, Lucas no. 23765, replaced by 245531C91

1шт.

1

3116086R1

COVER

Lucas no. 23962

1шт.

2

3116094R91

BRUSH HOLDER

AND BRUSH ASSY, includes

1шт.

3116099R91

BRUSH SET

KIT, brush

1шт.

3

3116087R3

REGULATOR

1шт.

4

3116088R1

RECTIFIER

17 & 18 ACR alternator

1шт.

5

3116088R1

RECTIFIER

BOLT, fixing

3шт.

6

3116092R1

BRACKET

stator-regulator end

1шт.

7

3116093R1

STATOR

15 ACR alternator

1шт.

7

3125134R1

STATOR

17 ACR alternator

1шт.

8

3116097R1

RING

slip

1шт.

9

3116098R1

KIT

BEARING KIT, stator-regulator end

1шт.

10

3125130R91

ROTOR ASSY.

ROTOR ASSY, 15 ACR alternator

1шт.

10

3125133R91

ROTOR ASSY.

ROTOR ASSY, 17 & 18 ACR alternator, w/ring 3116097R1 and bearing 3116098R91

1шт.

11

3116096R91

BEARING ASSY

KIT, drive end

1шт.

12

3116089R91

BRACKET

ASSY, drive end

2шт.

13

3117067R1

FAN

alternator, 15 & 17 ACR

1шт.

13

1502055C1

FAN

alternator, 18 ACR not included w/18 ACR alternator

1шт.

3116090R91

KIT

parts sundry

1шт.

3123891R1

RECTIFIER

surge protection

1шт.

3118367R1

RECTIFIER

15 & 17 ACR

1шт.

3125297R1

CAPACITOR

18 ACR alternator

3шт.

84083C1

CAPACITOR

17 ACR alternator

3шт.
