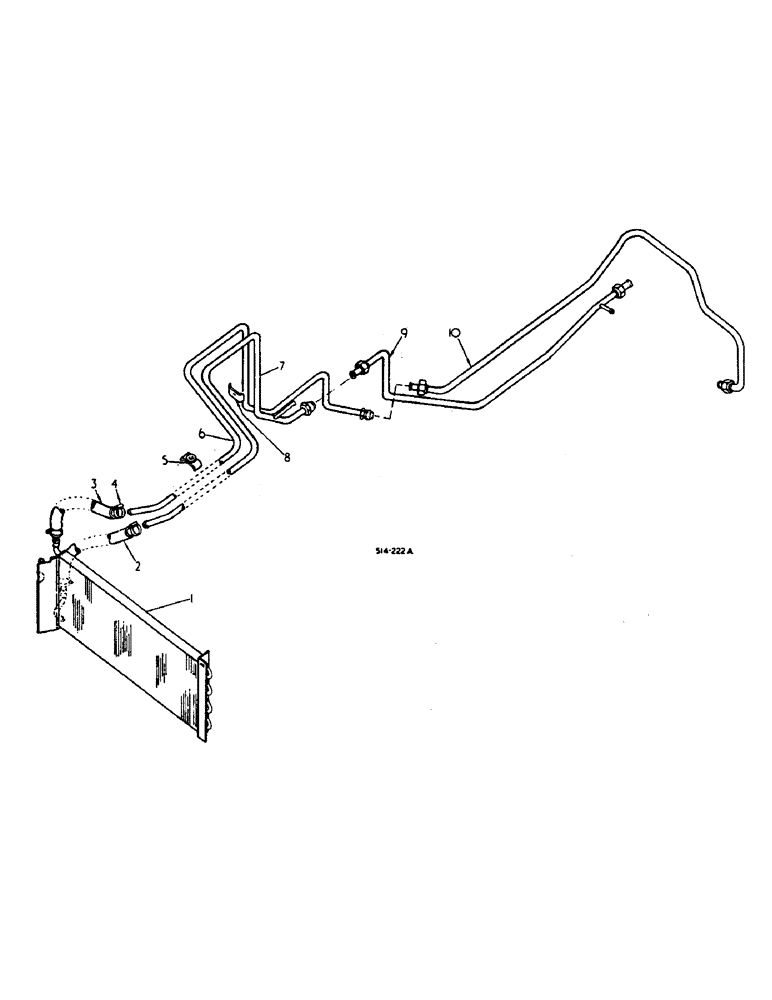

Запчасти Case IH 584 (06-01) - OIL COOLER Cooling

1

539560R1

COOLER

oil, or

1шт.

1

1265532C1

COOLER

oil, required w/17 GPM pump

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1.875 pln hd type 1

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

HOSE, oil cooler outlet, furnish 18 inches from a 50 foot bulk roll marked 73199C1

1шт.

3

HOSE, oil cooler inlet, furnish 18 inches from a 50 foot bulk roll marked 73199C1

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose, or

4шт.

4

3074617R1

CLAMP

oil cooler hose

4шт.

5

529644R11

CLAMP

ASSY, oil cooler tube

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

66098C1

PIPE

TUBE ASSY, oil cooler inlet

1шт.

7

66100C2

TUBE ASSY.

TUBE ASSY, oil cooler outlet

1шт.

8

381448R1

CLAMP

oil cooler tube

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

66096C3

TUBE

ASSY, oil cooler return rear

1шт.

10

66095C2

TUBE ASSY.

TUBE ASSY, oil cooler rear, Z pattern shift

1шт.

10

3129259R1

PIPE

TUBE ASSY, oil cooler rear, H pattern shift

1шт.
