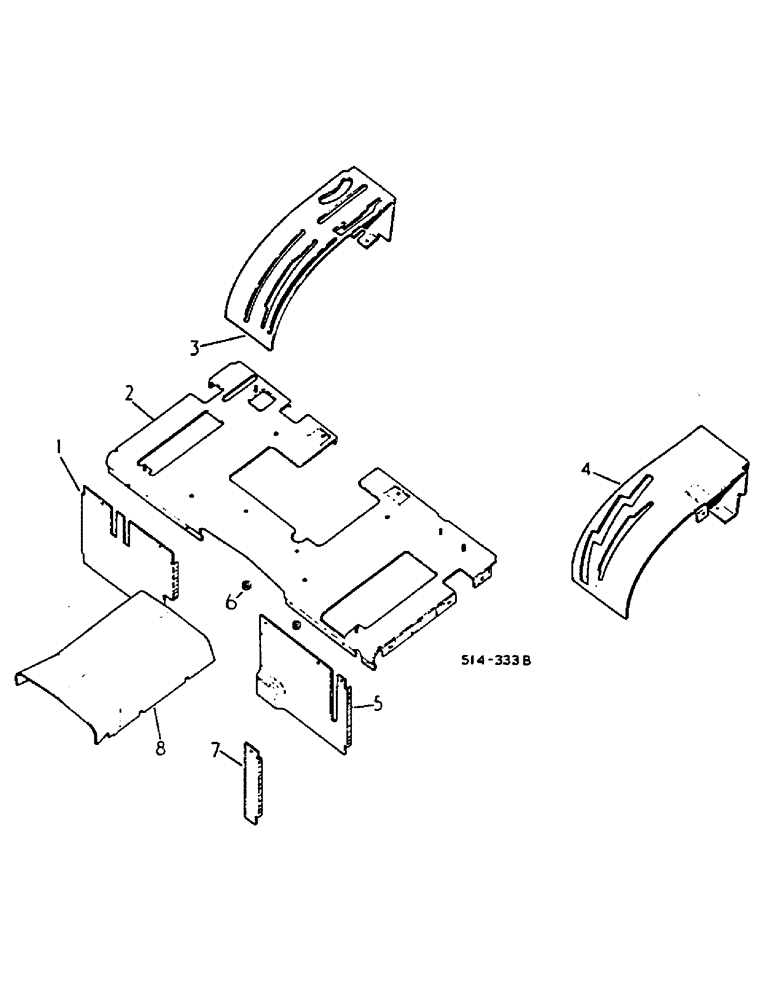

Запчасти Case IH 584 (13-03) - REAR PANELS, Z PATTERN SHIFT (05) - SUPERSTRUCTURE

1

3123711R1

CHANNEL

ASSY, rear vertical RH, w/single aux. valves

1шт.

1

3125857R1

CHANNEL

ASSY, rear vertical RH, w/multiple aux. valves

1шт.

180018

CONNECTING LINK

1/4 x 5/8 type 5

2шт.

2

528640R4

COVER ASSY

rear top

1шт.

120368

NUT,5/16"-24, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

3

529457R61

COVER ASSY

hitch control lever, utility tractors

1шт.

3

3121558R2

COVER ASSY

hitch control lever, all wheel drive tractors

1шт.

4

529384R21

HOUSING ASSY.

HOUSING ASSY, trans shift

1шт.

5

528638R2

PROTECTION PLATE

CHANNEL ASSY, rear vertical LH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8 type 5

3шт.

6

401941R1

SPACER

mounting short

2шт.

7

NSS

NOT SOLD SEPARAT

(Not used this application)

1шт.

8

66290C1

COVER

ASSY, clutch housing

1шт.

445957

INDICATOR

1/4 x 3/8 znp P/HDS mach

4шт.

3125820R1

SLEEVE

PVC, for use w/cover assy, rear top

6шт.
