Запчасти Case IH 584 (07-63) - DIFFERENTIAL CARRIER, ALL WHEEL DRIVE, ZF AXLE (04) - Drive Train

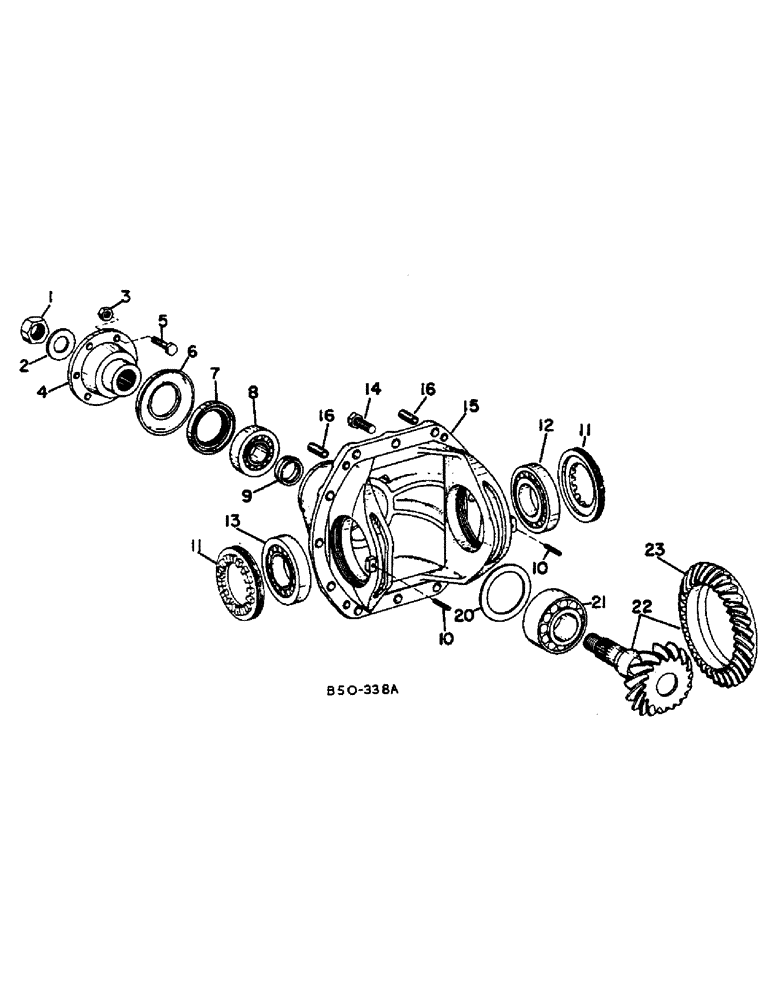

Схема запчастей Case IH 584 - (07-63) - DIFFERENTIAL CARRIER, ALL WHEEL DRIVE, ZF AXLE (04) - Drive Train
8
1
21
10
14
22
3
10
13
16
7
2
16
11
20
5
15
9
6
12
4
23
11

Артикул

Название

Примечание

Количество

1

934649R1

NUT,M20 x 1.5, Cl 10

M20 x 1.5

1шт.

2

3216566R1

WASHER

1шт.

3

(Not used this application)

1шт.

4

1502274C1

FLANGE

drive

1шт.

5

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 PHC type 8

4шт.

6

3216554R1

SHIELD

dust

1шт.

7

3146754R1

SEAL

SEAL

1шт.

8

871241R91

ROLLER BEARING

cone

1шт.

8

530741R1

BEARING CUP

BEARING, cup

1шт.

9

3216560R1

SLEEVE

1шт.

10

Q5343

LOCK PIN,M5 x 30, Slotted

PIN, coiled spring

2шт.

11

3216565R1

NUT

adjusting

2шт.

12

3216713R91

BEARING, ROLLER

BEARING, taper roller

1шт.

13

3216713R91

BEARING, ROLLER

BEARING, taper roller

1шт.

14

931370R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

SCREW, M10 x 35

9шт.

15

3216559R1

HOUSING

differential

1шт.

82222C1

STUD

M10 x 67

3шт.

16

932601R1

RIVET

PIN, coiled spring

2шт.

17

(Not used this application)

1шт.

18

(Not used this application)

1шт.

19

(Not used this application)

1шт.

20

3216564R1

SHIM

.1 mm

1шт.

20

3216563R1

DISC

SHIM, .2 mm

1шт.

20

3216562R1

SHIM

.3 mm

1шт.

20

3216561R1

DISC

SHIM, .6 mm

1шт.

21

313814R91

ROLLER BEARING,36.51mm ID x 28.57mm W

cone pinion front

1шт.

21

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

BEARING CUP, Pinion front

1шт.

22

1502273C91

GEAR, BEVEL

SET, bevel gear 11/35T

1шт.

23

GEAR, crown 11T

1шт.

Выбрано товаров: 29
