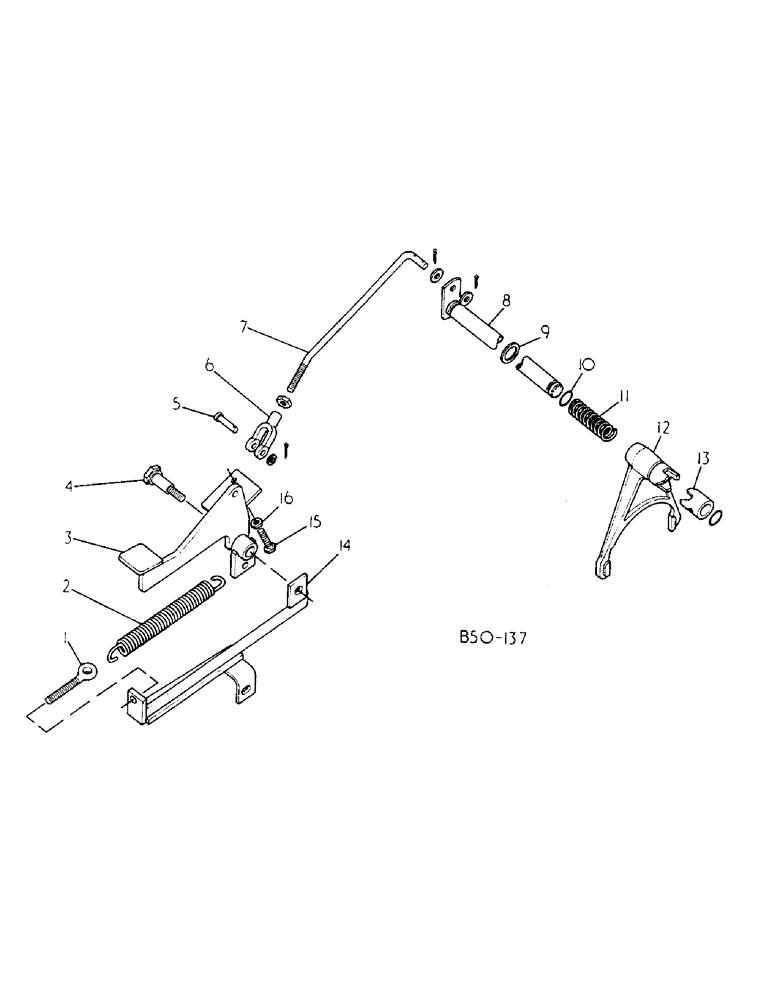

Запчасти Case IH 584 (07-44) - DIFFERENTIAL LOCK, ALL WHEEL DRIVE, KIMCO AXLE (04) - Drive Train

1

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT, pedal return spring eye

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

3121849R1

SPRING

diff lock pedal return

1шт.

3

3121568R1

PEDAL

diff lock

1шт.

4

3116897R1

BOLT,Lock, 9/16" - 12 x 2.38"

diff lock pedal pivot

1шт.

5

114785

PIN, 3/8 x 1-1/16 clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

Q1597

WASHER

.406 x .734 x .056 pln

1шт.

6

753984R1

CLEVIS,3/8" - 16

rod end

1шт.

7

3116187R91

ROD

diff lock pedal

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q1597

WASHER

.406 x .734 x .056 pln

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

8

527871R1

SHAFT ASSY.

SHAFT ASSY, diff lock

1шт.

9

551658R1

WASHER

25/32 x 1-1/4 x 22

1шт.

9

Q3501

WASHER

25/32 x 1-1/4 x 16, as required

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 class 5

1шт.

11

527878R1

SPRING

diff lock fork actuating

1шт.

12

527874R3

FORK

ASSY, diff lock shaft

1шт.

13

527877R1

CAM

diff lock shaft

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

14

3121572R1

SUPPORT ASSY.

SUPPORT ASSY, diff lock pedal

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16

109084

NUT,1/4"-20, G5

1шт.
