Запчасти Case IH 584 (07-33) - TRANSMISSION CONTROLS, EXTERNAL, Z PATTERN SHIFT (04) - Drive Train

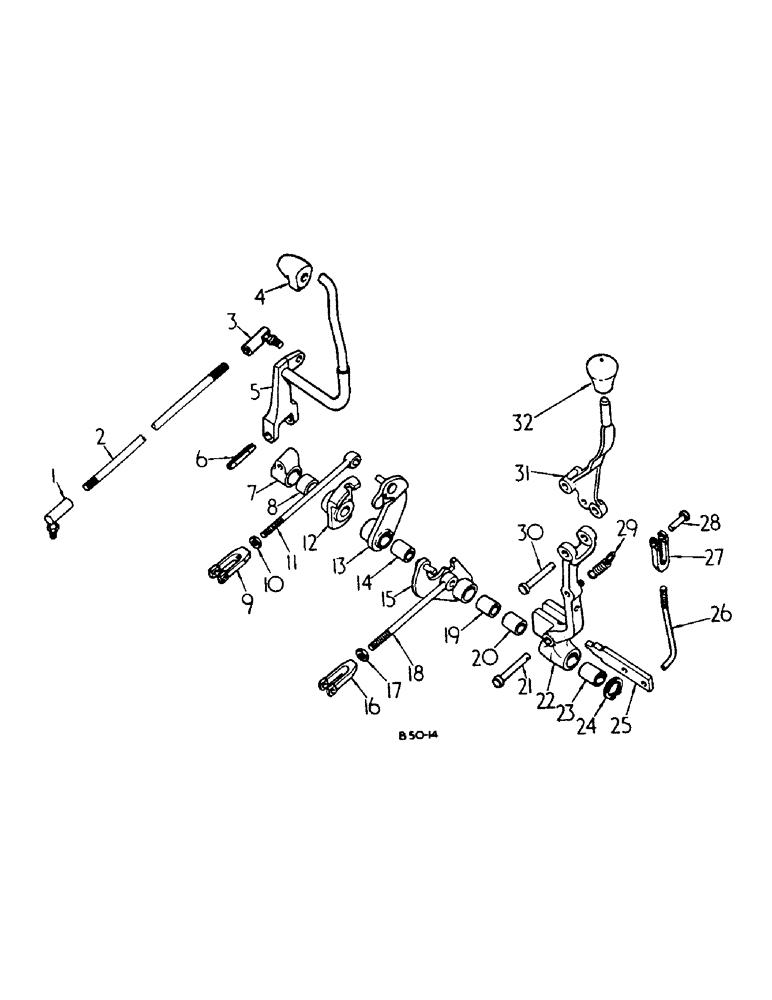

Схема запчастей Case IH 584 - (07-33) - TRANSMISSION CONTROLS, EXTERNAL, Z PATTERN SHIFT (04) - Drive Train
16
18
15
32
17
14
6
25
31
20
10
4
11
22
8
27
21
7
9
28
24
19
29
2
26
13
30
12
3
23
1
5

Артикул

Название

Примечание

Количество

1

D149295

BALL JOINT,3/8"

JOINT, 3/8-24 ball, Serial Range: -1462

1шт.

1

442708

BALL JOINT

JOINT, 3/8-24 ball, Serial Range: -1462

1шт.

1

158397H1

BALL JOINT

JOINT, 3/8-24 ball, Serial Range: -1462

1шт.

103026

NUT,3/8"-24, G5

1шт.

1

3123927R1

JOINT

3/8 UNF ball, Start Serial: 1463

1шт.

3048059R1

NUT, lock 3/8 UNF nylon insert

2шт.

2

528122R1

ROD

speed shift leve, order rod 3123926R1, joint 3123927R1, 3123928R1 and nut 3048059R91, Serial Range: -1462

1шт.

2

3123926R1

ROD

speed shift lever, Start Serial: 1463

1шт.

3

D149295

BALL JOINT,3/8"

JOINT, 3/8-24 ball, Serial Range: -1462

1шт.

3

442708

BALL JOINT

JOINT, 3/8-24 ball, Serial Range: -1462

1шт.

3

158397H1

BALL JOINT

JOINT, 3/8-24 ball, Serial Range: -1462

1шт.

103026

NUT,3/8"-24, G5

1шт.

3

3123928R1

JOINT

3/8 UNF ball LH thread, Start Serial: 1463

1шт.

4

379022R2

KNOB

speed shift lever

1шт.

5

530532R2

LEVER ASSY.

LEVER ASSY, speed shift

1шт.

6

366281R1

PIN,3/8" x 2", Coiled

1шт.

7

530932R1

HUB ASSY.

HUB ASSY, transmission shift hand lever

1шт.

615192R1

WASHER

.906 x 1.250 x .027 pln

1шт.

8

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

9

161003C1

NO LONGER SERVICED

CLEVIS, 3/8-24 x 2-1/4 rod end, or

1шт.

9

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 short adj rod end, or

1шт.

9

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 rod end

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1.218 PHC clevis

1шт.

Q3641

WASHER

.406 x .750 x .021 pln

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

10

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

528141R1

ROD ASSY.

ROD ASSY, range shift rear

1шт.

12

528123R1

PIVOT ASSY.

GATE ASSY, range shift

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

13

528126R2

LEVER ASSY.

LEVER ASSY, idler shaft inner

1шт.

Q3641

WASHER

.406 x .750 x .021 pln

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

14

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

15

528129R1

LEVER ASSY.

LEVER ASSY, idler shaft outer

1шт.

Q3641

WASHER

.406 x .750 x .021 pln

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

16

161003C1

NO LONGER SERVICED

CLEVIS, 3/8-24 x 2-1/4 rod end, or

1шт.

16

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 short adj rod end, or

1шт.

16

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 rod end

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1.218 PHC clevis

1шт.

Q3641

WASHER

.406 x .750 x .021 pln

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

528139R1

ROD ASSY.

ROD ASSY, range shift front

1шт.

19

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

20

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

21

22963R1

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std hd

1шт.

22

530933R2

LEVER ASSY.

LEVER ASSY, range shift

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

23

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

24

454331R1

SNAP RING,#87, Ext

Shift lever #87, Ext

1шт.

25

528134R1

LATCH

range shift lever

1шт.

26

528135R1

ROD

range shift lever

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

27

104037

CLEVIS

5/16-24 x 2-1/4 rod end

1шт.

27

161002C1

NO LONGER SERVICED

CLEVIS, 5/16-24 x 2-1/4 rod end

1шт.

28

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1-1/16 rod end

1шт.

29

528136R1

SPRING

shift lever return

1шт.

30

22963R1

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std hd

1шт.

31

3121199R1

LEVER

range shift upper

1шт.

32

3121549R1

KNOB

KNOB, range shift upper lever

1шт.

Выбрано товаров: 63
