Запчасти Case IH 584 (07-32) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION, H PATTERN SHIFT, TRACTORS W/S/N 10179 & ABOVE (04) - Drive Train

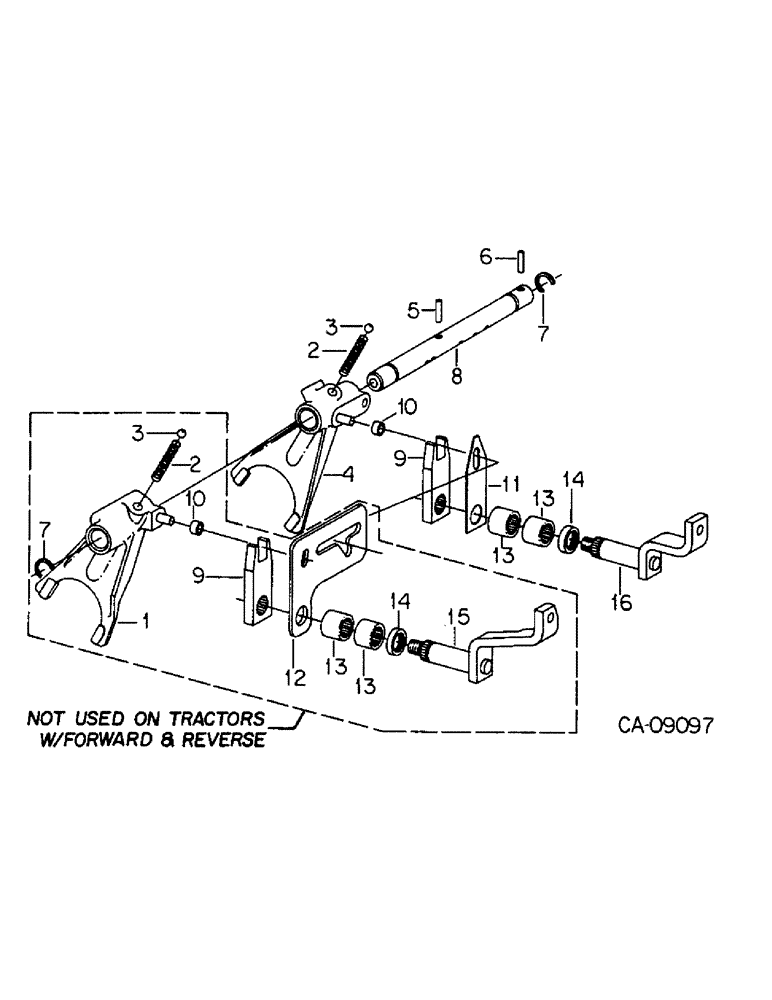

Схема запчастей Case IH 584 - (07-32) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION, H PATTERN SHIFT, TRACTORS W/S/N 10179 & ABOVE (04) - Drive Train
13
14
3
2
7
1
3
5
16
13
11
13
15
7
12
6
13
9
10
8
14
10
4
9
2

Артикул

Название

Примечание

Количество

1

1286428C1

FORK

front

1шт.

Tractors without forward and reverse.

1шт.

2

103062C1

SPRING

poppet ball

2шт.

3

17013R1

BALL,13/32" Dia

2шт.

4

1286416C1

FORK

rear

1шт.

Tractors without forward and reverse.

1шт.

4

86311C1

FORK

rear

1шт.

Tractors with forward and reverse.

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

Tractors without forward and reverse.

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

148501C1

RING, SNAP

RING, retaining

2шт.

8

1286415C1

RAIL

range shift fork

1шт.

Tractors without forward and reverse.

1шт.

8

86304C1

RAIL

range shift fork

1шт.

Tractors with forward and reverse.

1шт.

9

1286421C1

ARM

range shift inner

2шт.

10

1286423C1

BUSHING

range shift pin

2шт.

11

1286444C2

STRIP

PLATE, retainer

1шт.

Tractors without forward and reverse.

1шт.

11

86310C1

PLATE

retainer

1шт.

Tractors with forward and reverse.

1шт.

12

1286419C1

PLATE, LOCKING

PLATE, interlock range

1шт.

Tractors without forward and reverse.

1шт.

13

359955R1

BEARING, needle

4шт.

14

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

15

1289946C1

ARM

ASSY, range shift outer front

1шт.

Tractors without forward and reverse.

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln, use as required

1шт.

16066R1

WASHER

.781 x 1.500 x .054 pln, use one or as required

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln p/t lock type 5

1шт.

16

1289948C1

ARM

ASSY, range shift outer rear

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln, use as required

1шт.

16066R1

WASHER

.781 x 1.500 x .054 pln, use one or as required

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln p/t lock type 5

1шт.

Выбрано товаров: 35
