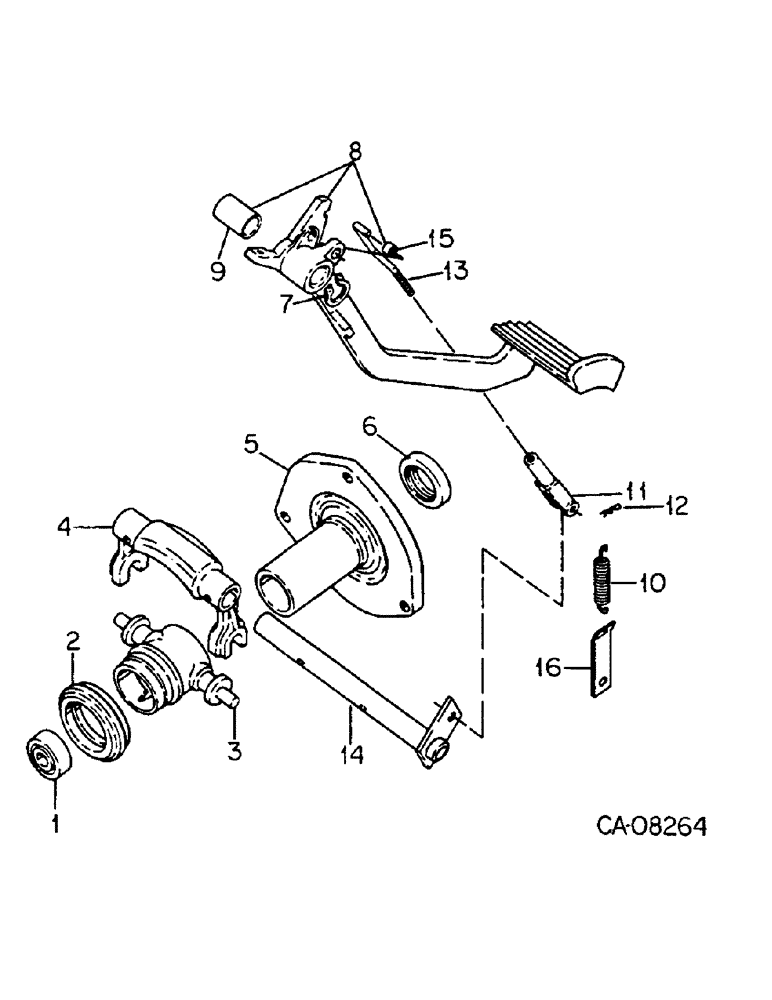

Запчасти Case IH 584 (07-25) - CLUTCH CONTROLS, TRACTORS WITH SELF ADJUSTING CLUTCH (04) - Drive Train

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Clutch pilot

1шт.

2

85104C91

BEARING, BALL

BEARING, clutch release ball replaces 158125C92

1шт.

3

105445C1

BUSHING

SLEEVE, clutch release, 11 inch clutch

1шт.

3

85112C1

SLEEVE

clutch release, 12 inch heavy duty clutch

1шт.

4

398342R1

FORK

clutch release

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

5

71229C1

SLIPPER

CARRIER, clutch release sleeve

1шт.

179842

SPACER

BOLT, 3/8 x 1-3/8 pln type 5

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

2шт.

6

108982C1

OIL SEAL

SEAL, release sleeve, carrier oil

1шт.

7

454331R1

SNAP RING,#87, Ext

Clutch pedal #87, Ext

1шт.

8

1500212C92

PEDAL ASSY.

PEDAL ASSY, clutch w/bushing

1шт.

23183R1

WASHER

.906 x 1.375 x .054

1шт.

9

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

1шт.

10

85141C1

SPRING

clutch pedal return

1шт.

11

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 pln LT adj

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

74158H

CLEVIS PIN,3/8" x 1.344"

PIN, 3/8 x 1.344 pln clevis

1шт.

12

3114469R1

SPLIT PIN/SAFETY PIN

PIN

1шт.

13

71086C1

ROD ASSY.

ROD ASSY, clutch operating

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

14

1502227C1

SHAFT ASSY.

SHAFT ASSY, clutch release, 11 inch clutch

1шт.

14

1288115C1

SHAFT ASSY.

SHAFT ASSY, clutch release, 12 inch heavy duty clutch, (Replaces 1288115C1)

1шт.

15

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

clutch operating rod

1шт.

16

1500594C1

PLATE

spring

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

120881

WASHER, .406 x .812 x .051

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
