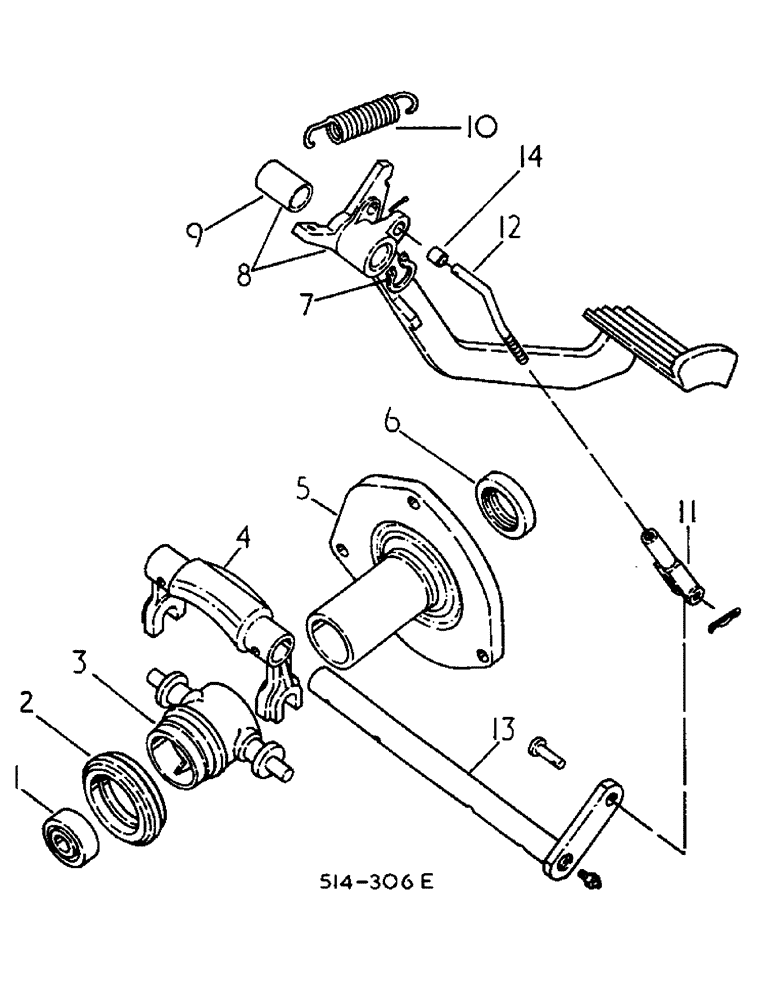

Запчасти Case IH 584 (07-24) - CLUTCH CONTROLS, TRACTORS WITHOUT SELF ADJUSTING CLUTCH (04) - Drive Train

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Clutch pilot

1шт.

2

85104C91

BEARING, BALL

BEARING, clutch release ball replaces 158125C92

1шт.

3

85112C1

SLEEVE

clutch release (Replaces 105445C1)

1шт.

4

398342R1

FORK

clutch release

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

5

71229C1

SLIPPER

CARRIER, clutch release sleeve

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

3шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

3шт.

6

108982C1

OIL SEAL

SEAL, release sleeve carrier oil

1шт.

7

454331R1

SNAP RING,#87, Ext

Clutch pedal #87, Ext

1шт.

8

1212845C91

PEDAL

ASSY, clutch w/bushing

1шт.

23183R1

WASHER

.906 x 1.375 x .054

1шт.

9

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

replaces 539246R1

1шт.

10

399743R1

SPRING

clutch pedal return

1шт.

138675

SCREW,Hex, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 hex-hd ov-pt

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

11

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 light adj rod end

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

3114469R1

SPLIT PIN/SAFETY PIN

PIN, round cot

1шт.

12

71086C1

ROD ASSY.

ROD ASSY, clutch operating

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

13

398237R2

SHAFT HOUSING

SHAFT ASSY, clutch release

1шт.

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 hole 45D lub

2шт.

14

1212847C1

BUSHING

clutch operating rod

1шт.
