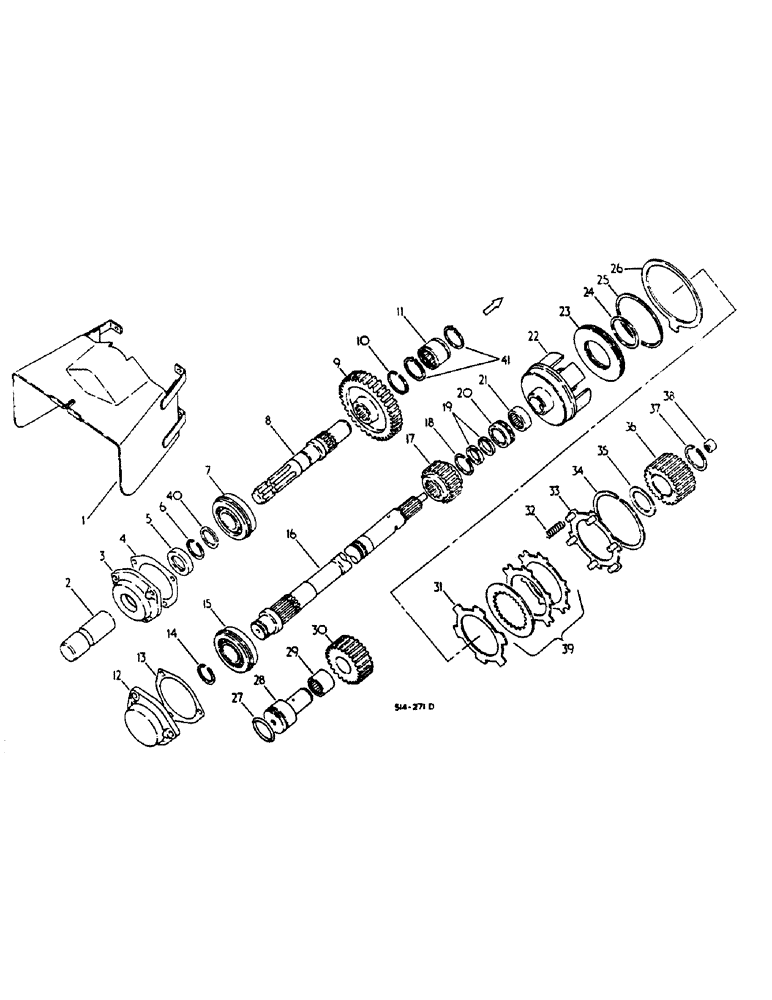

Запчасти Case IH 584 (07-21) - INDEPENDENT POWER TAKE-OFF SINGLE SPEED, UPPER OUTPUT SHAFT WITH PROVISION FOR SIDE PTO (04) - Drive Train

1

401734R1

GUARD ASSY.

SHIELD ASSY, IPTO safety

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3054841R2

TUBE

ASSY, IPTO shaft protection PVC, replaces 406808R1

1шт.

3

401725R2

FLANGED BEARING

IPTO shaft brg, Serial Range: -6804

1шт.

3

1500086C1

FLANGED BEARING

IPTO shaft brg, Start Serial: 6805

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

4

399843R3

GASKET

shaft brg retainer

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, shaft oil

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, shaft ball, used w/upper driven gear, 38T

1шт.

8

3113017R1

SHAFT

upper output, Serial Range: -6804

1шт.

8

1500087C1

SHAFT

upper output, Start Serial: 6805

1шт.

9

66192C1

GEAR

upper driven, 38T

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

RING, driven gear retainer

2шт.

11

112821R91

NEEDLE BEARING

614 RPM shaft needle, Serial Range: -6804

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

shaft, caged, Start Serial: 6805

1шт.

12

66191C1

FLANGED BEARING

IPTO brg end

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

13

399843R3

GASKET

shaft brg retainer

1шт.

14

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

1шт.

15

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, shaft ball, used w/lower shaft drive gear, 21T

1шт.

16

66189C1

SHAFT ASSY.

SHAFT ASSY, IPTO driving

1шт.

17

404232R1

GEAR

lower shaft drive, 21T

1шт.

18

336000R1

SNAP RING,#175, 1.640", Ext

RING, driven gear retainer

1шт.

19

166972R1

RING

shaft sealing

2шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

21

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING, shaft needle

1шт.

22

66068C1

GEAR

clutch cup, 44T, w/side drive P.T.O.

1шт.

22

3125149R1

CUP

clutch, machines fitted w/kimco 4wd axle, w/outside drive P.T.O.

1шт.

22

1500020C1

CUP

front clutch, machines fitted w/ZF 4wd axle, w/outside drive P.T.O.

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

23

401722R1

PISTON

clutch

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, piston seal, inner

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

RING, piston seal, outer

1шт.

26

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32

1шт.

28

401726R1

SHAFT

IPTO idler

1шт.

29

570450R91

NEEDLE BEARING

idler shaft needle

1шт.

30

401727R1

PINION

GEAR, idler, 24T

1шт.

31

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

32

66182C1

SPRING

piston return

6шт.

33

66186C92

PLATE ASSY.

PLATE ASSY, clutch backing

1шт.

See Kimco Group 7 Figure 48

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

34

401720R1

CIRCLIP

RING, backing plate snap

1шт.

35

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

36

66183C2

HUB ASSY.,45T

HUB ASSY, clutch

1шт.

37

401756R1

SNAP RING,#206, 1.936", Ext

RING, snap (Replaces 401755R1, 401756R1)

1шт.

38

533325R91

BEARING, NEEDLE

BEARING, IPTO driven shaft needle

1шт.

39

66193C91

PACKAGE

clutch plate service, 1000 RPM, consists of (5) disc (NSS), (8) plate (NSS)

1шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING

1шт.

66182C1

SPRING

6шт.

40

1500085C1

WASHER

1шт.

41

202307R1

SNAP RING,#206, Ext

2шт.

1093099R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, IPTO speed

1шт.

1287945C1

DECAL

PRODUCT GRAPHIC, IPTO overspeed 600 RPM maximum

1шт.
