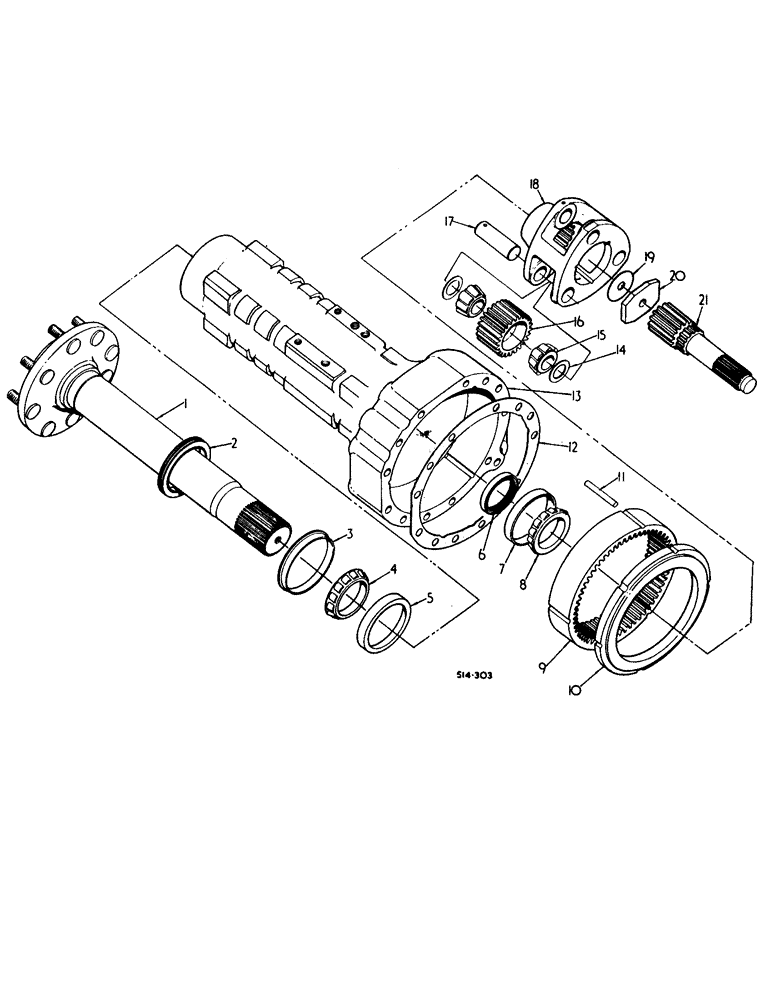

Запчасти Case IH 584 (07-16) - REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

404340R21

HALF SHAFT

AXLE ASSY, rear

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

All wheel drive tractors.

1шт.

Ref. 1 has 535862R1 sleeve as part of the axle.

1шт.

1

527353R11

AXLE, REAR

AXLE ASSY, rear

2шт.

Row crop tractors.

1шт.

Ref. 1 has 535862R1 sleeve as part of the axle.

1шт.

1

404345R13

HALF SHAFT

AXLE ASSY, rear

2шт.

Utility tractors with serial no. 8012 and below.

1шт.

Ref. 1 has 535862R1 sleeve as part of the axle.

1шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

2

105471C1

OIL SEAL

SEAL, rear axle outer oil

1шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

2

105470C1

OIL SEAL

SEAL, rear axle outer oil

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

3

399796R1

SLEEVE

wear

2шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

3

399754R1

SLEEVE

wear

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

4

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

rear axle outer cone

2шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

4

102161H

BEARING ASSY,68.262mm ID x 21.996mm

rear axle outer cone

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

5

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, rear axle outer cup

2шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

5

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

rear axle outer cup

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

6

399798R91

OIL SEAL

SEAL, rear axle inner oil

2шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

6

380200R92

OIL SEAL

rear axle inner oil

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

7

ST981

BEARING CONE,112.71mm OD x 19.05mm W

BEARING, rear axle inner cup

2шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

7

29214H

BEARING CUP,110mm OD x 18.82mm W

BEARING, rear axle inner cup

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

8

ST2175

BEARING, CONE,79.25mm ID x 19.05mm W

BEARING ASSY, rear axle inner cone

2шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

8

ST2194

BEARING, CONE

BEARING ASSY, rear axle inner cone

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

9

535317R1

GEAR, RING

66T

2шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

9

535316R1

GEAR, RING

66T

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

10

114620C1

RING,260mm OD

brake outer disc

2шт.

11

529686R1

DOWEL

PIN, dowel

6шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

11

529685R1

DOWEL

PIN, dowel

6шт.

Utility tractors with serial no. 8013 and above.

1шт.

12

399762R3

GASKET

rear axle carrier

2шт.

13

3123813R3

CARRIER

rear axle LH

1шт.

Utility tractors with serial no. 8013 and above.

1шт.

All wheel drive tractors.

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 8

11шт.

13

3123817R2

CARRIER

rear axle LH

1шт.

Row crop tractors.

1шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

10шт.

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

5/8 x 6-1/4 PHC type 8

1шт.

13

3123815R1

AXLE CARRIER

CARRIER, rear axle LH

1шт.

Utility tractors with serial no. 8013 and above.

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 8

11шт.

13

3123814R1

AXLE CARRIER

CARRIER, rear axle, RH

1шт.

S/N 8013 fitted 484 axles to 584 tractors.

1шт.

Utility tractors with serial no. 8013 and above.

1шт.

All wheel drive tractors.

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 8

11шт.

13

3123818R1

CARRIER

rear axle RH

1шт.

Row crop tractors.

1шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

10шт.

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

5/8 x 6-1/4 PHC type 8

1шт.

13

3123816R1

CARRIER

rear axle RH

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 8

11шт.

14

65421C2

SHIM KIT

PACKAGE, planet gear shim service

1шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

14

65420C1

SHIM KIT

PACKAGE, planet gear shim service

1шт.

Utility tractors with serial no. 8013 and above.

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, planet gear cone

12шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

15

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, planet gear cone

12шт.

Utility tractors with serial no. 8013 and above.

1шт.

16

66128C2

PINION

GEAR, planet 25T, row crop tractors

6шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

16

399784R2

PINION

GEAR, planet, 25T

6шт.

Utility tractors with serial no. 8013 and above.

1шт.

17

399812R1

SHAFT

PIN, planet shaft, row crop tractors

6шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

17

399788R1

PIN

planet shaft

6шт.

Utility tractors with serial no. 8013 and above.

1шт.

17

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

114613C1

CARRIER

planet gear, on orders for 404344R2, furnish 114613C1 w/3 of 66128C2

1шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

18

404339R3

PINION CARRIER

CARRIER, planet gear

2шт.

Utility tractors with serial no. 8013 and above.

1шт.

19

65422C1

SHIM KIT

PACKAGE, rear axle retainer shim

1шт.

20

399748R1

SPACER

planet carrier ret

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-NF x 1-1/2 pln type 8

2шт.

21

404343R1

SHAFT

planetary drive RH

1шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

21

404342R1

SHAFT

planetary drive LH

1шт.

All wheel drive tractors.

1шт.

Utility tractors with serial no. 8012 and below.

1шт.

Row crop tractors.

1шт.

21

404337R1

SHAFT

planetary drive LH

1шт.

Utility tractors with serial no. 8013 and above.

1шт.

21

404338R1

SHAFT

planetary drive RH

1шт.

Utility tractors with serial no. 8013 and above.

1шт.
