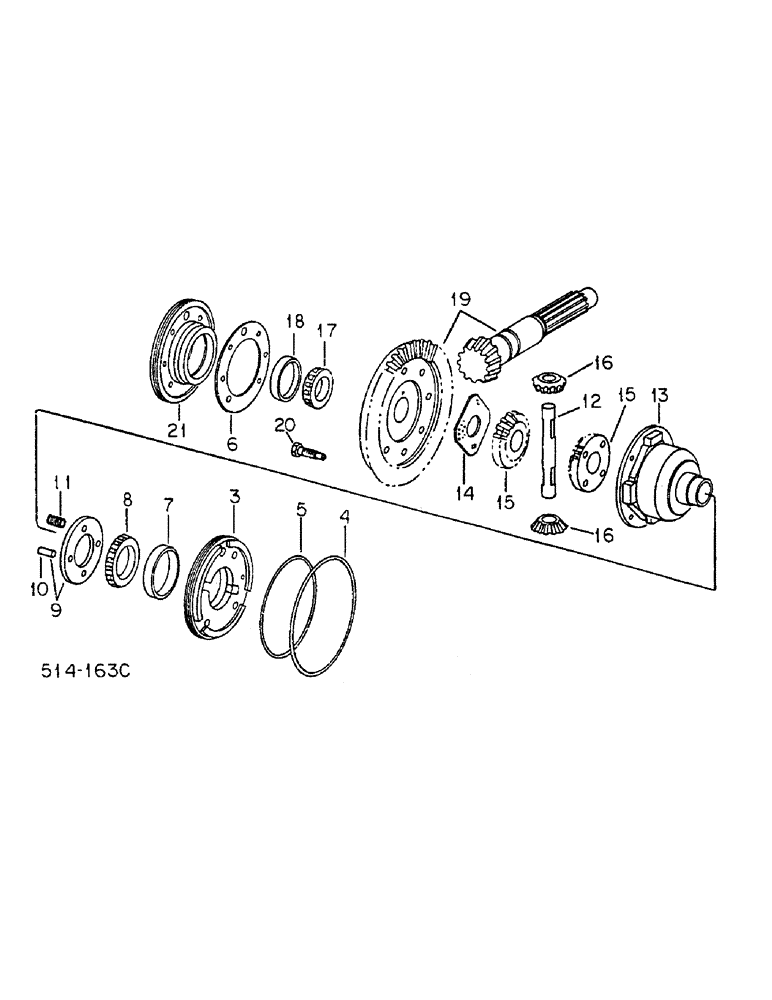

Запчасти Case IH 584 (07-12) - DIFFERENTIAL AND CONNECTIONS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
(Not used this application)
1шт.
2
(Not used this application)
1шт.
3
399770R2
BEARING CARRIER
CARRIER, differential brg RH
1шт.
340340R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
1/2 x 1-1/2 pln type 8
4шт.
4
21472R1
O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro
8-1/4 x 8-1/2 x 1/8, differential brg carrier
2шт.
5
289506R1
O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro
7-1/2 x 7-7/8 x 3/16, differential brg carrier seal
2шт.
6
65419C1
BEARING CARRIER
PACKAGE, differential brg carrier shim, as required
1шт.
7
105504H
TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm
differential RH
1шт.
8
BEARING ASSY, differential cone RH, order bearing 105504H
1шт.
9
399764R11
LOCKING RING
RING ASSY, differential lock
1шт.
10
399765R1
PIN
coupling
4шт.
11
400867R1
SPRING
differential lock
2шт.
12
399804R1
PIN
differential pinion
4шт.
Row crop and all wheel drive tractor utility tractor with serial no. 8012 and below.
1шт.
12
399804R1
PIN
differential pinion
2шт.
12
399775R1
SHAFT
differential pinion
1шт.
Utility tractors with serial no. 8013 and above.
1шт.
13
399763R1
PINION CARRIER
CARRIER, differential
1шт.
14
399778R1
THRUST WASHER
differential bevel gear thrust
1шт.
15
404336R1
PINION
GEAR, differential bevel, 20T
2шт.
16
399776R1
PINION
GEAR, differential pinion, 10T
4шт.
17
105502H
TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"
ASSY, differential LH
1шт.
18
BEARING, differential cup LH, order bearing 105502H
1шт.
19
65779C1
GEAR, BEVEL
SET, bevel gears matched, 11/52T, consists of shaft (NSS), gear (NSS)
1шт.
19
SET, bevel gear matched, 12/53T, kimco axle, see front drive PTO
1шт.
20
399779R2
BOLT,Hex, 1/2" - 13 x 2.12", Gr 8
BOLT, 1/2-13 x 2-1/8 dowel
4шт.
340340R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
1/2 x 1-1/2 pln type 8
4шт.
21
399769R2
BEARING CARRIER
CARRIER, differential brg LH
1шт.
340340R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
1/2 x 1-1/2 pln type 8
4шт.
Выбрано товаров: 29
