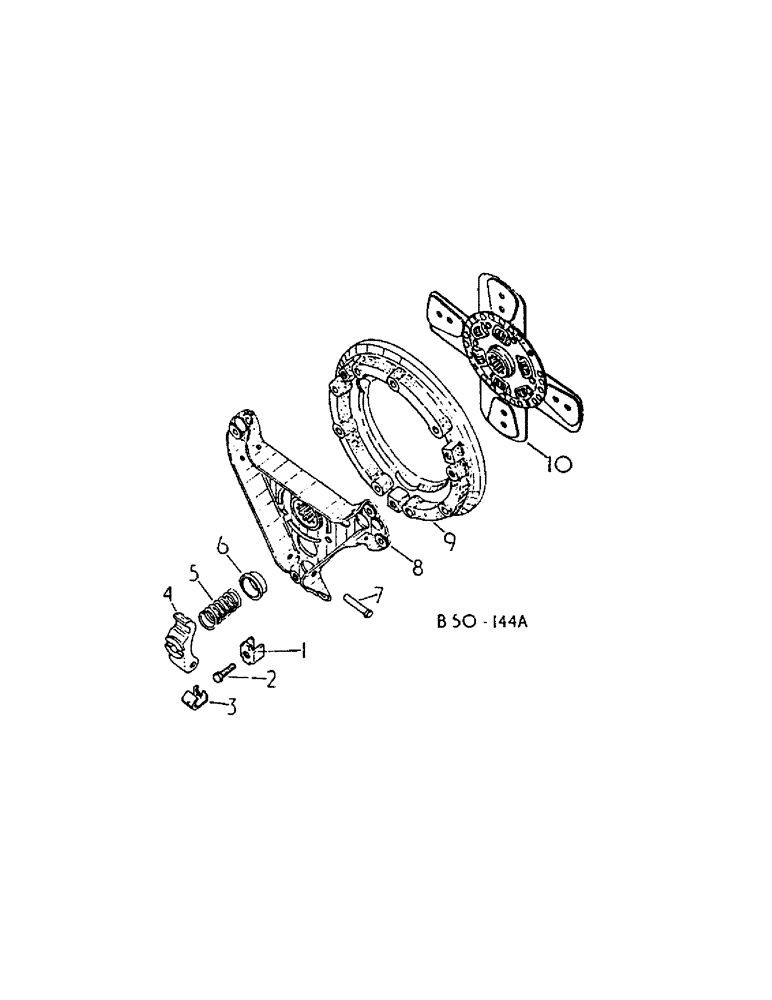

Запчасти Case IH 584 (07-08) - CLUTCH, 11 INCH, DANA (04) - Drive Train

70716C1

COVER ASSY

PLATE ASSY, clutch pressure, consists of ref nos 1 thru 9

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

WASHER

3шт.

2

69911C1

KIT

cover parts w/screw, clip, nut and washer

1шт.

NUT, 5/16-24 hex

3шт.

3

CLIP, return

3шт.

4

69912C1

KIT

lever and pivot pin

1шт.

5

69910C2

KIT

pressure spring and cup

1шт.

6

CUP, spring

3шт.

7

PIN, pivot

3шт.

8

69914C1

HUB ASSY.

KIT, bracket and hub

1шт.

9

69913C1

KIT

pressure plate

1шт.

10

3129463R91

PLATE ASSY.

PLATE ASSY, clutch driven disc w/o forward & reverse, or

1шт.

10

530402R3

DISC

PLATE ASSY, clutch driven disc w/o forward & reverse

1шт.

10

3121507R95

CLUTCH DISC

PLATE ASSY, clutch driven disc w/forward & reverse, or

1шт.

293248A1R

REMAN-CLUTCH DISC

584, w/Dana Clutch, Reman For New P/N 3121507R95, N.A. Only

1шт.

293248A1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.

10

70093C91

PLATE

ASSY, clutch driven disc w/forward & reverse

1шт.
