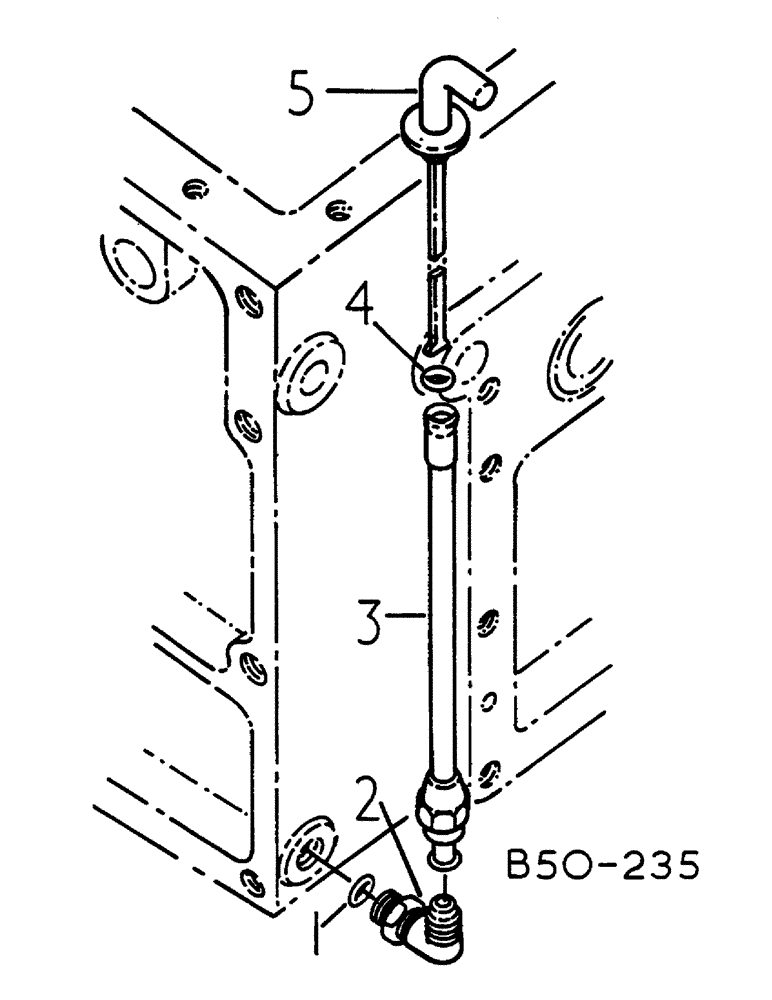

Запчасти Case IH 584 (07-028) - REAR FRAME OIL LEVEL GAUGE (04) - Drive Train

1

364839

O-RING

3/8 OD TUBE

1шт.

2

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 37 DEG HYD FLARED TUBE, INCLUDES UNION

1шт.

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

HYD FLARELESS TUBE, MACHINE FITTED W/CAB

1шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG, MACHINE NOT FITTED W/CAB

1шт.

3

528059R1

TUBE

REAR FRAME OIL LEVEL GAUGE

1шт.

3

3125549R1

TUBE, AND GAUGE CPTE, SUPER DE-LUXE CAB

1шт.

4

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 X 3/8 X 1/16

1шт.

5

528054R1

DIPSTICK

GAUGE ASSY, REAR FRAME OIL LEVEL, SYNCHROMESH DRIVE TRACTOR

1шт.

5

3125550R1

DIPSTICK

GAUGE, INNER, SUPER DE-LUXE CAB

1шт.
