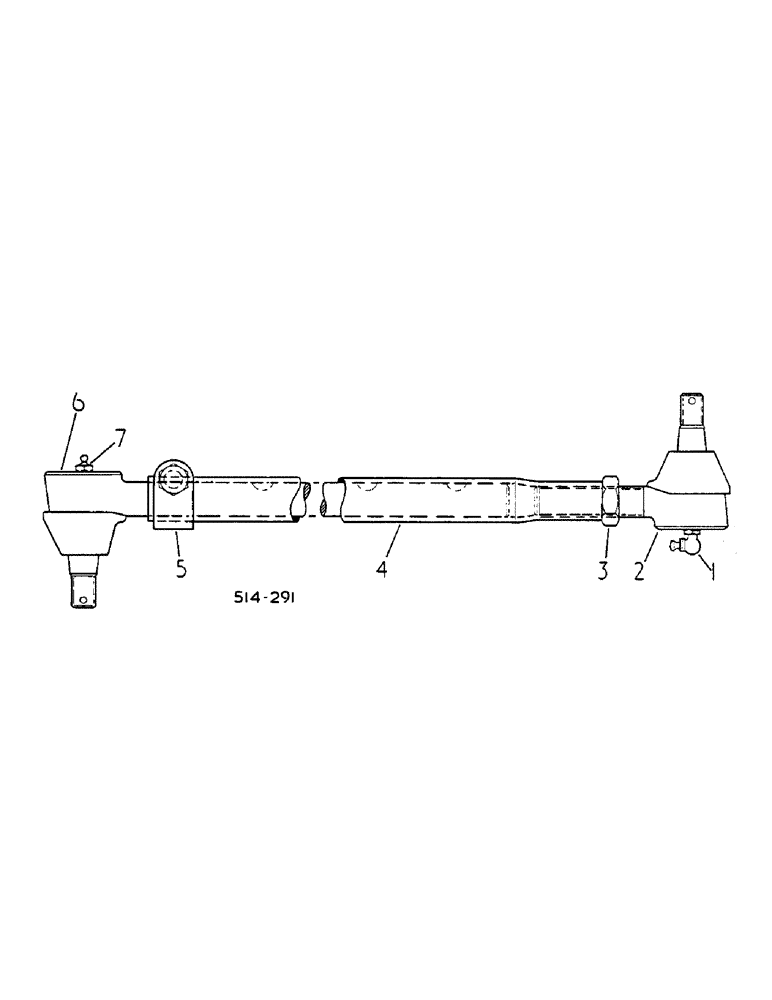

Запчасти Case IH 584 (14-016) - TIE ROD ASSEMBLY, 67528C91 Suspension

67528C91

ROD

ASSY, ADJ TIE

2шт.

1

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

2

527653R91

ROD

END ASSY, R H, INCLUDES NUT AND PIN

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

3

390686R1

JAM NUT

11/16-18 HEX JAM

1шт.

4

67529C1

TUBE,0.766" ID, 1.005" OD, 16.21" Length

1шт.

5

43747D

CLAMP

INCLUDES SCREW, WASHER AND NUT

1шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 X 1-7/8 HEX HD CAP

1шт.

9421096

LOCK WASHER,7/16"

Ext tooth

1шт.

271505

BODY

7/16

1шт.

6

65079C91

END

ASSY, L H, INCLUDES NUT AND PIN

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
