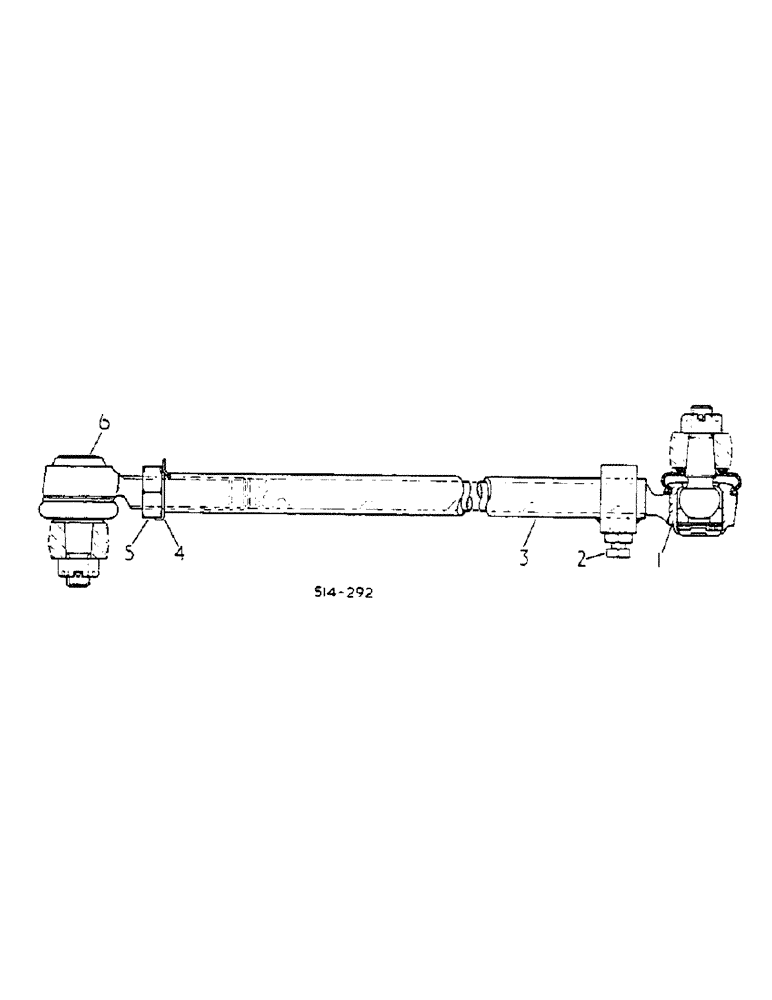

Запчасти Case IH 584 (14-014) - TIE ROD ASSEMBLY, 3118841R92 Suspension

3118841R92

ROD

ADJ TIE

2шт.

3116321R92

ROD

ADJ TIE, OPTIONAL, INCLUDES PIN

1шт.

103385

COTTER PIN,1/8" x 1"

2шт.

1

3116406R2

END ASSY.

SOCKET, OUTER

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

1шт.

2

3116410R1

LOCK NUT

1шт.

3

3116408R1

TUBE,20.75 mm ID, 28 mm OD, 412 mm Length

ROD, INTERMEDIATE AND RISER ASSY

1шт.

4

3116411R1

LOCK WASHER

TAB

1шт.

5

3116412R1

LOCK NUT

1шт.

6

3116407R2

BALL JOINT

SOCKET ASSY, INNER

1шт.
