Запчасти Case IH 584 (14-010) - FRONT WHEEL HUB, BEARINGS AND CAP, FRONT AXLE, STRAIGHT, HEAVY DUTY, INDUSTRIAL TRACTORS Suspension

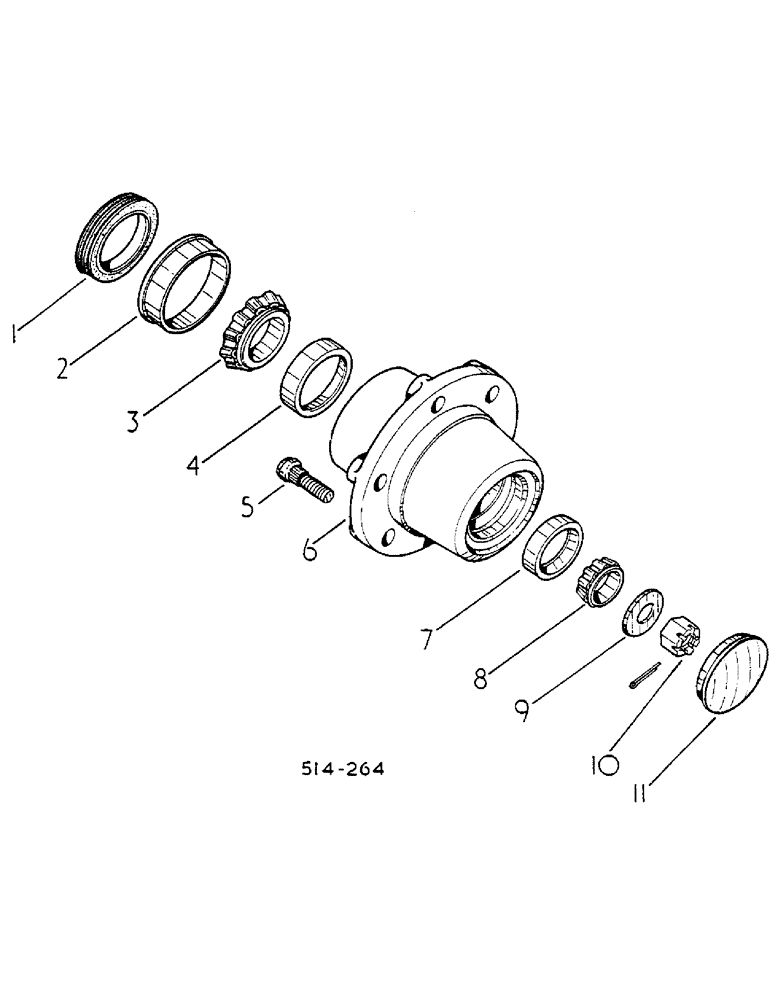

Схема запчастей Case IH 584 - (14-010) - FRONT WHEEL HUB, BEARINGS AND CAP, FRONT AXLE, STRAIGHT, HEAVY DUTY, INDUSTRIAL TRACTORS Suspension
4
6
5
8
7
11
10
3
9
1
2

Артикул

Название

Примечание

Количество

1

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

FRONT WHEEL DUST

2шт.

2

67328C1

SEALING RING

SEALRING WEAR

2шт.

3

400987C91

BEARING ASSY,1.7817" ID x 2.892" OD x 0.77, 0.62"

ASSY, INNER

2шт.

3

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

ASSY, INNER, OPTIONAL

2шт.

4

400988C1

BEARING, CUP

Inner

2шт.

4

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

INNER, OPTIONAL

2шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting, Includes nuts

12шт.

483879R1

NUT

WHEEL

12шт.

6

67527C91

HUB ASSY.

FRONT WHEEL

2шт.

7

538491R1

BEARING, CUP

Outer

2шт.

7

536054R1

BEARING CUP,60mm OD x 11.94mm W

OUTER CUP, OPTIONAL

2шт.

8

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

ASSY, OUTER

2шт.

8

538492R91

BEARING CONE

ASSY, OUTER, OPTIONAL

2шт.

9

3118706R1

WASHER

OUTER BEARING RETAINER

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

3/4-16 SLT HEX, INCLUDES PINS

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

2шт.

11

612884R1

HUB CAP

FRONT WHEEL HUB

2шт.

Выбрано товаров: 17
