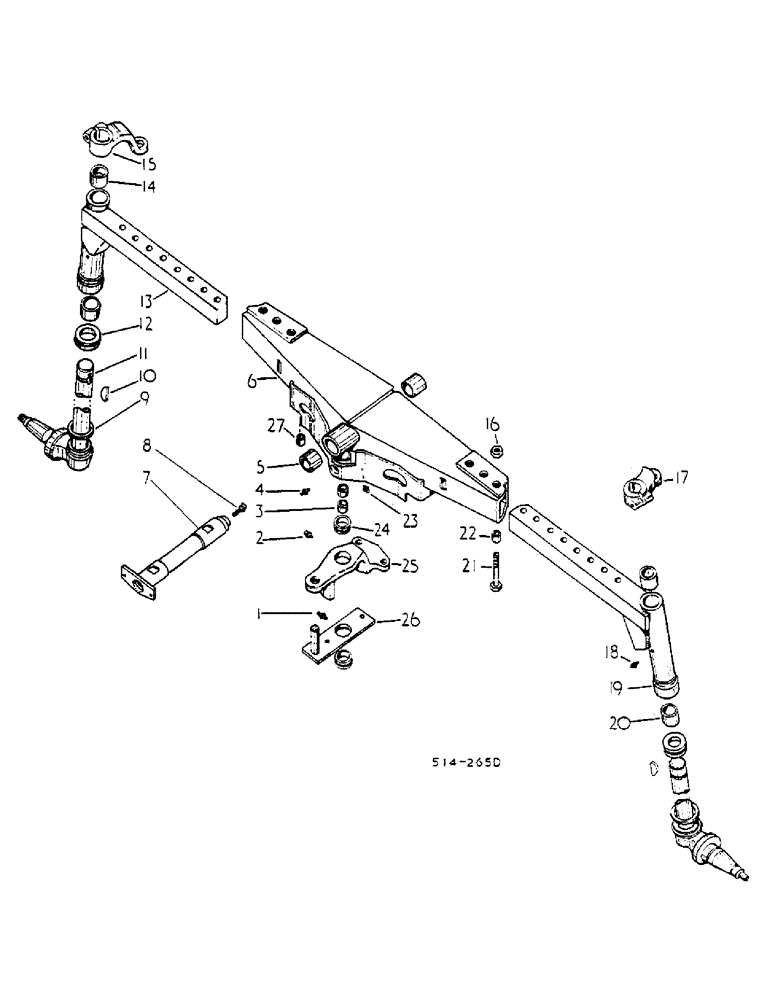

Запчасти Case IH 584 (14-007) - FRONT AXLE, STRAIGHT, HEAVY DUTY Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

405574R1

BUSHING

SUPPORT

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING 1/4 65 DEG ANGLE DRIVE TYPE

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

PIVOT

2шт.

6

3116435R92

AXLE, FRONT

ASSY, ON ORDER R91, ORDER 3116435R92 W/CLEVIS 3125306R1, PIN 3125305R1 AND BUSHING 3125304R1

1шт.

7

539128R1

SHAFT ASSY.

FRONT AXLE PIVOT, INCLUDES SCREWS

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

8

273352

SCREW

LUBRICATOR FITTING 1/8-27 PTF 90 DEG ANGLE LUB

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

67535C91

KNUCKLE

ASSY. STEERING, LOW SPINDLE

2шт.

11

67526C91

KNUCKLE

ASSY. STEERING, HIGH SPINDLE

2шт.

12

405831R91

BEARING

STEERING KNUCKLE THRUST

2шт.

12

369131R91

THRUST BEARING

STEERING KNUCKLE THRUST

2шт.

12

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

STEERING KNUCKLE THRUST, OPTIONAL

2шт.

13

3116437R91

EXTENSION ASSY.

FRONT AXLE R H, HIGH SPINDLE

1шт.

13

3116580R91

EXTENSION ASSY.

FRONT AXLE R H, LOW SPINDLE

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

STEERING KNUCKLE R H, INCLUDES NUT AND SCREW

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

3121363R1

NUT

FRONT AXLE

4шт.

17

67524C1

ARM

STEERING KNUCKLE L H, INCLUDES SCREW AND NUT

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

18

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING 1/4 DRIVE TYPE STR LUB

2шт.

19

3116436R91

EXTENSION ASSY.

FRONT AXLE L H, HIGH SPINDLE

1шт.

19

3116579R91

EXTENSION ASSY.

FRONT AXLE L H, LOW SPINDLE

1шт.

20

376099R1

BUSHING

2шт.

21

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

1шт.

22

NOT APPLICABLE

1шт.

23

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

24

379748R1

BUSHING

2шт.

25

67499C91

ARM ASSY.

P S CENTRE

1шт.

26

405580R11

BAR ASSY.

PC CYL, INCLUDES STRIP AND SCREWS

1шт.

679761C1

PLATE

STRIP, STEERING CENTRE ARM BOLT LOCK

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

27

3125304R1

BUSHING

SPRING STEEL

1шт.
