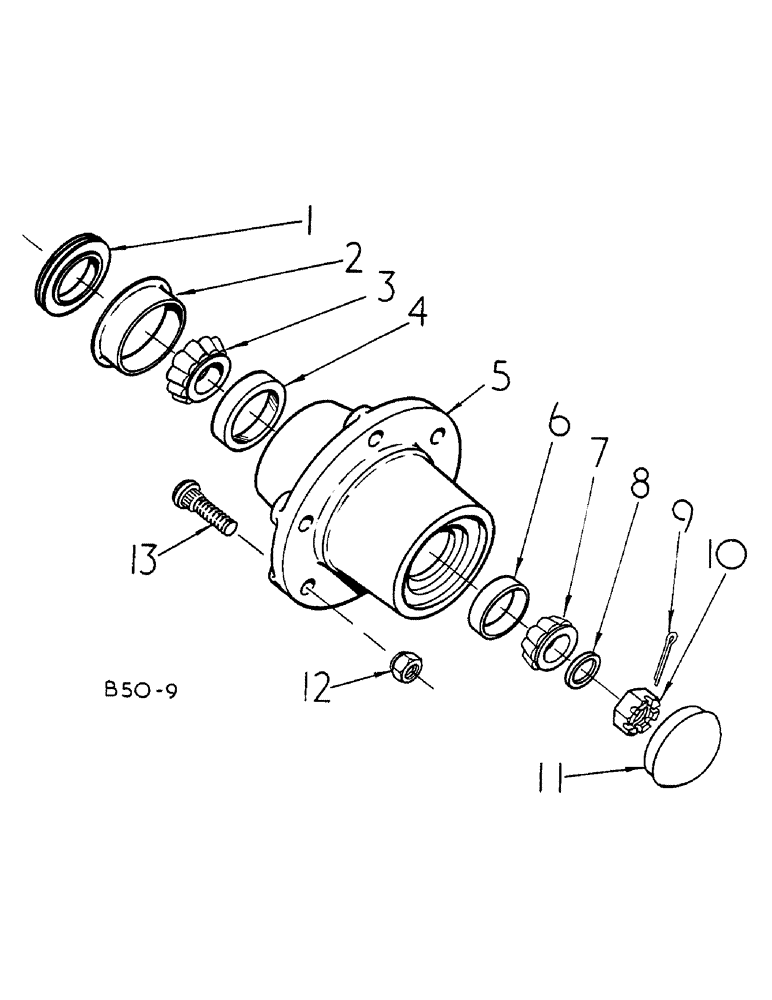

Запчасти Case IH 584 (14-005) - FRONT WHEEL HUB, BEARINGS AND CAP Suspension

1

405835R91

SEAL

FRONT WHEEL DUST

2шт.

1

530104R91

SEAL

FRONT WHEEL DUS, OPTIONAL

2шт.

2

406295R2

RING

WEAR

2шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

ASSY, INNER

2шт.

3

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

ASSY, INNER, OPTIONAL

2шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

2шт.

4

371898R1

BEARING, CUP

Inner, Optional

2шт.

5

406294R21

HUB ASSY.

FRONT WHEEL

2шт.

6

371883R1

BEARING CUP

Outer

2шт.

6

371908R1

BEARING CUP

Outer - Optional

2шт.

7

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Outer

2шт.

7

371907R91

ROLLER BEARING,0.8437" ID x 1.9687" OD x 0.72"

ASSY, OUTER CONE, OPTIONAL

2шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

OUTER BEARING RETAINER

2шт.

9

108643

COTTER PIN,5/32" x 1 3/8"

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

3/4-16 SLT HEX

2шт.

11

612884R1

HUB CAP

FRONT WHEEL HUB

2шт.

12

483879R1

NUT

WHEEL

12шт.

13

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting

12шт.
