Запчасти Case IH 584 (12-097) - LUB OIL FILTER Power

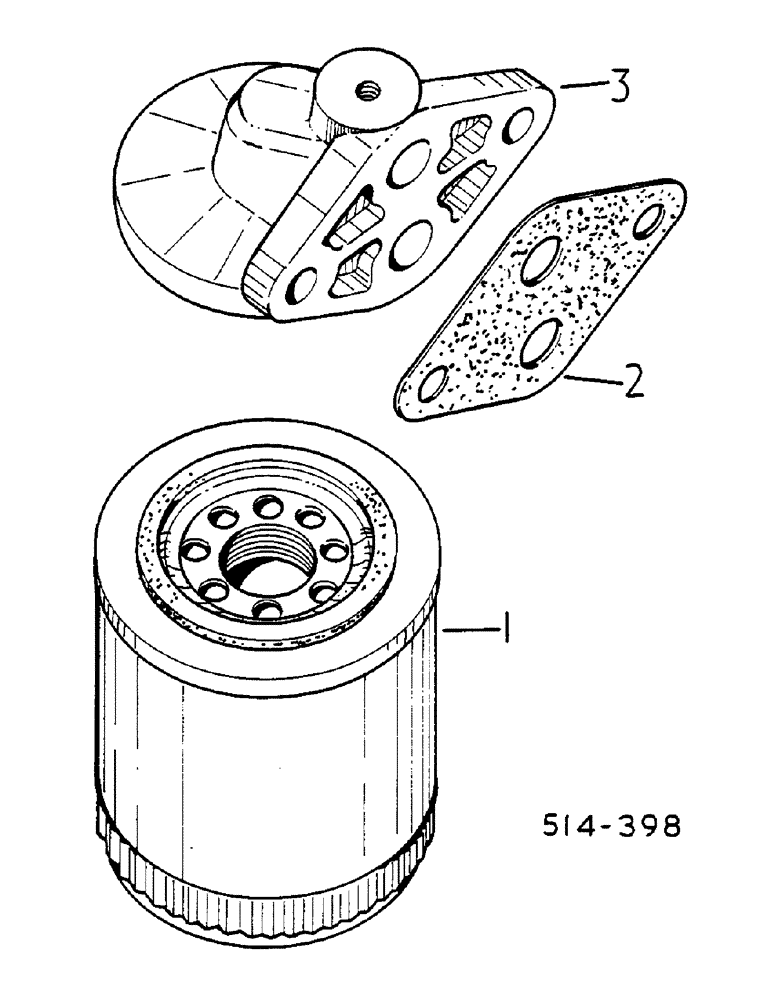

Схема запчастей Case IH 584 - (12-097) - LUB OIL FILTER Power
2
3
1

Артикул

Название

Примечание

Количество

1

3136046R93

FILTER, ENGINE OIL

FILTER, OIL

1шт.

1

398080R2

ENGINE OIL FILTER

OIL, OPTIONAL

1шт.

2

3055237R1

GASKET

OIL FILTER SOCKET

1шт.

3

3136047R1

HEAD

SOCKET, OIL FILTER, INCLUDES SCREWS, DISCS AND PLUG

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3144513R1

SPRING WASHER

DISC, SPRING

2шт.

444687

PLUG,Hex Soc, 1/8"-27

Pipe, For blanking off oil pressure switch

1шт.

Выбрано товаров: 7
