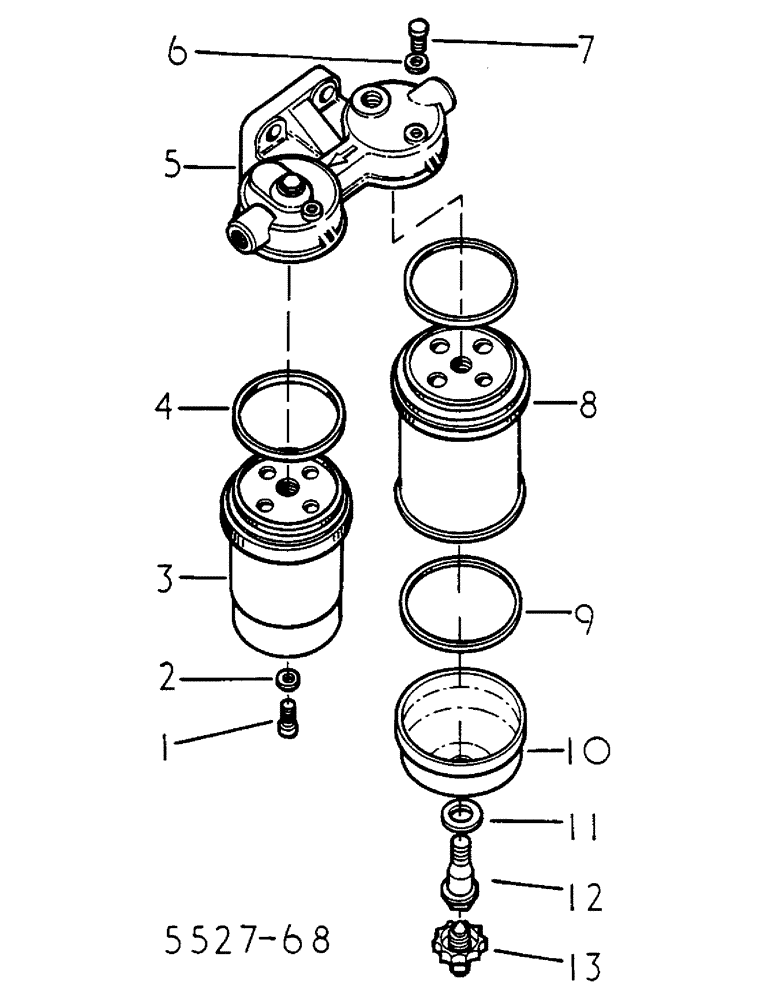

Запчасти Case IH 584 (12-084) - TWIN FUEL FILTER, BOSCH, S/N 318210 UP Power

3218705R91

FILTER ASSY

TWIN FUEL

1шт.

1

3144780R1

SCREW

1шт.

2

933696R1

SEALING RING,M6 x 10 x 1

1шт.

3

3218794R91

FILTER

ELEMENT, KIT SERVICE

1шт.

4

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

PACKING

1шт.

5

3218898R1

HEAD

FILTER

1шт.

6

757760R1

RING

PACKING

1шт.

7

3144780R1

SCREW

2шт.

8

3218793R91

FILTER

ELEMENT, KIT

1шт.

9

3132191R1

RING

PACKING

1шт.

10

3132197R1

BOWL

GLASS

1шт.

11

3132192R1

RING

PACKING

1шт.

12

3132194R1

SCREW,M12 x 1.5 x 68mm

HOLLOW

1шт.

13

3132196R1

SCREW

DRAIN

1шт.
