(12-070) - VALVE HOUSING COVER

Запчасти Case IH 584 (12-070) - VALVE HOUSING COVER Power

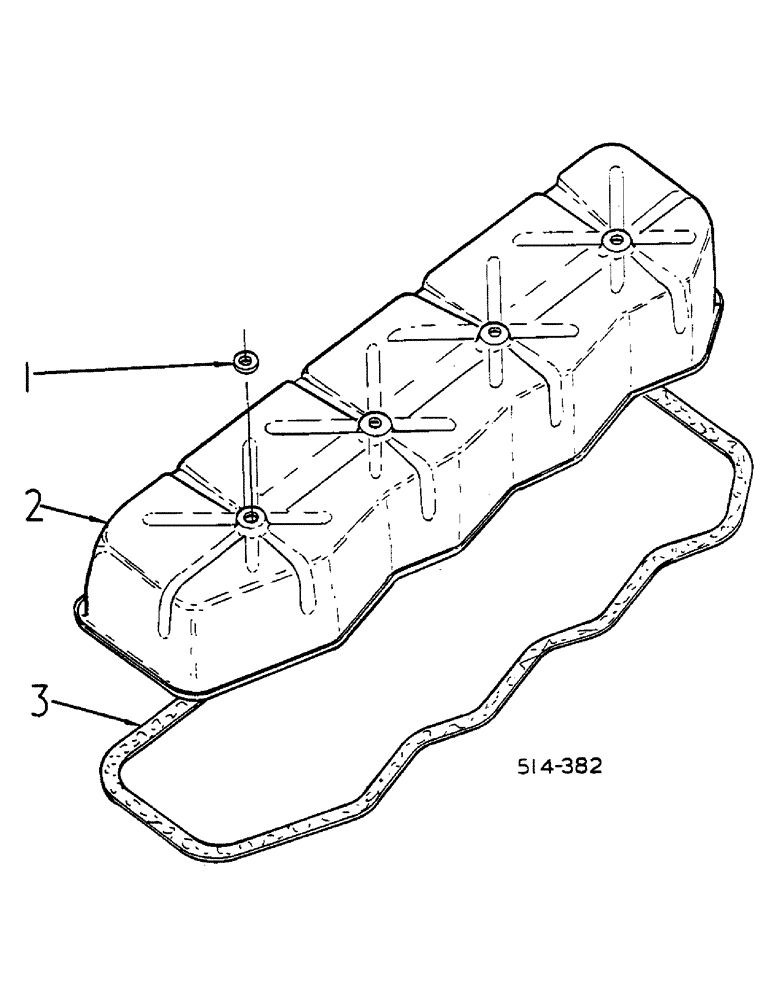

Схема запчастей Case IH 584 - (12-070) - VALVE HOUSING COVER Power
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

VALVE HOUSING COVER SCREW

4шт.

2

3055181R1

COVER

ASSY, VALVE HOUSING, INCLUDES NUTS, WASHERS AND STUDS

1шт.

425-115

NUT,5/16"-24, G5

4шт.

3138637R1

CUP WASHER

WASHER, VALVE HOUSING COVER

4шт.

305223R1

SPARE PART STUD CYL HEAD COVER

4шт.

3

3138642R1

GASKET

1шт.
