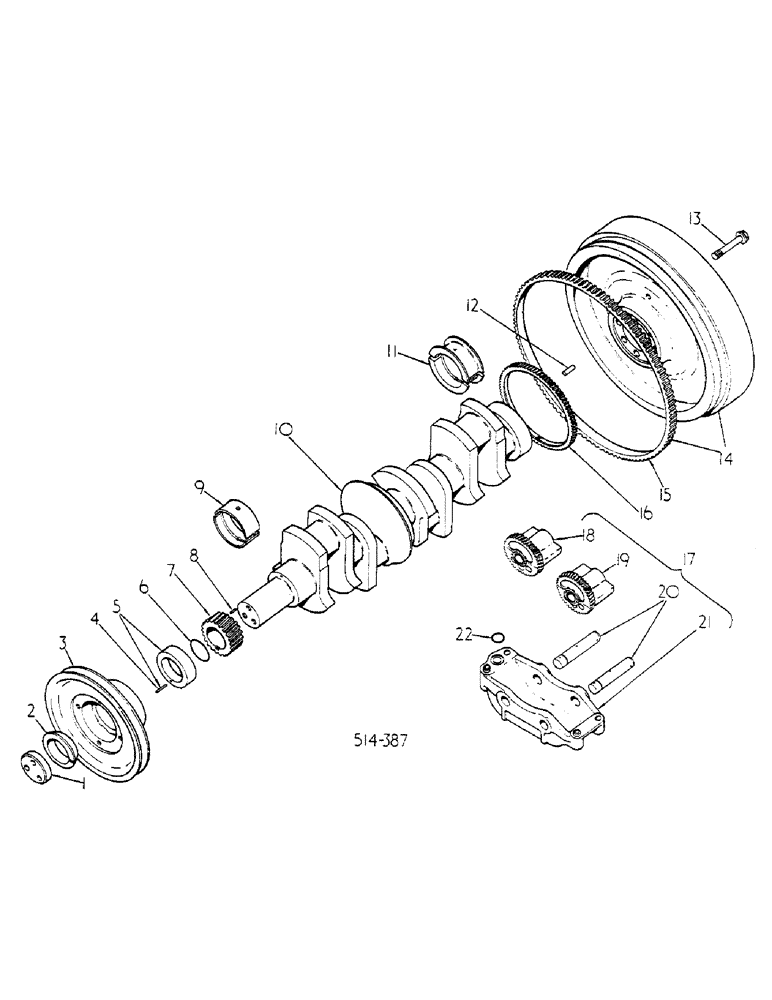

Запчасти Case IH 584 (12-065) - CRANKSHAFT, FLYWHEEL AND BEARINGS Power

1

3055154R1

WASHER

PRESSURE, INCLUDES SCREWS

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3138874R1

BEARING WASHER

RING, CLAMPING

1шт.

3

3138838R2

PULLEY

CRANKSHAFT

1шт.

4

932681R1

DOWEL,4mm OD x 24mm L

Pin, groove

1шт.

5

RING ASSY, DISTANCE W/PIN, ORDER PACKAGE 3228133R91

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

7

3055028R1

PINION

GEAR, CRANKSHAFT

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

9

3055130R21

CRANKSHAFT BEARING

ASSY MAIN STD

1шт.

10

3132968R93

CRANKSHAFT BEARING

W/BEARINGS STD, CONSISTS OF 1 CRANKSHAFT, 1 GEAR - 3055028R1, 1 GEAR - 3136237R1, 1 PIN - 141244, 1 PIN - 932169R1, 1 BEARING - 3055129R21, 4 BEARINGS - 3055130R21, 4 BEARINGS - 3055351R91

1шт.

11

3055129R21

CRANKSHAFT BEARING

ASSY, MAIN STD

1шт.

12

NLS

NO LONGER SERVICED

DOWEL

1шт.

13

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel

7шт.

14

3136044R41

FLYWHEEL WITH GEAR

ASSY

1шт.

15

60883H

RING GEAR

1шт.

16

3136237R1

PINION

GEAR, BALANCER DRIVE

1шт.

17

3228366R91

BALANCER

ASSY CPTE, INCLUDES SCREWS AND WASHERSCONSISTS OF ITEMS 18 THRU 21

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 HEX HD

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

3218543R1

LOCK WASHER

7/16 LOCK

2шт.

3228372R91

BALANCING WEIGHT

SET, MATCHED, WEIGHTS ASSY, CONSISTS OF ITEMS 18 AND 19

1шт.

18

WEIGHT ASSY, IDLER, ORDER 3228372R91

1шт.

19

WEIGHT ASSY, DRIVE, ORDER 3228372R91

1шт.

20

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSY, WEIGHT

2шт.

21

3132875R41

HOUSING

ASSY, INCLUDES PINS

1шт.

932229R1

SPLIT PIN/SAFETY PIN

ROLL

2шт.

932229R1

SPLIT PIN/SAFETY PIN

ROLL

2шт.

22

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

3228133R91

SEAL KIT

PACKAGE, CRANKSHAFT OIL SEAL, NOT ILLUSTRATED, CONSISTS OF 1 RING, 1 SEAL, 1 RING - 713778R1, 1 INSTRUCTION

1шт.
