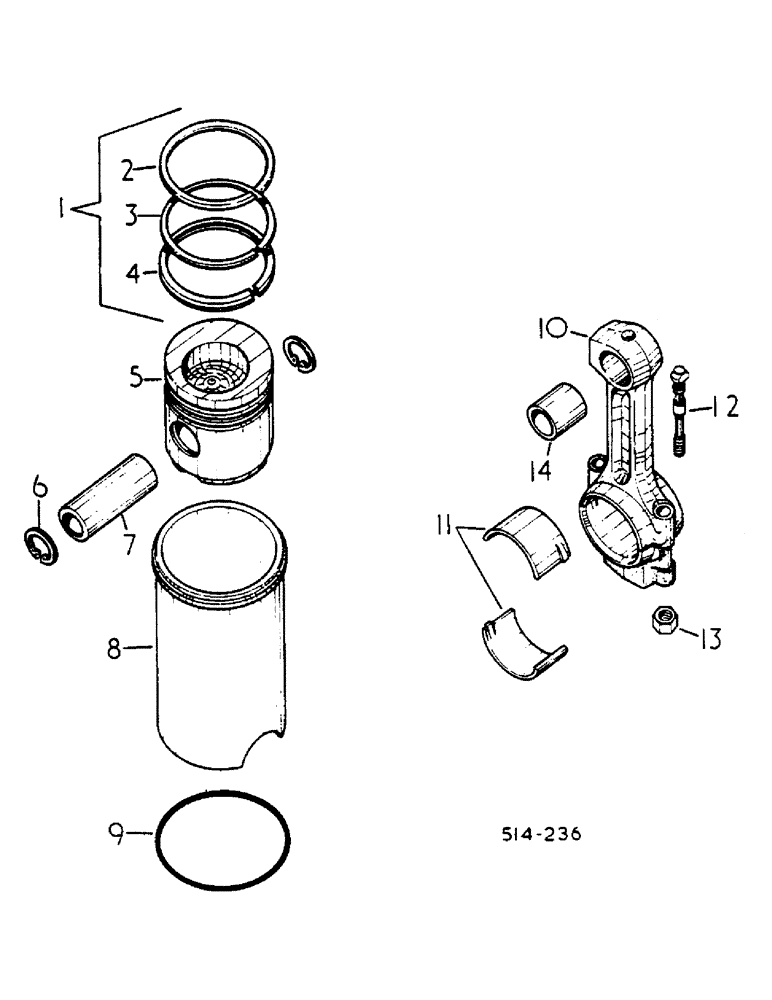

Запчасти Case IH 584 (12-048) - CONNECTING ROD, PISTON AND SLEEVE Power

1

3218416R91

PISTON RING SET

USED W/3 RING PISTONS

1шт.

2

RING, COMPRESSION, FIRST, USED W/3 RING PISTONS, ORDER SET 3218416R91

4шт.

3

RING, COMPRESSION, SECOND, USED W/3 RING PISTONS, ORDER SET 3218416R91

4шт.

4

RING, COMPRESSION, THIRD, USED W/3 RING PISTONS, ORDER SET 3218416R91, 3 PISTON RING

4шт.

6

3218758C95

PISTON ASSY, W/SLEEVE

4шт.

6

933327R1

SNAP RING,M36, Int

PISTON PIN RETAINER

8шт.

7

3055217R2

PISTON PIN

PISTON

4шт.

8

SLEEVE CYL, NOT SERVICED SEPARATELY

4шт.

9

3228344R1

SEALING RING,5mm Thk x 110mm ID

CYLINDER SLEEVE, BLACK W/FOUR RED STRIPES, UP TO ENG SERIAL NO 319017

4шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

CYLINDER SLEEVE, BLACK W/FOUR GOLD STRIPES, ENG SERIAL NO 319018 UP

4шт.

10

3055029R24

CONNECTING ROD

ASSY, W/TWO BOLTS AND BUSHING

4шт.

11

3055351R91

BEARING ASSY

ASSY, CONNECTING ROD

4шт.

12

3055033R11

BOLT

Connecting rod w/nut

8шт.

13

NUT, CONNECTING ROD BOLT, NOT SERVICED SEPARATELY

8шт.

14

3132018R1

BUSHING

PISTON PIN

4шт.
