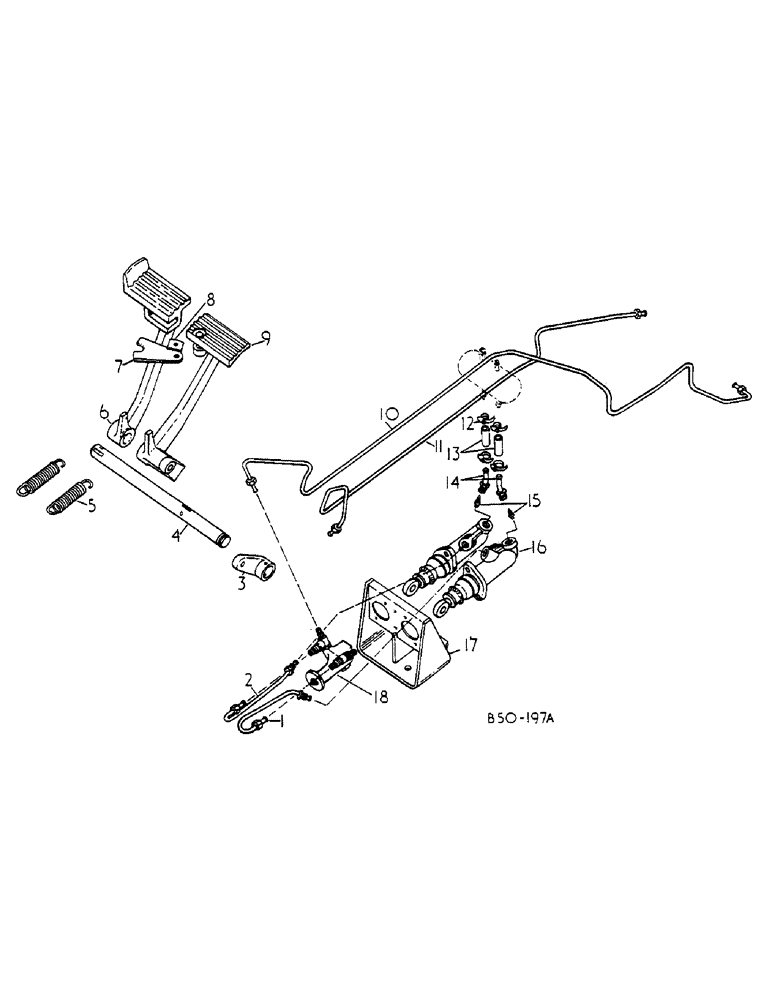

Запчасти Case IH 584 (04-015) - BRAKE CYLINDERS AND CONNECTIONS, 6446 UP, 584 6405, 258 594 TO 597, 599 UP (5.1) - BRAKES

1

530851R2

TUBE

EQUALISER L H

1шт.

2

530852R1

TUBE

EQUALISER R H

1шт.

3

3125228R1

ARM

RH BRAKE PEDAL, INCLUDES PIN

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

up to s/n 9486, 258 up to s/n 807 5/16" x 1 1/2", Coiled

1шт.

3

1500755C1

ARM

RH BRAKE PEDAL, INCLUDES PIN AND KEY

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1/4" x 1 1/2", Coiled

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

WOODRUFF 1/4 X 7/8 - S/N 9487 UP, 258 S/N 808 UP

1шт.

4

3125229R1

SHAFT

PEDAL SUPPORT, SYNCHROMESH DRIVE TRACTORS, UP TO S/N 9486, 258 UP TO S/N 807

1шт.

4

1500753C1

SHAFT

PEDAL SUPPORT, S/N 9487 UP, 258 S/N 808 UP

1шт.

5

3125230R1

SPRING

BRAKE PEDAL RETURN

2шт.

6

399741R4

PEDAL

RH BRAKE, INCLUDES PIN

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

up to s/n 9486, 258 up to s/n 807 5/16" x 1 3/4", Coiled

1шт.

6

1500752C1

PEDAL

RH BRAKE, INCLUDES PIN, KEY, BOLT, NUT AND WASHER

1шт.

19795

PIN 1/4 X 1-3/4 HV COILED SPRING

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

WOODRUFF 1/4 X 7/8 - S/N 9487 UP, 258 S/N 808 UP

1шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

7

43751DD

PLATE, BRAKE PEDAL LOCK, INCLUDES RIVET

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 X 1-1/4 SMALL B HD SOLID

1шт.

8

51293D

SPRING

BRAKE PEDAL LOCK TENSION

1шт.

9

3125226R91

PEDAL ASSY.

L H BRAKE, INCLUDES BOLT, NUT, WASHER AND FITTING

1шт.

Bushing used to mount 3125226R91 is 539834R1 per notes in catalogs. 9/27/01 BW CAM

1шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

10

66093C1

BRAKE LINE

BRAKE LH, 584

1шт.

10

3129260R1

TUBE ASSY.

BRAKE LH, 585

1шт.

11

66094C1

BRAKE LINE

BRAKE RH

1шт.

12

3125239R1

COLLAR

WORM DRIVE HOSE

4шт.

13

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

14

3125836R1

TUBE ASSY.,23, 35 mm Length

BRAKE CYL SUPPLY

2шт.

15

537849R2

SCREEN

AND ORIFICE ASSY, BRAKE RESERVOIR TUBE

2шт.

16

527546R92

CYLINDER ASSY, BRAKE MASTER, INCLUDES HOSE INSULATOR AND SEAL KIT

2шт.

71925C1

HOSE

SPARE PART MASTER BRAKE CYL RETAINING

1шт.

71926C1

BELLOWS

INSULATOR, BRAKE CYL DUST

1шт.

3125824R1

SEAL KIT

KIT, SEAL

1шт.

17

3125224R1

BRACKET

ASSY, BRAKE CYL MOUNTING, SYNCHROMESH DRIVE TRACTORS, INCLUDES SCREWS, WASHERS AND NUTS

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

1030258

NUT 5/16-24 HEX

4шт.

103320

LOCK WASHER,5/16"

4шт.

18

530374R92

VALVE

ASSY BRAKE EQUALISER, INCLUDES WASHERS, TEES, SCREWS AND EQUALISER VALVE O-RING AND SEAL SERVICE PACKAGE

1шт.

530373R1

WASHER

EQUALISER VALVE

2шт.

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

ADJ STR THRU 90 DEG

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

68434C3

SEAL PACKAGE

EQUALISER VALVE O-RING AND SEAL SERVICE

1шт.
