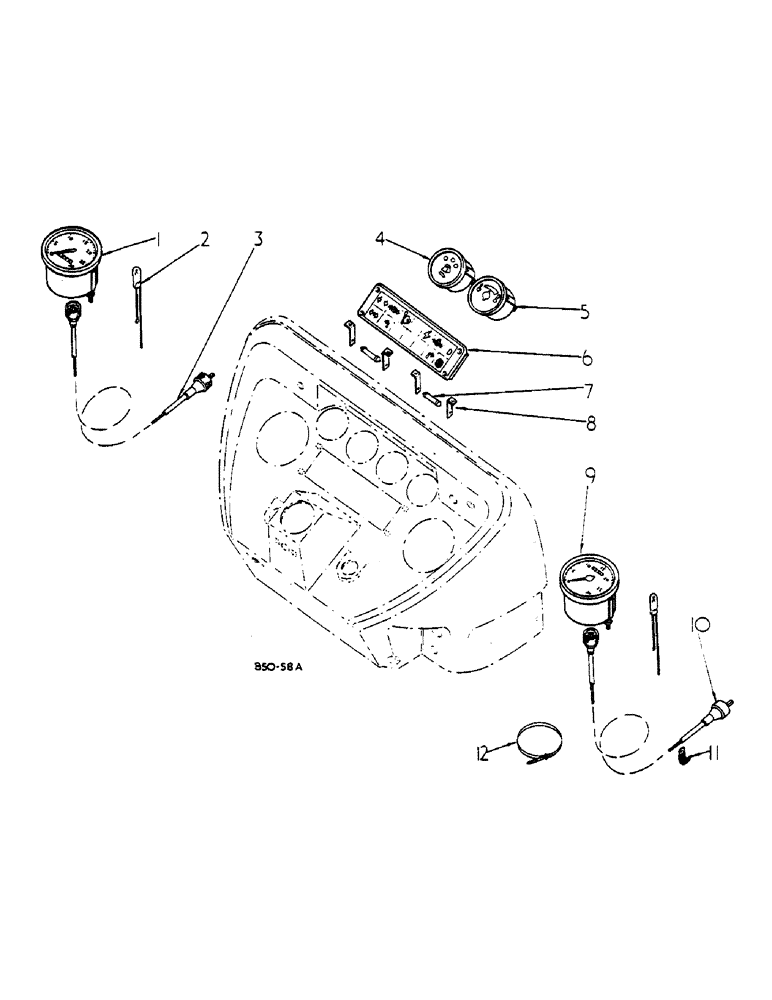

Запчасти Case IH 584 (11-004) - INSTRUMENTS Instruments

1

3121926R91

TACHOMETER

1шт.

1

3121927R1

TACHOMETER

1шт.

1

528364R92

TACHOMETER

OPTIONAL

1шт.

1093213R91

PRODUCT GRAPHIC, SPEED CHART MPH, FOR MACHINES W/BR DRIVE TRAIN

1шт.

1093214R91

PRODUCT GRAPHIC, SPEED CHART KPH, FOR MACHINES W/BR DRIVE TRAIN

1шт.

1093219R91

PRODUCT GRAPHIC, SPEED CHART MPH, FOR MACHINES W/AR DRIVE TRAIN

1шт.

1093220R91

PRODUCT GRAPHIC, SPEED CHART KPH, FOR MACHINES W/AR DRIVE TRAIN, FOR MACHINES W/12 4/11-36, 13 6/12-36, 13 6/12-38, 16 9R30, 13 6R36 REAR TYRES

1шт.

1093215R91

PRODUCT GRAPHIC, SPEED CHART MPH, FOR MACHINES W/AR DRIVE TRAIN

1шт.

1093216R1

PRODUCT GRAPHIC

PRODUCT GRAPHIC, SPEED CHART KPH, FOR MACHINES W/AR DRIVE TRAIN

1шт.

1093217R91

DECAL

PRODUCT GRAPHIC, SPEED CHART MPH, FOR MACHINES W/BR DRIVE TRAIN

1шт.

1093218R91

PRODUCT GRAPHIC, SPEED CHART KPH, FOR MACHINES W/BR DRIVE TRAIN, FOR MACHINES W/14 9/13-28, 14 9/13-30, 16 9/14-30 REAR TYRES

1шт.

2

3123661C1

LAMP ASSY, TACHOMETER/SPEEDOMETER, INCLUDES LAMPS

2шт.

529233R1

LAMP

12V-3W WEDGE-TYPE CAPLESS

8шт.

3

529234R1

CABLE,1480.32mm L

CABLE ASSY, TACHO DRIVE, INCLUDES STRAP

1шт.

289862C2

STRAP, TACHO CABLE

1шт.

3

537494R91

FLEXIBLE DRIVE SHAFT

CABLE ASSY, TACHO DRIVE, SUPER DE-LUXE CAB

1шт.

4

3121239R1

FUEL GAUGE

ASSY, FUEL, A C DELCO

1шт.

4

3129840R1

FUEL GAUGE

ASSY, ICKNIELD, OPTIONAL

1шт.

5

3121240R1

ELECTRICAL GAUGE

ASSY, WATER TEMP, A C DELCO

1шт.

5

3127959R1

ELECTRICAL GAUGE

ASSY, WATER TEMP, ICKNIELD, OPTIONAL

1шт.

6

3121636R2

HOLDER

WARNING LIGHT BULT, INCLUDES SCREWS, NUTS AND LAMPS

1шт.

3121718R1

SCREW

NO 6-32 X 5/8 CS HD

4шт.

3121717R1

LOCK NUT

LOKUT

4шт.

529233R1

LAMP

12V-3W WEDGE TYPE CAPLESS

6шт.

7

710196R1

BULB,C5W, 12V, 5W

Festoon

2шт.

8

3121705R1

CONTACT HOUSING

LAMP, INCLUDES SCREWS AND TERMINAL

4шт.

3121704R1

SCREW

NO 4-40 X 5/16 SLT FIL HD

4шт.

3121703R1

TERMINAL CONNECTOR

1/4 BLADE

4шт.

9

3121968R91

SPEEDOMETER

1шт.

9

3121969R91

SPEEDOMETER

ASSY, OPTIONAL, USED W/12/53 BEVEL SET AND 14 9/13-28 REAR TYRES

1шт.

9

3121966R91

SPEEDOMETER

1шт.

9

3121967R91

SPEEDOMETER

ASSY, OPTIONAL, USED W/12/53 BEVEL SET AND 13 6/12-36, 16 9/14 -30 REAR TYRES

1шт.

9

3123431R1

CABLE

SPEEDO TO HEAT IND EART, FLYING LEAD

1шт.

10

529235R2

FLEXIBLE DRIVE SHAFT

CABLE ASSY

1шт.

11

395228R1

CABLE CLIP

DRIVE, INCLUDES WASHER AND NUT

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

12

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP SPEEDO DRIVE

1шт.
