Запчасти Case IH 584 (10-024) - AUXILIARY VALVE CONTROLS, DE-LUXE CAB (07) - HYDRAULICS

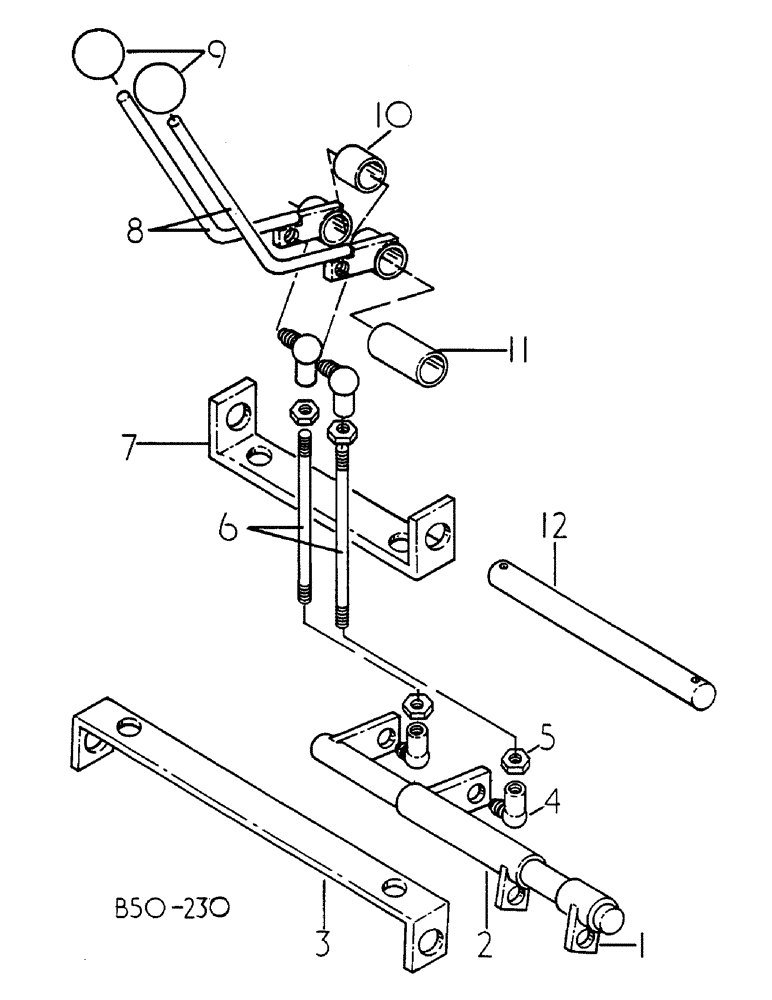

Схема запчастей Case IH 584 - (10-024) - AUXILIARY VALVE CONTROLS, DE-LUXE CAB (07) - HYDRAULICS
1
3
9
4
2
5
8
7
11
10
12
6

Артикул

Название

Примечание

Количество

1

3125627R1

SHAFT

INTERMEDIATE CPTE, INCLUDES PIN

1шт.

3125616R1

PIN

3 X 25 COTTER

2шт.

2

3125628R1

TUBE

INTERMEDIATE ARM

1шт.

3

3125625R1

BRACKET

INTERMEDIATE ARM, INCLUDES BOLTS AND WASHERS

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

934488R1

LOCK WASHER,Ext Tooth, M8

WASHER 5/16

2шт.

4

3125525R1

JOINT

BALL, INCLUDES WASHERS

2шт.

95-11028

WASHER,1/4"

1/4

2шт.

5

30208

FITTING

NUT M6

4шт.

6

3125634R1

ROD

TIE

2шт.

7

3125624R1

BRACKET

SPARE PART REMOTE CONTROL, INCLUDES BOLTS AND WASHERS

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

934488R1

LOCK WASHER,Ext Tooth, M8

WASHER 5/16

2шт.

8

3125632R1

LEVER

SPARE PART

2шт.

9

3125633R1

KNOB

2шт.

10

3125630R1

SPACER

15 MM

1шт.

11

3125629R1

SPACER

SPARE PART 44 MM

1шт.

11

SPACER, 25 MM, REMOTE CONTROL, NOT ILLUSTRATED

1шт.

12

3125626R1

SHAFT

REMOTE CONTROL

1шт.

Выбрано товаров: 19
