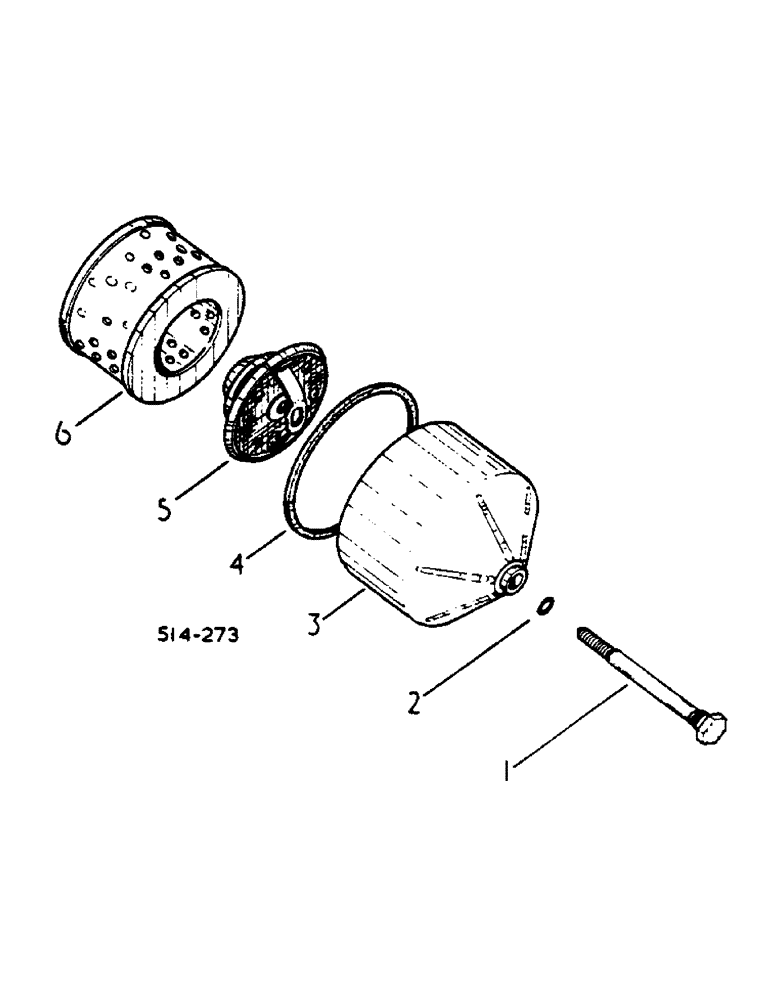

Запчасти Case IH 584 (10-016) - OIL FILTER (07) - HYDRAULICS

1

68202C1

BOLT

BOLT, CENTRE

1шт.

2

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 9/16 X 1/16, FILTER CASE SEAL

1шт.

3

68209R1

CASE, FILTER

1шт.

4

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

5

405464R2

VALVE

AND SCREEN ASSY, BY-PASS

1шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT ASSY, FURNISH OIL FILTER ELEMENT SERVICE PACKAGE

1шт.

530144R92

FILTER, ELEMENT

ELEMENT, FILTER PACKAGE, OIL, SERVICE, NOT ILLUSTRATED, CONSISTS OF 1 GASKET - 405462R1, 1 O-RING - 355966R1, 1 O-RING - 375271R1, 1 ELEMENT

1шт.
