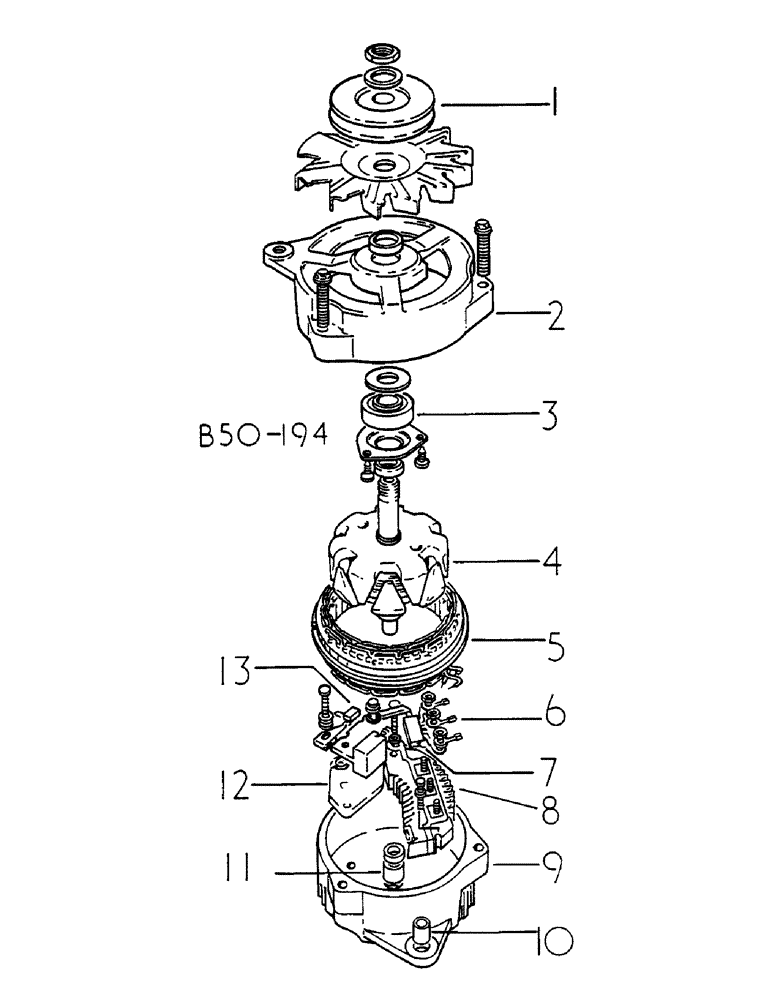

Запчасти Case IH 584 (08-060) - ALTERNATOR, AC DELCO (06) - ELECTRICAL

3129075R91

ALTERNATOR

1шт.

1

3129077R1

PULLEY

1шт.

2

3129060R1

FRAME

D E

1шт.

3

3129061

BEARING, D E

1шт.

4

3129062R1

ROTOR ASSY.

1шт.

5

3129063R1

STATOR

ASSY

1шт.

6

3129069R1

TERMINAL CONNECTOR

POSITIVE

1шт.

6

3129070R1

BLOCK

TERMINAL, INCLUDES CLIP

1шт.

3129071R1

CLIP

SOCKET

1шт.

7

3129064R1

RECTIFIER

ASSY, DIODE

1шт.

8

3129065R1

SUPPORT ASSY.

RECTIFIER AND INSULATOR

1шт.

9

3129072R1

FRAME ASSY

W/BUSHING, S R E

1шт.

10

3129073R1

BUSHING

1шт.

11

3129074R1

BEARING

ROLLERS S R E

1шт.

12

3129068R1

REGULATOR

SPARE PART ASSY

1шт.

13

3129066R1

BRUSH ASSY.

AND TERMINAL, INCLUDES SPRING

1шт.

3129067R1

SPRING

BRUSH

1шт.
