Запчасти Case IH 584 (06-008) - RADIATOR GRILLE Cooling

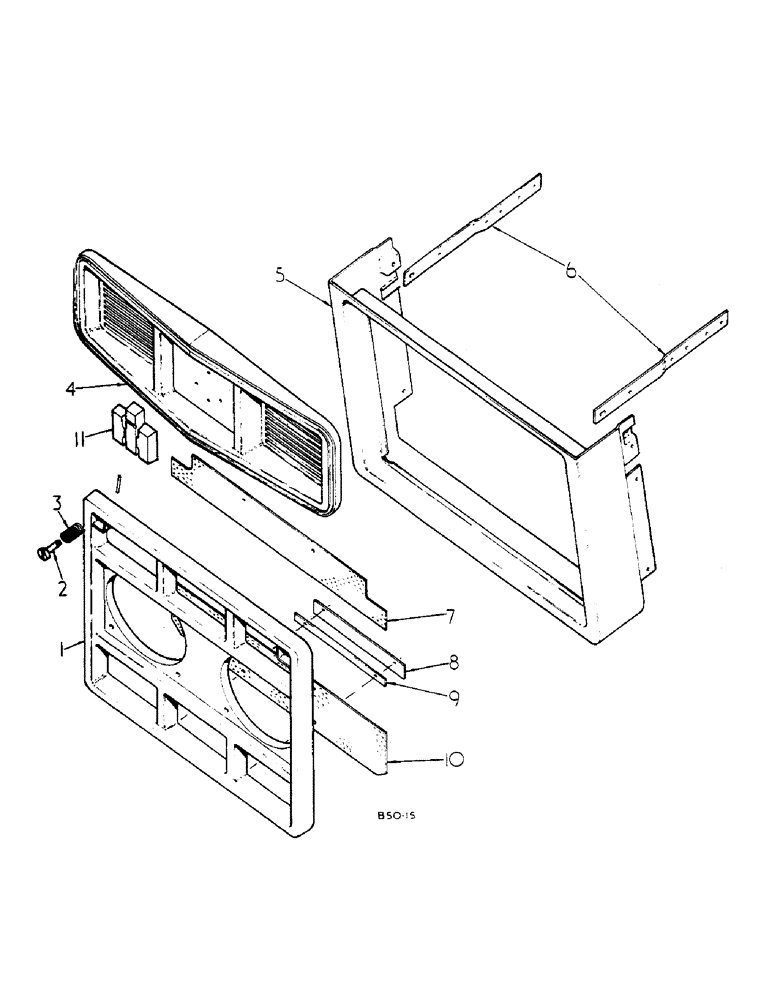

Схема запчастей Case IH 584 - (06-008) - RADIATOR GRILLE Cooling
9
5
4
1
2
7
8
11
10
3
6

Артикул

Название

Примечание

Количество

1

3121652R1

GRILLE ASSY

RADIATOR, HEADLIGHT LOW POSITION

1шт.

1

3121672R1

GRILLE

RADIATOR, HEADLIGHT HIGH POSITION

1шт.

2

3113470R1

PIN

LATCH GRILLE, INCLUDES PINS AND WASHERS

2шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

2шт.

Q397

WASHER

11/32 X 3/4 X 16 GA

2шт.

3

532180R1

SPRING

GRILLE LATCH

2шт.

4

3121633R1

GRILLE ASSY, UPPER, HEADLIGHT LOW POSITION

1шт.

4

3125076R1

GRILLE

ASSY, UPPER, 258/639 UP

1шт.

4

3121675R1

GRILLE ASSY

UPPER, HEADLIGHT HIGH POSITION

1шт.

4

3125075R1

GRILLE

ASSY, UPPER, 258/639 UP, INCLUDES NUTS AND WASHERS

1шт.

107377H

LOCK NUT,#10-32, GB

8шт.

120391

WASHER,#10

NO 10 X 50 X 036

8шт.

5

3121231R1

HOUSING

LOWER GRILLE, INCLUDES BOLTS, WASHERS AND NUTS

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

495-11053

WASHER,1/2", SAE

531 X 1 062 X 074

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

4шт.

6

3121232R1

SUPPORT

BAR, GRILLE TIE, INCLUDES BOLTS, WASHERS AND NUTS

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

6шт.

103319

LOCK WASHER,1/4"

6шт.

109084

NUT,1/4"-20, G5

2шт.

95-11028

WASHER,1/4"

281 X 625 X 051

2шт.

7

3121655R1

GRILLE

SCREEN, UPPER, INCLUDES SCREWS

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX WASHER ADPT

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX RANDOM SLTD, OPTIONAL

4шт.

8

3121653R1

BRACKET

GRILLE RETAINING

1шт.

9

3121654R1

BAR

GRILLE RETAINING, INCLUDES SCREWS AND WASHERS

1шт.

436750R1

SCREW

10-32 X 1/2 PAN HD SLT MACH

2шт.

23505R1

WASHER

9/32 X 5/8 X 16 GA CZ

2шт.

10

3121656R1

GRILLE

SCREEN, LOWER, INCLUDES SCREWS

1шт.

401490R1

RING

SCREW 10-24 X 1/2 HEX WASHER ADPT

2шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX RAMDOM SLTD, OPTIONAL

2шт.

10

3121673R1

SCREEN

GRILLE, INCLUDES SCREWS

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX WASHERHD TAP

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX RAMDOM SLTD, OPTIONAL, HEADLIGHT HIGH POSITON

4шт.

11

120397C1

EMBLEM CASE/IH

GRILLE, INCLUDES WASHERS AND SCREWS

1шт.

120391

WASHER,#10

NO 10 PLAIN

4шт.

187-1091

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

NO 10-16 X 3/8 ZND PAN HD CR RECESS TAP TYPE B, FRONT GRILLE LOW POSITION

4шт.

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

NO 10-16 X 1/2 ZND PAN HD CR RECESS TAP TYPE B, FRONT GRILLE HIGH POSITION

4шт.

Выбрано товаров: 39
