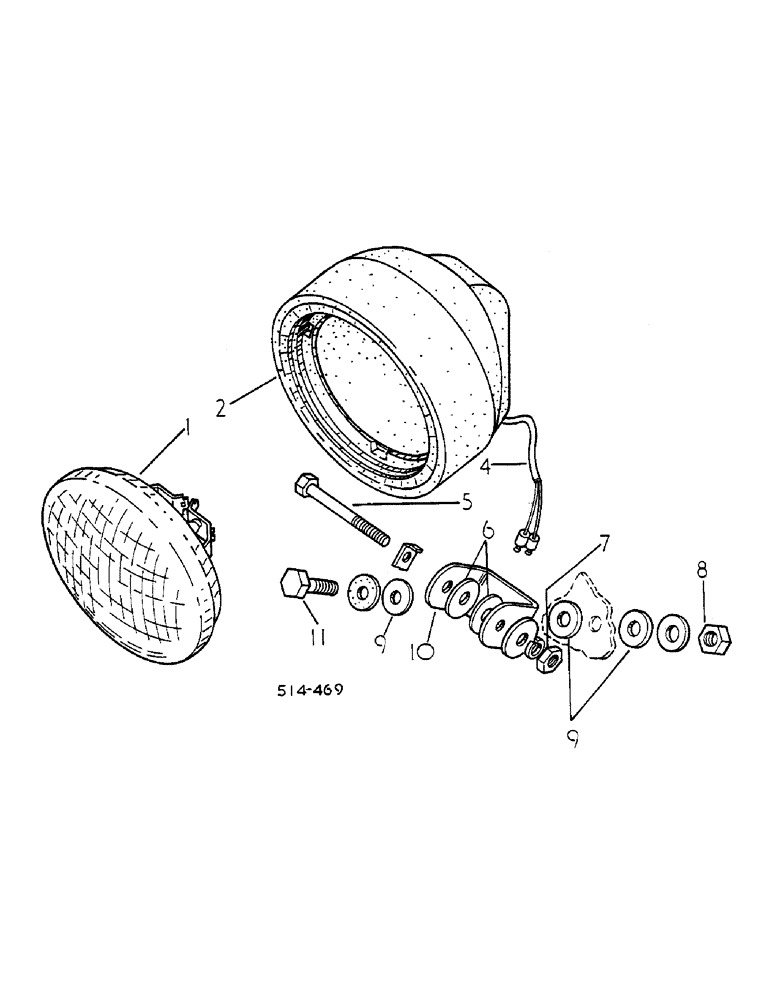

Запчасти Case IH 584 (08-037) - PLOUGH LAMP, 584/7810 UP, 258/664 UP (06) - ELECTRICAL

1

390756R91

LAMP

SEALED BEAM

1шт.

2

3125880R1

HOUSING

LAMP

1шт.

3

NSS

NOT SOLD SEPARAT

HARNESS, CABLE

1шт.

4

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT 1/4 UNF X 2 HEX HD

1шт.

4

3072945R1

WASHER

TAB

1шт.

5

3112690R1

WASHER

NYLON

2шт.

6

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4 UNF HEX, INCLUDES WASHERS

1шт.

16559R1

WASHER,1/4"

17/64 X 5/8

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

7

231-1446

NUT,3/8" - 16, Gr 5

Includes washer

1шт.

120394

WASHER,3/8", SAE

FLAT STEEL

1шт.

8

3112401R1

WASHER

NYLON

3шт.

9

3108515R1

SUPPORT

BRACKET, LAMP

1шт.

10

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Includes Washer

1шт.

120394

WASHER,3/8", SAE

FLAT STEEL

1шт.

3125881R1

BRACKET

PLOUGH LAMP, INCLUDES SCREWS, NOT ILLUSTRATED

1шт.

24374R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

Deluxe lighting, Not illustrated

4шт.

531625R1

GROMMET

PLOUGH LAMP CABLE, NOT ILLUSTRATED

1шт.

3115463R1

GROMMET

FENDER SIDE SHEET TOP, FLAT TOP FENDERS, NOT ILLUSTRATED

2шт.
