Запчасти Case IH 584 (08-010) - ALTERNATOR AND CONNECTIONS (06) - ELECTRICAL

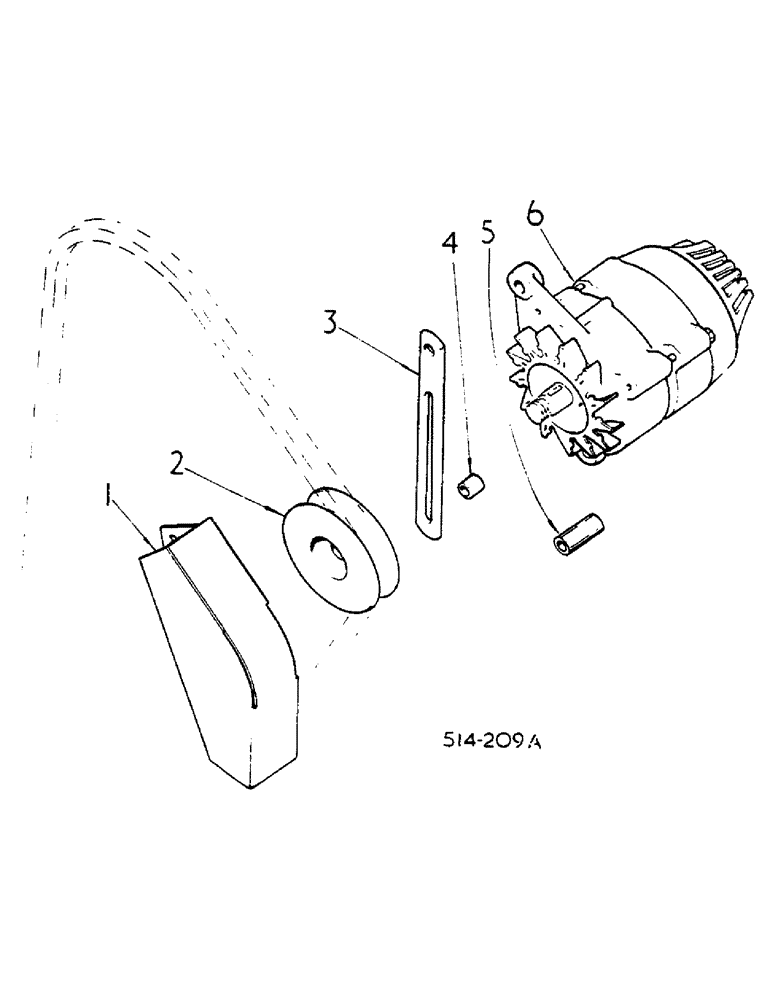

Схема запчастей Case IH 584 - (08-010) - ALTERNATOR AND CONNECTIONS (06) - ELECTRICAL
3
5
2
4
1
6

Артикул

Название

Примечание

Количество

1

3120852R2

SHIELD, ALTERNATOR

1шт.

2

3113672R1

PULLEY

ALTERNATOR

1шт.

3

3113336R1

BRACE

ALTERNATOR, LUCAS ALTERNATORS

1шт.

3

3129076R1

CLIP

BRACE, ALTERNATOR, AC DELCO ALTERNATORS, INCLUDES SCREWS AND WASHERS

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

SCREW M8 X 20 PLN MACH

1шт.

103320

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X 065

1шт.

4

U13039

SPACER

ALTERNATOR BRACE

1шт.

4

190123

HOSE

SPACER, ALTERNATOR BRACE, OPTIONAL, INCLUDES BOLTS

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

Alternator Brace

1шт.

273888

SPRING

BOLT, ALTERNATOR BRACE, OPTIONAL

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

For use w/ spacer 894870H1

1шт.

5

3113678R1

SPACER

ALTERNATOR MOUTNING

1шт.

6

3129581R91

ALTERNATOR, LUCAS 18 ACR LESS FAN, LUCAS NO 23765, INCLUDES BOLTS, BOX ASSY, BRACKET, SRE BRACKET, CAPACITOR, COVER, RECTIFIER ASSY, KITS, RECTIFIER, REGULATOR, RING, ROTOR ASSY, BRUSH SET AND STATOR

1шт.

3116095R1

BOLT

FIXING

3шт.

3116094R91

BRUSH HOLDER

HOLDER, BRUSH BOX ASSY

1шт.

3116089R91

BRACKET

1шт.

3116092R1

BRACKET

S R E

1шт.

3125297R1

CAPACITOR

1шт.

3116086R1

COVER

1шт.

231-1446

NUT,3/8" - 16, Gr 5

Rectifier Assy

1шт.

1502048C91

KIT, ALTERNATOR REPA

D/E BEARING

1шт.

1502049C91

KIT, ALTERNATOR REPA

S R E BEARING

1шт.

3116090R91

KIT

SPARE PART SUNDRY PARTS

1шт.

3116080R1

PIPE

RECTIFIER

1шт.

1502053C1

REGULATOR

1шт.

1502054C1

RING

SLIP

1шт.

3125133R91

ROTOR ASSY.

1шт.

1502051C1

SET

BRUSH

1шт.

1502050C1

STATOR

1шт.

6

1500560C91

ALTERNAOR, LUCAS 18 ACR W/FAN AND PULLEY

1шт.

6

1500541C91

ALTERNATOR

MOTOROLA W/PULLEY

1шт.

6

92293C1R

REMAN-ALTERNATOR

Reman For New PN 1500541C91

1шт.

6

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

6

NS

NOT SERVICED

ALTERNATOR, LUCAS 18 ACR W/FAN, LUCAS NO 54021461, SERVICE PARTS ARE AS 3129851R91 EXCEPT AS SHOWN, INCLUDES FAN, REGULATOR, STATOR, BOLTS AND WASHERS

1шт.

1502055C1

FAN

1шт.

3116087R2

REGULATOR

1шт.

3125134R1

STATOR

SPARE PART

1шт.

272392

NUT,Hex, 5/16" - 18 x 4 3/4", Gr 5

5/16 X 4-3/4 HEX HD

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X 065

1шт.

Выбрано товаров: 41
