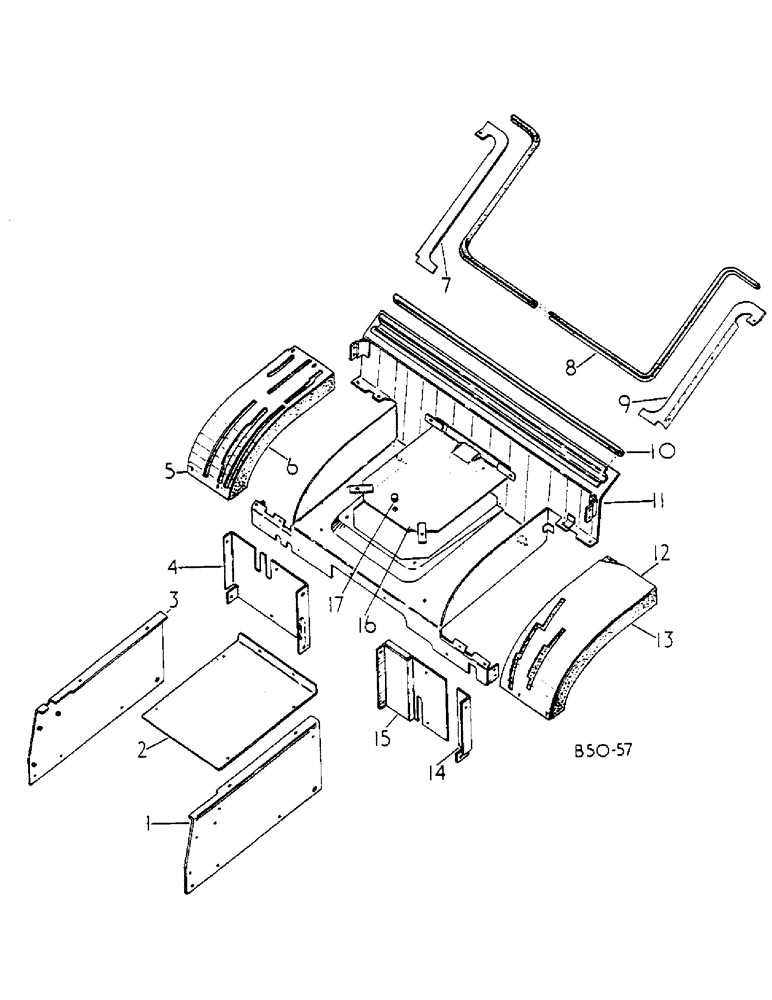

Запчасти Case IH 584 (13-010) - REAR PANELS, 584, MACHINES FITTED WITH CAB (05) - SUPERSTRUCTURE

1

3116174R2

PLATE

ASSY, TRANS SIDE - L H, INCLUDES NUTS, SCREWS AND WASHERS

1шт.

311299R1

NUT INSERT 1/4-20

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

103319

LOCK WASHER,1/4"

Plate to steering support

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

Plate to platforms

4шт.

2

3116183R1

PLATE

TRANS COVER, INCLUDES SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

103319

LOCK WASHER,1/4"

Plate to side plates, Plate to seat platform

6шт.

3

3116176R1

PLATE ASSY.

SPARE PART TRANS SIDE - R H, INCLUDES NUTS, SCREWS AND WASHERS

1шт.

3112992R1

NUT

INSERT 1/4-20

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

103319

LOCK WASHER,1/4"

Plate to steering support

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

Plate to platforms

4шт.

4

3116171R1

CHANNEL

REAR - R H, INCLUDES SCREWS, WASHERS AND NUT

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

103319

LOCK WASHER,1/4"

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

CHANNEL TO SEAT PLATFORM, CHANNEL TO SIDE PLATES, CHANNEL TO PLATFORMS

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

103319

LOCK WASHER,1/4"

1шт.

109094

1/4-20 HEX, CHANNEL TO FENDER

1шт.

5

3116173R3

HOUSING

ASSY, HITCH CONTROL, STANDARD MACHINES

1шт.

5

3121582R2

HOUSING

ASSY, HITCH CONTROL, 4-WHEEL DRIVE, INCLUDES SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

6

3116807R3

INSULATOR

HITCH CONTROL HOUSING, STANDARD MACHINES

1шт.

6

3121583R2

INSULATOR

HITCH CONTROL HOUSING, 4-WHEEL DRIVE

1шт.

7

3118650R2

SUPPORT

SEAL - R H, INCLUDES SCREWS, NUTS AND WASHERS

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

8

SEAL, LOWER 865MM

1шт.

8

3118678R1

SEAL

LOWER -BULK LENGTH 150 FT

1шт.

9

3118649R2

SUPPORT

SEAL - L H, INCLUDES SCREWS, NUTS AND WASHERS

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

10

SEAL, UPPER 1872MM

1шт.

10

3118678R1

SEAL

UPPER -BULK LENGTH 150 FT

1шт.

11

3116157R2

PLATFORM

CPTE, SEAT, INCLUDES NUTS, SCREWS AND WASHERS

1шт.

3118843R1

NUT

INSERT 1/4-20

16шт.

3112951R1

NUT

INSERT 5/16-18

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

8шт.

120392

WASHER,1/4", SAE

8шт.

12

3116165R2

HOUSING

CPTE, TRANS SHIFT PATTERN, SYNCHROMESH TRACTORS

1шт.

12

3116923R1

HOUSING

CPTE, TRANS SHIFT PATTERN, FORWARD AND REVERSE, INCLUDES SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

13

3116803R1

INSULATOR

TRANS SHIFT PATTERN HOUSING

1шт.

14

3116810R1

CHANNEL

REAR VERTICAL OUTER - L H, INCLUDES SCREWS, WASHERS AND NUT

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

CHANNEL TO PLATFORM

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

Rear channel to fender

1шт.

15

3116927R2

CHANNEL

VERTICAL INNER - L H, INCLUDES SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

Rear channel to seat platform, Rear channel to side plate, Rear channel to platforms

4шт.

16

3116161R1

PLATE

SPARE PART CPTE, HOUSING COVER, INCLUDES SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

17

538239R1

PLUG

GROMMET, HOUSING COVER PLATE

1шт.

3125820R1

SLEEVE

PVC, FOR USE W/PLATFORM CPTE SEAT, NOT ILLUSTRATED

4шт.
