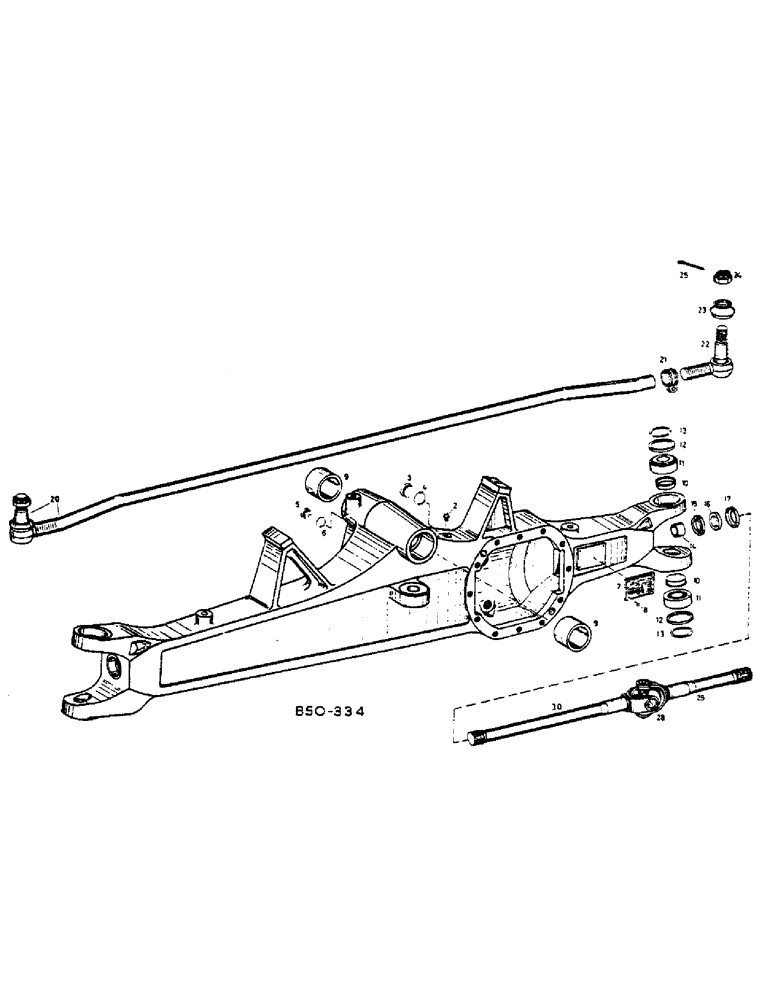

Запчасти Case IH 584 (07-129) - AXLE HOUSING UNIVERSAL SHAFT, 4-WHEEL DRIVE (04) - Drive Train

1500229C91

4WD AXLE ASSY

FRONT, W/SELF-LOCK DIFF

1шт.

3219939R91

4WD AXLE ASSY

FRONT, Z F APL 1351, INCLUDES BOLTS

1шт.

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16-14 X 1-1/4 PHC HEX HD

4шт.

1

HOUSING, AXLE

1шт.

2

898138H1

BREATHER

1шт.

3

933799R1

PLUG,Hex Soc, M24 x 1.5

1шт.

4

933709

RING SEAL 24 X 29

3шт.

5

3216584R1

PLUG

M18 X 1 5

1шт.

6

933222R1

SEALING WASHER,M18 x 22 x 1.5

3шт.

7

PLATE, IDENTIFICATION

1шт.

8

PIN

4шт.

9

BUSHING

2шт.

10

3147245R1

PLUG

COVER

4шт.

11

3147241R1

BEARING, CUP

4шт.

11

3147242R91

ROLLER BEARING

CONE

4шт.

12

3147243R1

CUP WASHER

4шт.

13

3147244R1

O-RING

4шт.

14

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

4шт.

15

3226006R1

OIL SEAL

4шт.

16

3226009R1

SEALING RING

FELT

4шт.

17

3226008R1

HOLDER

4шт.

18

NOT USED

1шт.

19

NOT USED

1шт.

20

1502268C1

TIE-ROD

TIE ROD ASSY

1шт.

21

CLIP ASSY, PART OF ITEM 20

1шт.

22

1502269C1

BALL JOINT

INCLUDES NUTS

2шт.

NUT, LOCK

2шт.

23

GASKET ASSY, PART OF ITEM 22

1шт.

24

NUT, CASTLE

2шт.

25

PIN SPLIT 4 X 40 MM

2шт.

26

NOT USED

1шт.

27

NOT USED

1шт.

28

3230277R1

SPIDER ASSY.

W/BEARING, INCLUDES RINGS

2шт.

3223197R1

RING, SNAP

RING SNAP RETAINING J 27 X 1 3

8шт.

29

3216599R91

SHAFT

HUB

2шт.

30

1502267C1

SHAFT

R H

1шт.

30

1502265C1

DRIVE SHAFT

L H

1шт.
