Запчасти Case IH 570 (234) - 3 1/4" X 8" REMOTE HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS

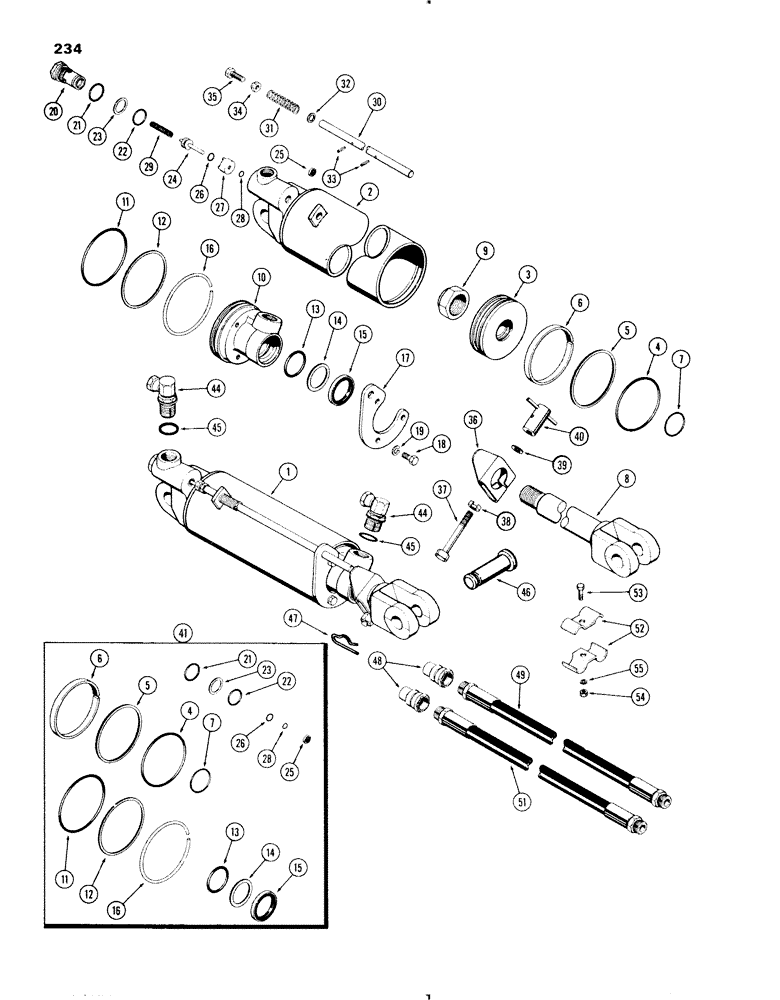

Схема запчастей Case IH 570 - (234) - 3 1/4" X 8" REMOTE HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS
3
25
2
40
44
21
31
45
49
25
27
15
6
48
41
19
16
36
30
46
55
23
8
4
51
1
7
45
18
52
21
44
26
16
32
14
23
37
33
26
7
5
5
13
54
18
39
23
28
38
4
12
22
53
17
9
11
28
20
12
35
24
34
13
47
29
15
14
6
11

Артикул

Название

Примечание

Количество

1

A34922

CYLINDER

ASSY. - hydraulic (3-1/4" x 8") (includes ref. 2 - 40)

1шт.

2

A41348

BODY - cylinder

1шт.

3

A41177

PISTON - cylinder

1шт.

4

A41191

RING

- piston, outer (3-1/4" I.D. x 5/32" Teflon)

1шт.

5

A41185

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - piston, outer (2-7/8" x 3-1/8" x 1/8")

1шт.

6

A41183

RING - wear, piston

1шт.

7

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

"O" RING - piston, inner (1-1/4 x 1-1/2 x 1/8")

1шт.

8

A41179

ROD - piston

1шт.

9

A41189

LOCK NUT

NUT - piston, retaining (1"-14)

1шт.

10

A41180

BEARING

- cylinder

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - bearing, outer (3 x 3-1/4 x 1/8")

1шт.

12

A41188

RING

- "O" ring back-up

1шт.

13

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - bearing, inner (1-1/4 x 1-1/2 x 1/8")

1шт.

14

T22277

OIL SEAL

RING - "O" ring back-up

1шт.

15

A41176

X

SEAL - oil, bearing (1-1/4 x 1-1/2 x 1/4")

1шт.

16

A41186

RING, LOCKING

RING - lock, bearing

1шт.

17

A41182

PLATE - cylinder end

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

End plate Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

A41351

PLUG - cylinder end & valve plunger body

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - plug (7/8 x 1-1/16 x 3/32")

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - plug (11/16 x 7/8 x 3/32")

1шт.

23

A41346

RING

- back-up

1шт.

24

A41430

PLUNGER

- valve

1шт.

25

A41175

WIPER

- valve plunger (3/16 x 1/2 x 1/8")

1шт.

26

A41147

X

"O" RING - plunger (3/16 x 3/8 x 3/32")

1шт.

27

A41429

SPACER

- valve

1шт.

28

A41160

INSERT

"O" RING - valve (23/64 x 9/16 x 3/32")

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- push

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- push rod spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, , Push rod 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - push rod (5/16"-18)

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Stop adjusting Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

36

A41349

STOP

- cylinder limit clamp

1шт.

37

114-219

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

- stop clamp (3/8 x 2-1/2" N.F. hex hd.)

1шт.

38

A41352

LOCK WASHER

LOCK - stop clamp bolt

1шт.

39

A41353

WASHER

- clamp bolt (1/2 x 7/8 x 1/16")

1шт.

40

A41167

LOCK NUT

NUT - clamp bolt (3/8"-24)

1шт.

41

A41347

SEAL,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

KIT - cylinder (Includes Ref. 4, 5, 6, 7, 11, 12, 13, 14, 15, 16, 21, 22, 23, 25, 26 & 28)

1шт.

44

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - adapter (90 deg.) (includes ref. 45)

2шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

46

A27347

PIN

- yoke

2шт.

47

A29054

HAIR PIN COTTER

- cotter, yoke pin

2шт.

48

A28541

COUPLING, BREAK AWAY

PLUG ASSY. - coupling (For Repairs See Page 231)

2шт.

49

A20816

HOSE

- socket to cylinder (106")

1шт.

51

A20817

HOSE

- socket to cylinder (118")

1шт.

52

A27440

CLAMP

- hose

2шт.

53

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" N.C.)

1шт.

55

92-5

LOCK WASHER,5/16"

1шт.

Выбрано товаров: 52
