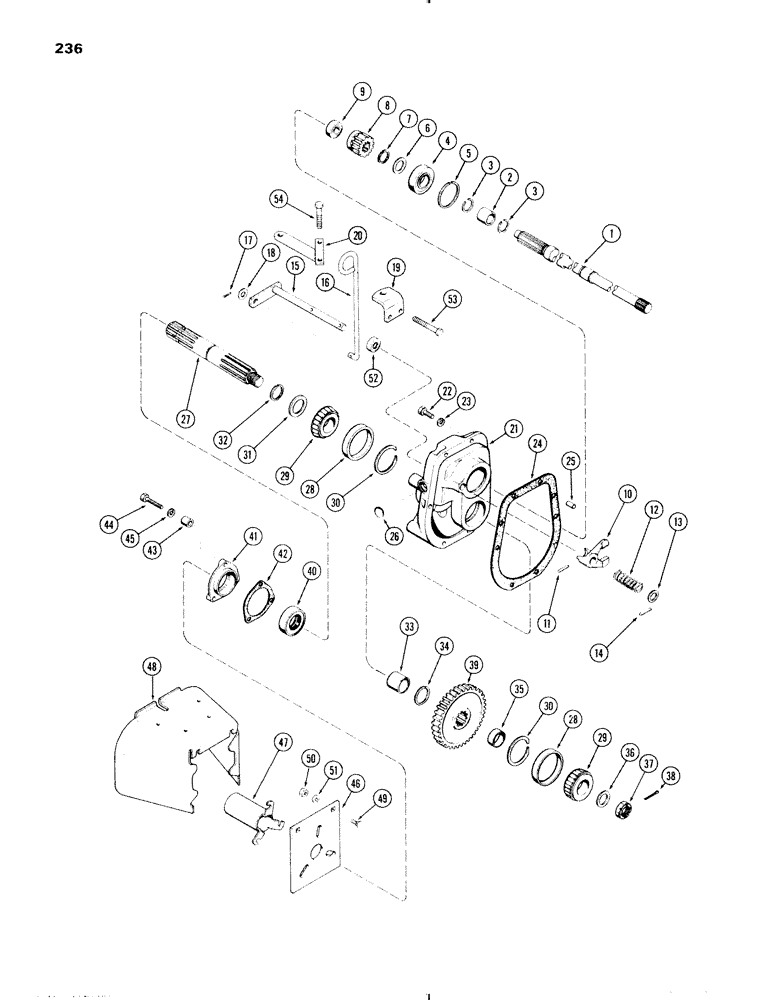

Запчасти Case IH 570 (236) - STANDARD P.T.O. (06) - POWER TRAIN

1

A38288

SHAFT

ASSY. - P.T.O. drive (includes ref. 2 & 3)

1шт.

2

A38287

RACE

- needle bearing

1шт.

3

A37643

SNAP RING,#102, .962", Ext

RING - snap, bearing

2шт.

4

G10624

BALL BEARING

BEARING - front, drive shaft

1шт.

5

A30091

RING, SNAP

RING - snap, bearing

1шт.

6

B18275

WASHER

- retainer, front bearing

1шт.

7

F62095

RING, SNAP

RING - snap, drive shaft

1шт.

8

G10675

GEAR

- drive, P.T.O.

1шт.

9

G10623

BALL BEARING

BEARING - rear, drive shaft (includes ref. 10)

1шт.

10

A36397

FORK TEDDER

FORK - shift, drive gear

1шт.

11

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, , Shift fork 1/4" x 1 3/8", Slotted

1шт.

12

A30146

SPRING

- throwout, shift fork

1шт.

13

B18080

WASHER

- retainer, spring

1шт.

14

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Spring retainer 3/16" x 1 1/4", Slotted

1шт.

15

G30605

SHAFT ASSY.

SHAFT - shift out

1шт.

16

G10870

ROD - control, P.T.O. shift

1шт.

17

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

195-25

WASHER,3/8"

1шт.

19

A39002

SUPPORT

- control rod (w/hitch)

1шт.

20

A39003

SUPPORT

- control rod (w/no hitch)

1шт.

21

A36887

HOUSING

- P.T.O. drive

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

23

92-6

LOCK WASHER,3/8"

6шт.

24

G10447

GASKET

- housing to trans. case

1шт.

25

G10711

PIN

- dowel, P.T.O. housing

2шт.

26

41-16

PLUG,Exp, 1"

- expansion, housing

1шт.

27

A37644

SHAFT

- P.T.O. output

1шт.

28

G57451

BEARING, CUP

CUP - bearing, P.T.O. shaft

2шт.

29

G57452

ROLLER BEARING

CONE - bearing, P.T.O. shaft

2шт.

30

A27414

RING

- snap, Serial Range: bearing-housing

2шт.

31

A36580

RETAINER

- rear bearing, P.T.O. shaft

1шт.

32

A21619

CIRCLIP

RING - snap, rear, P.T.O. shaft

1шт.

33

G10456

SPACER

- rear, driven gear

1шт.

34

A29969

WASHER

- spring

1шт.

35

A29360

SPACER

- front, driven gear

1шт.

36

195-53

WASHER,1" x 2" x .134"

- plain (1")

1шт.

37

B18305

NUT

- hex (1" N.F. slotted)

1шт.

38

132-52

COTTER PIN,1/8" x 1 1/2"

PIN, Split (Cotter), 1/8" x 1 1/2"

1шт.

39

G10676

GEAR

- driven, P.T.O.

1шт.

40

G13803

OIL SEAL

SEAL - oil, rear, P.T.O. shaft

1шт.

41

A28805

RETAINER

- rear oil seal

1шт.

42

A30037

GASKET

- retainer

1шт.

43

B18083

BUSHING

SPACER - retainer

3шт.

44

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

3шт.

45

92-6

LOCK WASHER,3/8"

3шт.

46

A29087

PLATE

- guard mounting

1шт.

47

A38715

GUARD

GAURD - P.T.O. shaft

1шт.

48

A27335

GUARD

- universal joint

1шт.

49

11-612

BOLT

- (3/8 x 3/4" round head, square neck)

2шт.

50

25-106

NUT,3/8"-16, G5

- hex (2/8" N.C.)

2шт.

51

92-6

LOCK WASHER,3/8"

2шт.

52

A26778

SEAL

- oil, shift shaft

1шт.

53

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex hd. (3/8 x 3" N.C.) (Gr. 5) (w/A39002)

2шт.

54

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(w/A39003) Hex, 3/8"-16 x 2 1/4", G5

2шт.
